KFPS3T

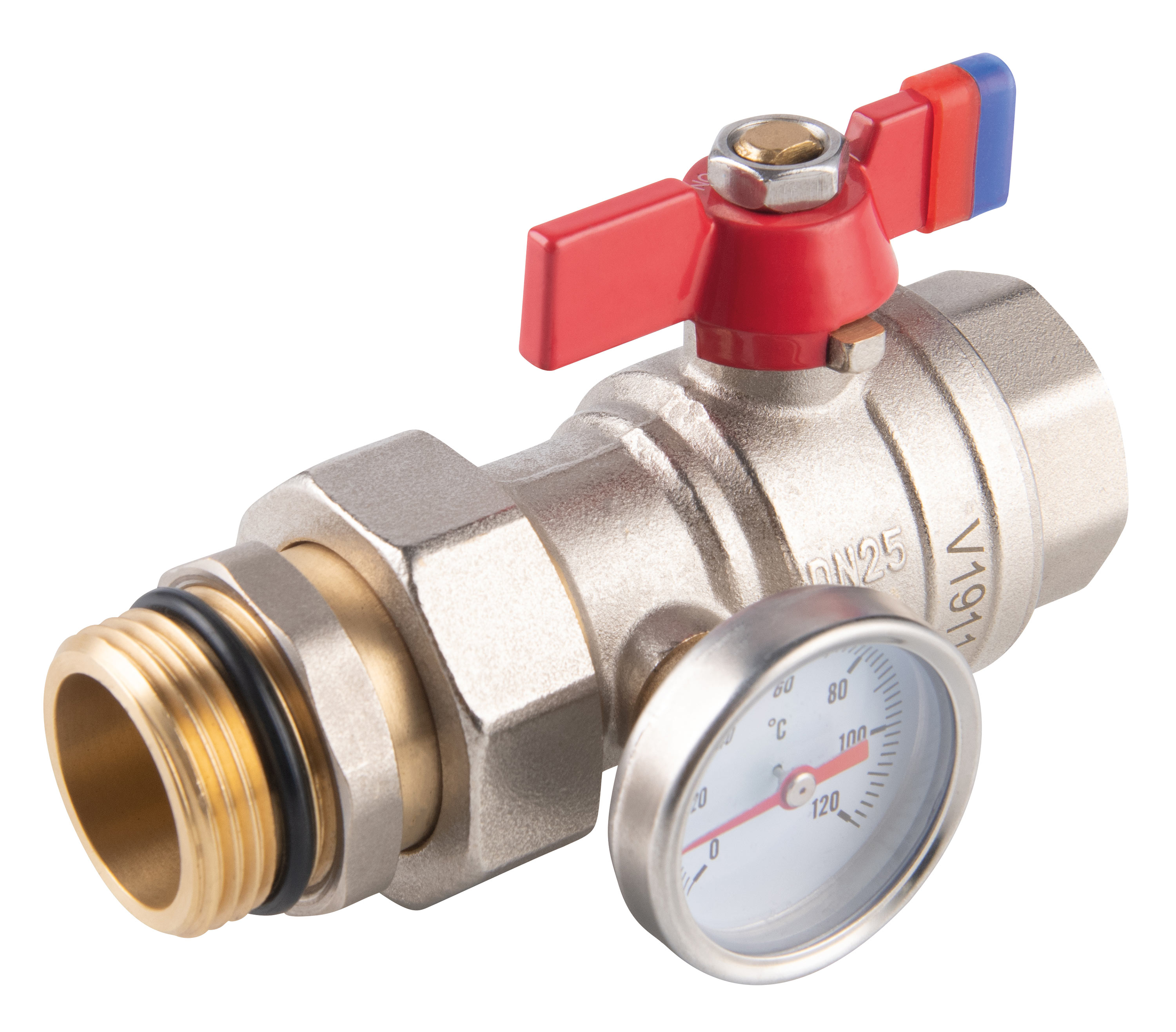

Ball valve with thermometer with union 1" M-F F-Power
-
Additional features:
-
• CW617N-4MS brass - reduced lead and nickel content
<br />• built in thermometer
-

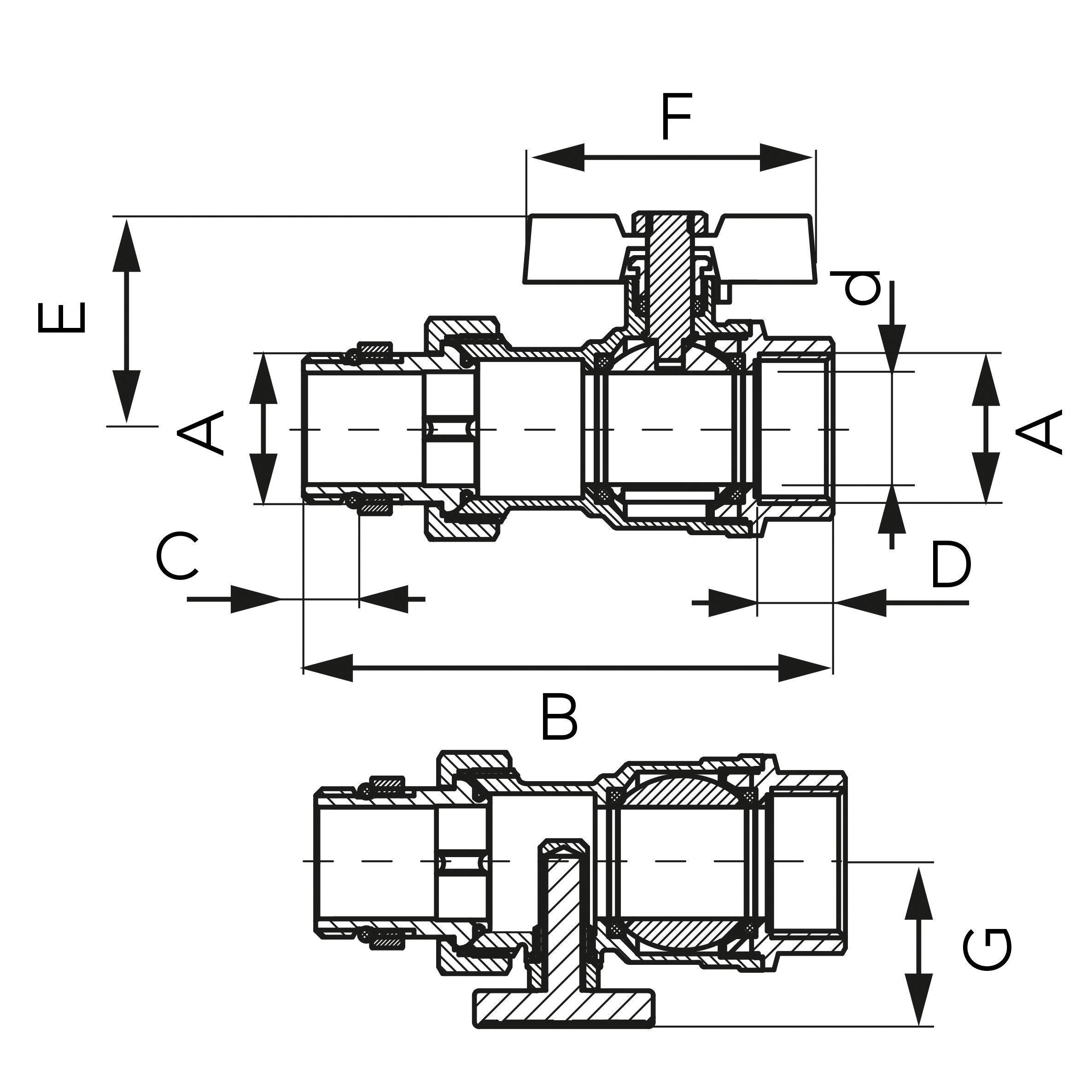

Wymiar B:
-
118.5
-
Connection:
-
1"
-
Nominal pressure [bar]:
-
30
-
Dimension E:
-
47.6
-
Maximum operating pressure [bar]:
-
30
-
Media:
-
- water
- 50% glycol
- compressed air
-
Dimension G:
-
36.6
-
Maximum operating temperature [°C]:
-
120
-
Type of holder:
-
butterfly
-
Body material/assembly material:
-
brass
-
Air vent:
-
no
-
Suction strainer:
-
no
-
Gland:
-
yes
-
DN:
-
25
-
Full bore:
-
no
-
Ball sealing material :
-
PTFE
-
Kvs [m3/h]:
-
19.01
-
Drain nozzle:
-
no
-
Ball valve ball material :
-
brass
-
Dimension d:
-
17.5
-
Connection type:
-
screw in/screw out with screw handle
-
Wymiar C:
-
12.5
-
Dimension F:
-
65
-
Barcode:
-
bar code packaging for retail sale
-
Additional connection seal:
-
additional nut with gasket on mounting thread
-
Dimension A:
-
G1
-
Material of stem seal:
-
PTFE
-
NICKEL FREE:
-
yes
-
For multi-layer pipes:
-
no
Declarations
dp_-f-power_pn30_sprezone_powietrze.pdf
Download File
Certificates and Attests
pzh_b-bk-60110-2050-2025.pdf
Download File
Assembly Instructions
ferro_warranty_manual_f-power_ball_valves.pdf
Download File
