Steel distribution manifold with hydraulic separator, with insulation 1 1/2", 2 circuits
The hydraulic separator with manifold, insulation and mounting kit is a compact central heating component designed to balance two heating circuits and stabilise system operation. It supports installations with a maximum flow rate of 3 m³/h, making it suitable for modern domestic boiler rooms and small commercial systems.

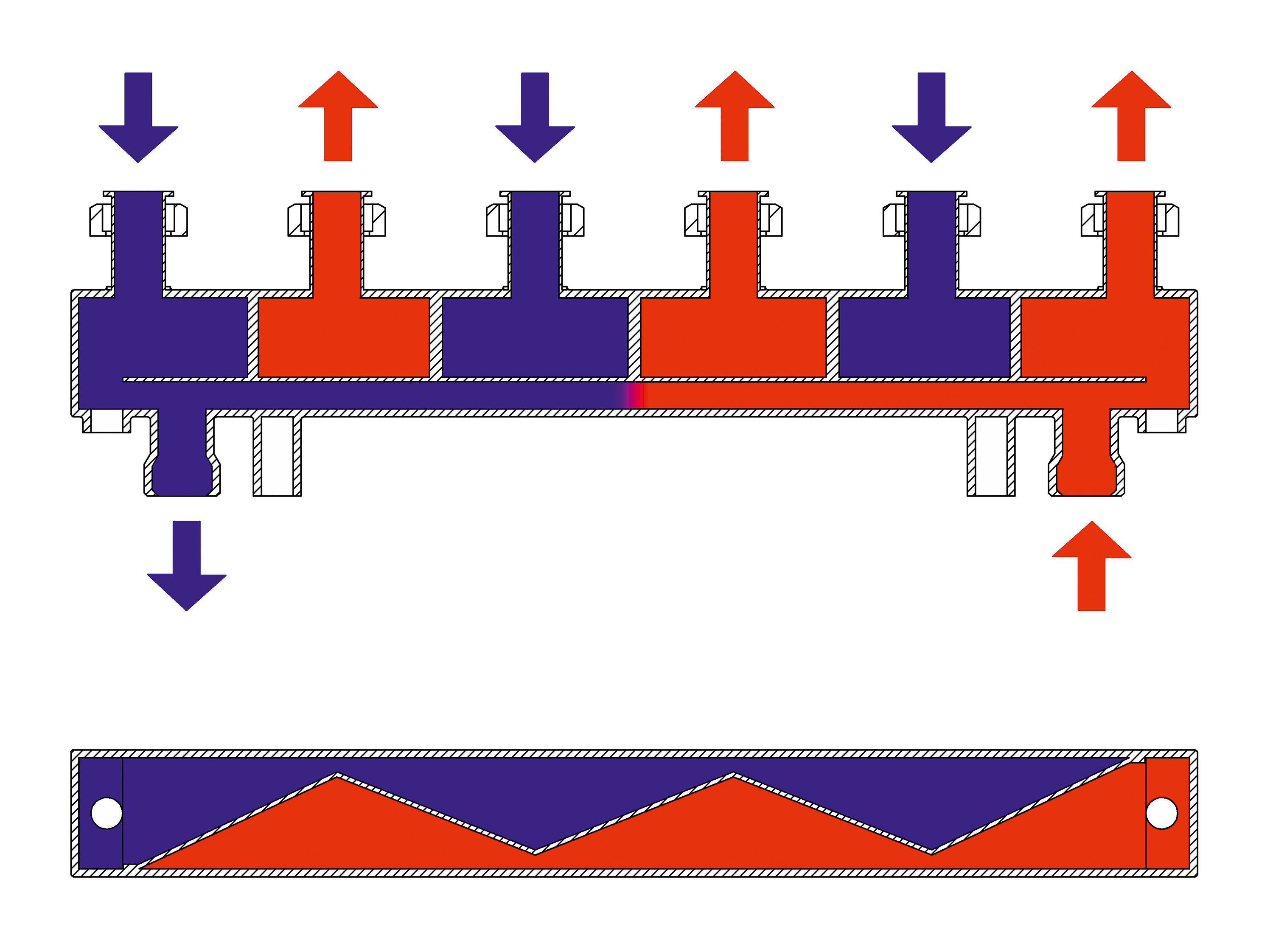

This hydraulic separator for heating systems separates the boiler circuit from the distribution circuit, protecting pumps and components from pressure fluctuations and temperature shocks. Two independent circuits help maintain consistent flow and temperature control, which translates into higher comfort and more efficient use of the heat source.

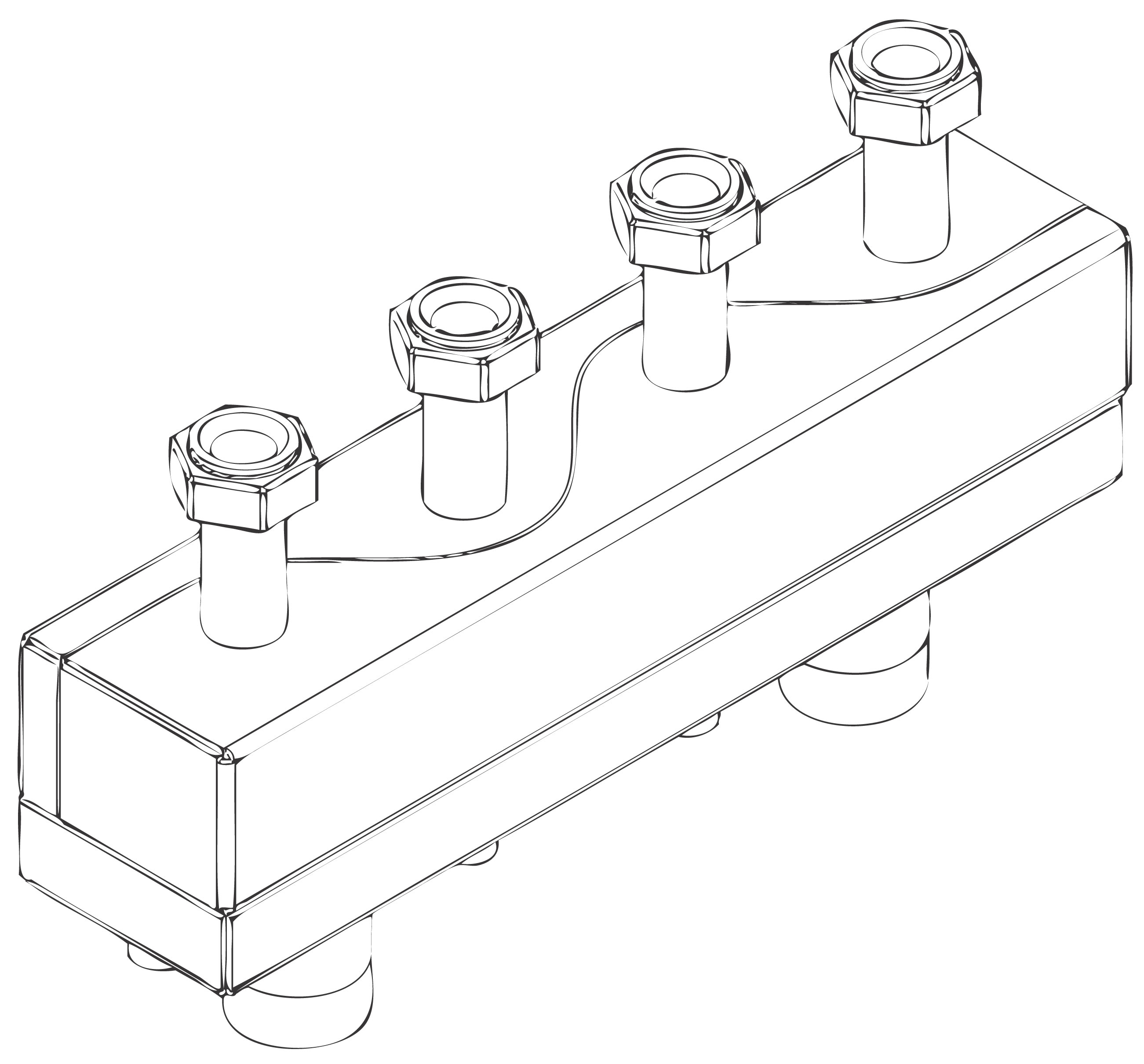

The unit is equipped with a lower G 6/4" male connection for flat gasket sealing and an upper 6/4" swivel connection, so alignment with existing pipework is easier and installation time is reduced. Factory-fitted insulation limits heat loss on the way from the boiler to the heating circuits, and the included mounting kit simplifies secure wall fixing.
The hydraulic separator with manifold is a practical choice for anyone planning a reliable central heating installation with a hydraulic separator, looking for stable operation, easier balancing of circuits and neat organisation of the boiler room.
- Additional features:
- <ul> <li>with insulation</li> <li>with fixing kit</li> <li>movable upper connection 6/4", bottom GZ 6/4" for flat gasket</li> <li>flow 3 m<sup>3</sup>/h</li> </ul>
- Bottom connection:
- GZ 6/4” for a flat gasket
- Upper connection:
- moving 6/4”
