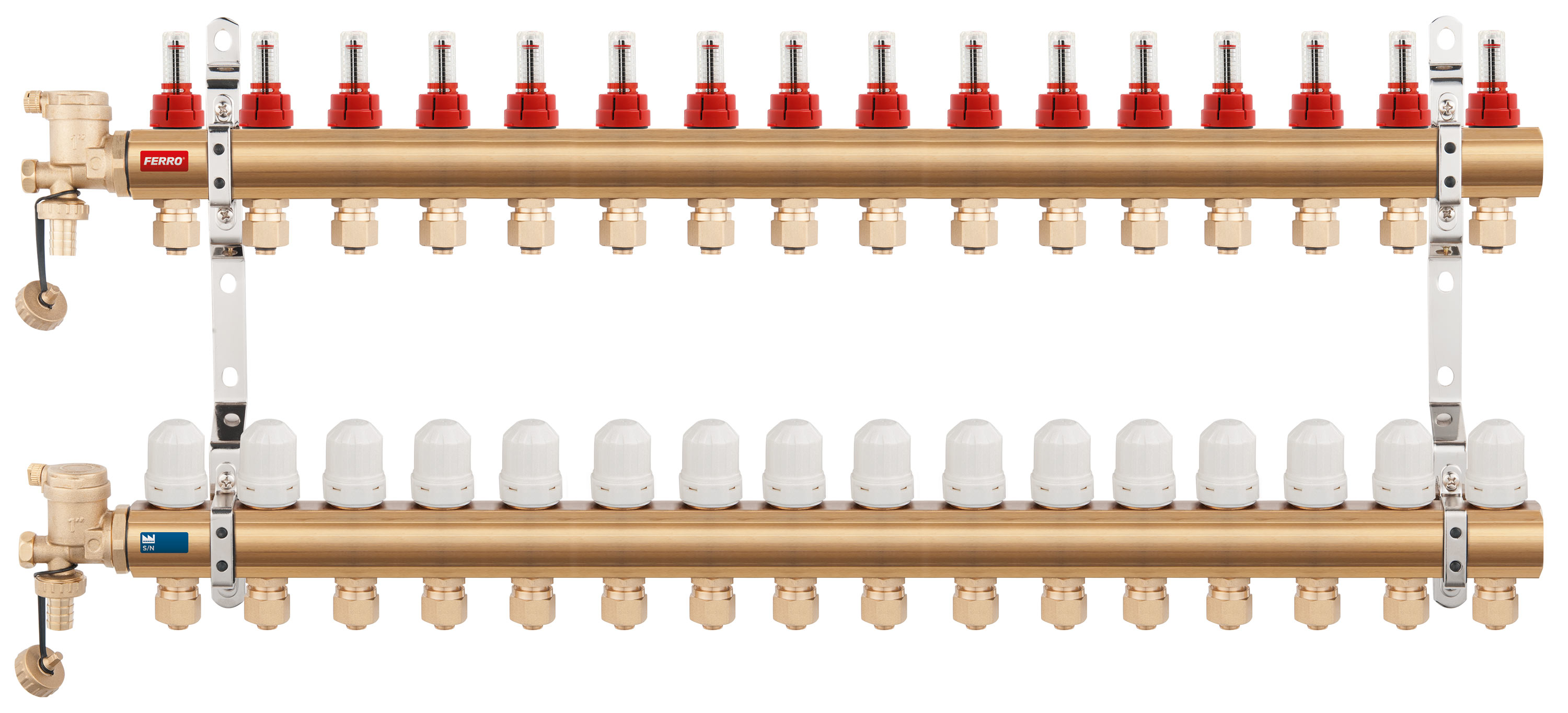

Manifold type N-RZP 13-16 1”

Index: N-RZPxS

Individual packaging: 1

With a barcode for retail sale

Bulk packaginig: -

Utility Valves:
- water
- 50% glycol
15 years warranty
execution: brass CW617N (manifold beams)

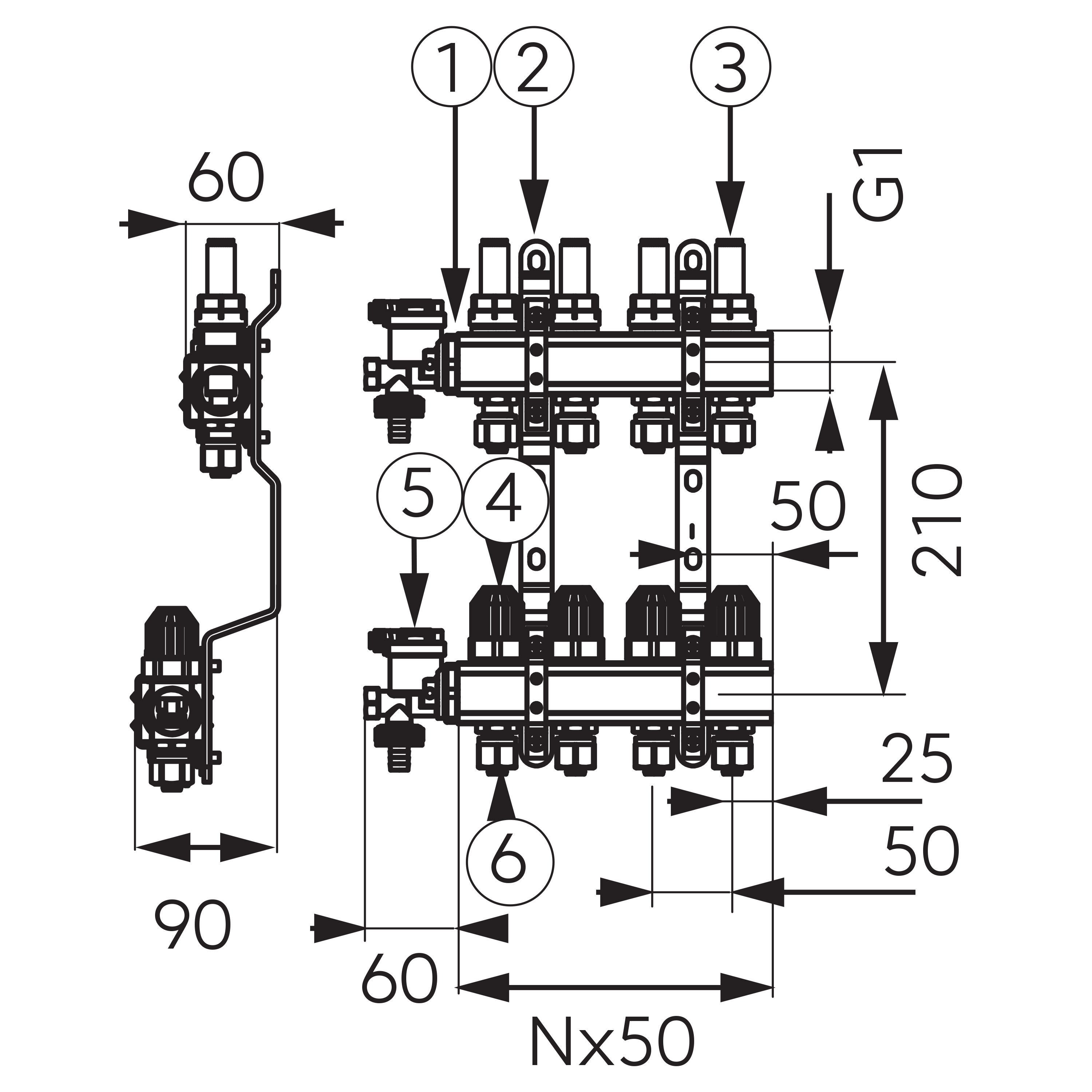

distributor bar 13 – 16 ways, 2 pcs. (1)
set of steel handles (2)
flow meters for regulating flows on the bar supply, range 0-2.5 l/min (3)
thermostatic valves on the return beam equipped with knobs for manual adjustment possibility of connecting a thermoelectric head (4)
G1 air and drain units with automatic air vent and valve drain with a brass hose nozzle, 2 pcs (5)
G1/2 nipples with connectors for 16x2 multilayer pipe mm (6)
