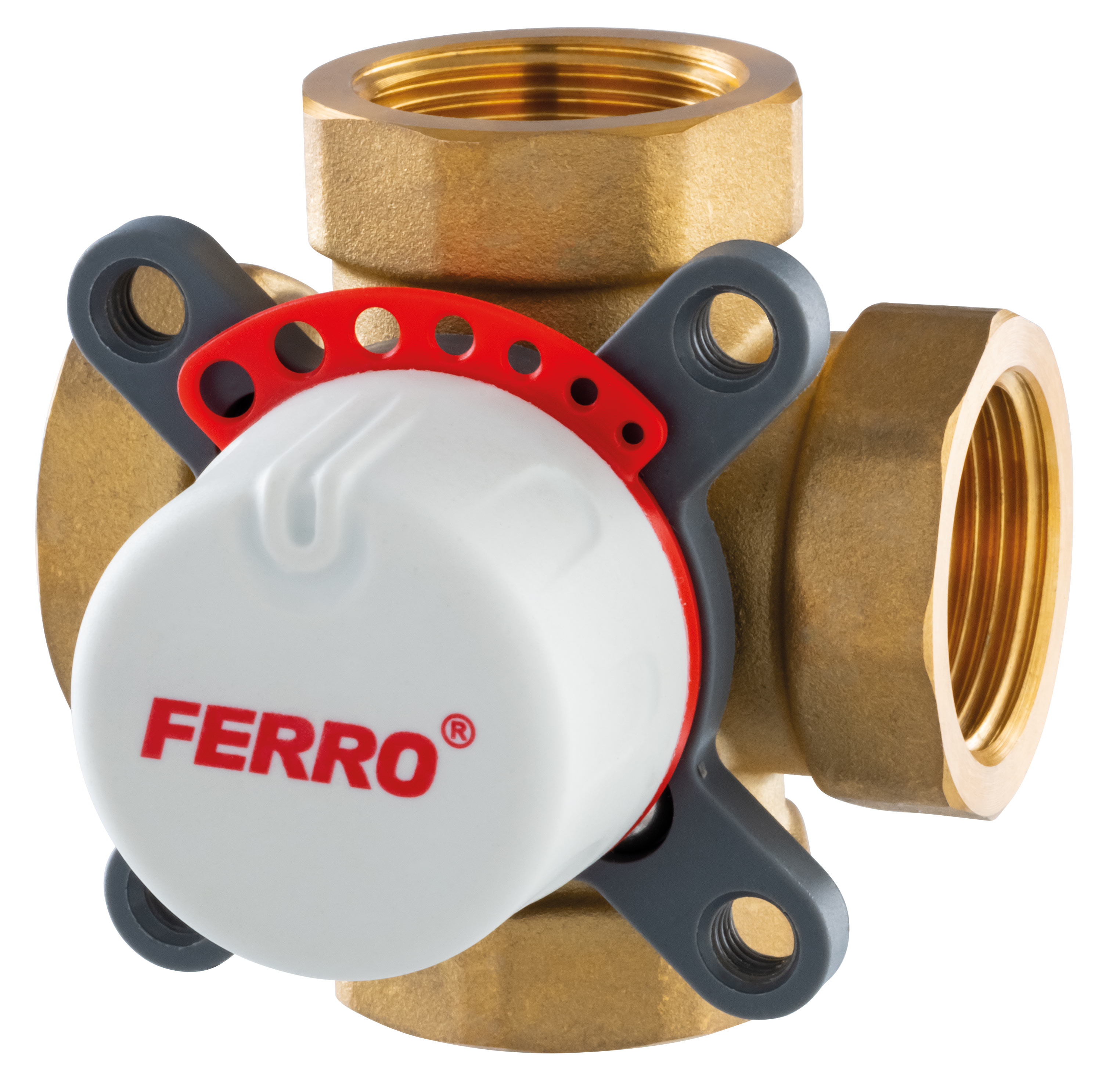

4-way mixing valve

4-way mixing valve

New!

4-way mixing valve

4-way mixing valve

4-way mixing valve

4-way mixing valve

4-way mixing valve

Index: ZMV4x

Opakowanie jednostkowe Individual packaging: 1

With a barcode for retail sale

Download PDF file with card product

  • female
  • handle: plastic knob
  • material of body and rotor: brass
  • material of sealing: EPDM
  • nominal pressure: 1,0 MPa (10 bar)
  • minimum working temperature: -10°C
  • maximum working temperature: 100°C
  • required torque: < 1 Nm

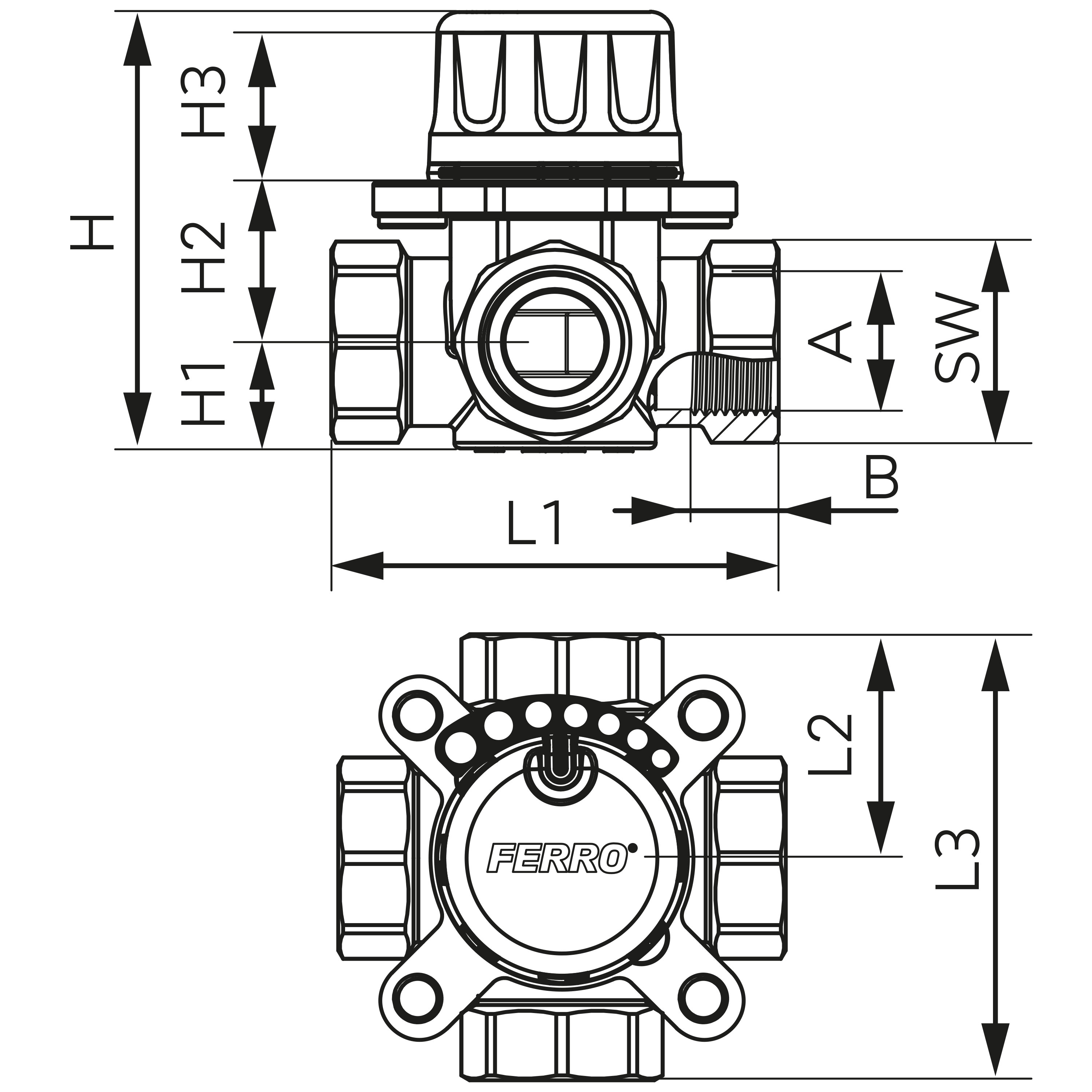

Index DN A B [mm] L1 [mm] L2 [mm] L3 [mm] H [mm] H1 [mm] H2 [mm] H3 [mm] SW [mm] Kvs [m3/h] Individ. pack. Bulk pack.
ZMV42 25 Rp 1 21 80 40 80 78 19 28,5 28 42 11,2 1 12
ZMV43 32 Rp11/4 21 90 45 90 78 23 32,5 28 49 17,1 1 9
