3-way mixing valve

New!

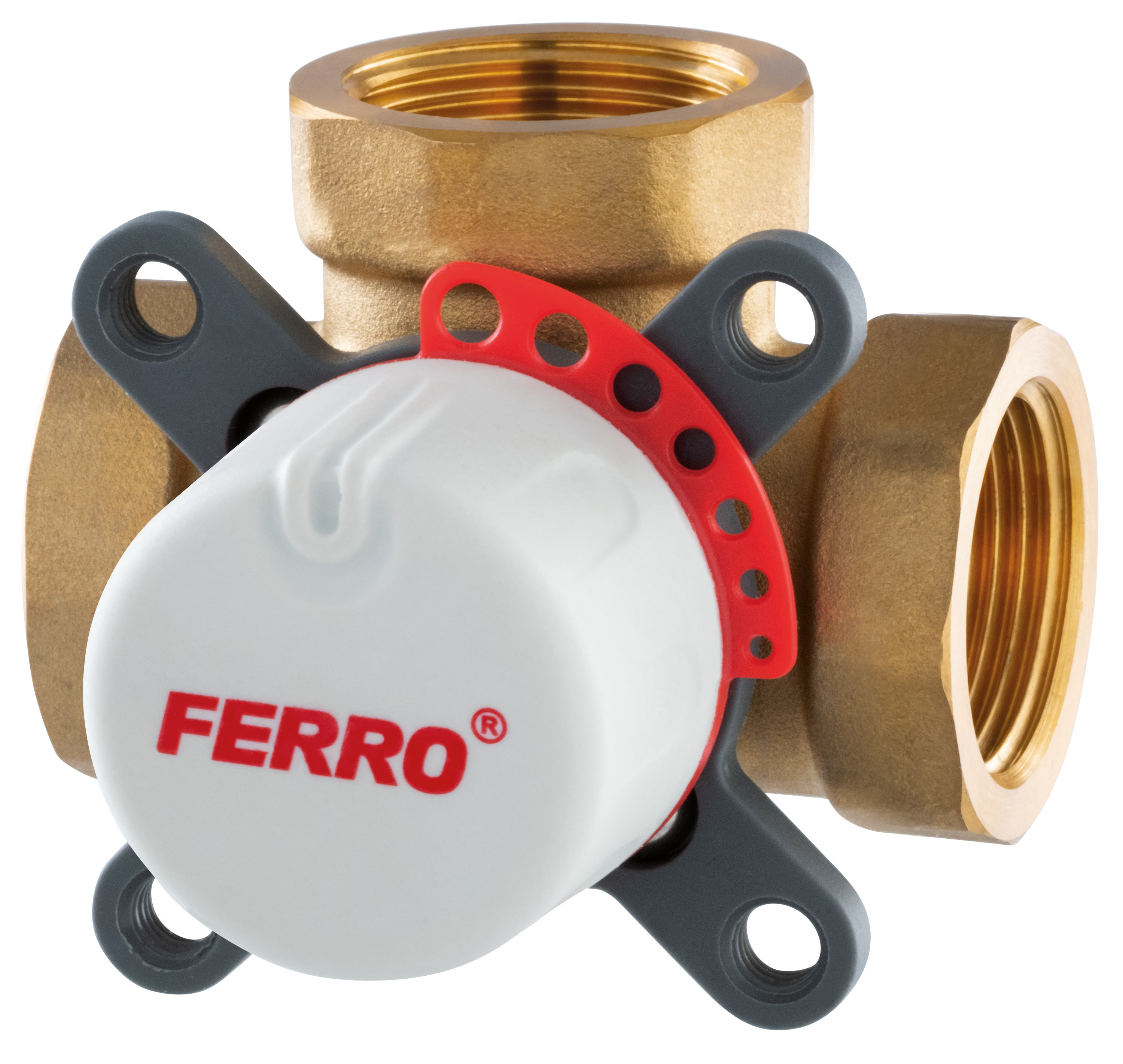

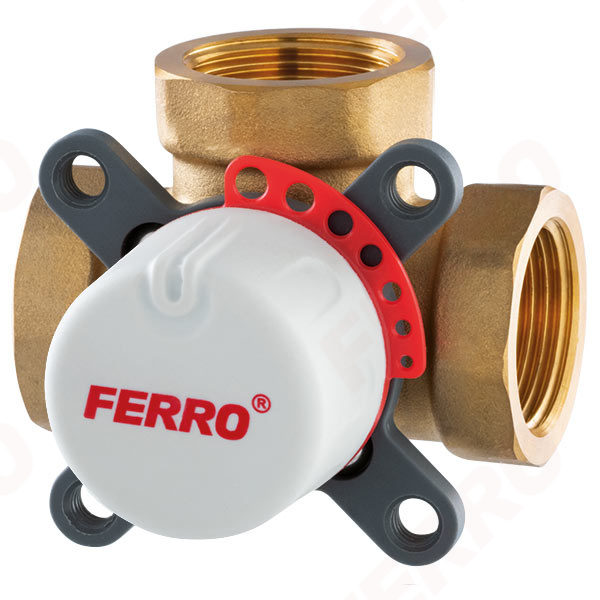

3-way mixing valve

3-way mixing valve

3-way mixing valve

Index: ZMV3x

Individual packaging: 1

With a barcode for retail sale

Download PDF file with card product

female
handle: plastic knob
material of body and rotor: brass
material of sealing: EPDM
nominal pressure: 1,0 MPa (10 bar)
minimum working temperature: -10°C
maximum working temperature: 100°C
required torque: < 1 Nm

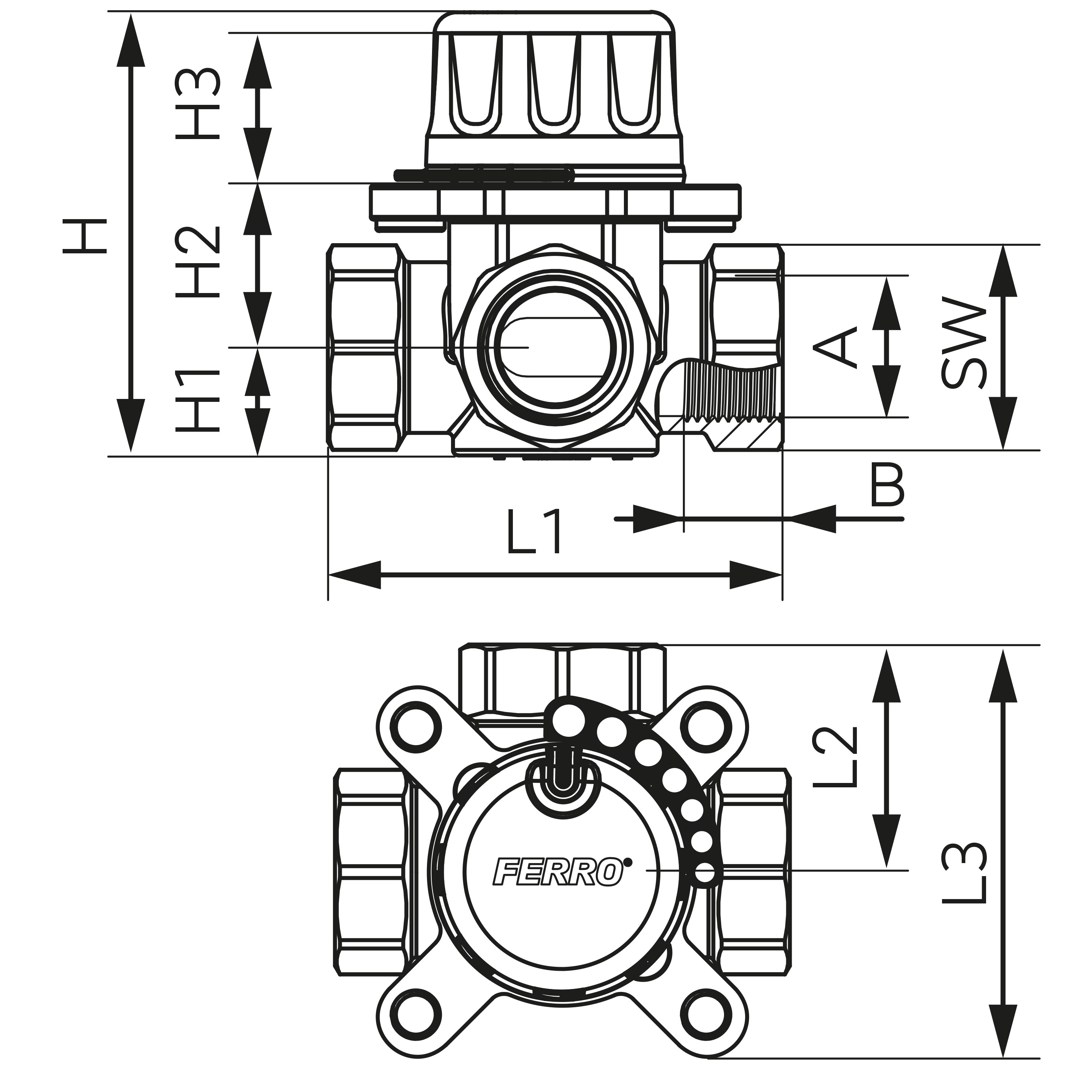

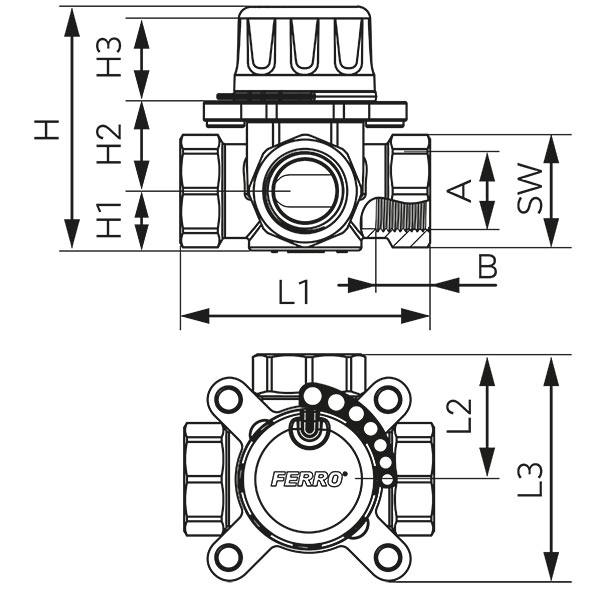

Index	DN	A	B [mm]	L1 [mm]	L2 [mm]	L3 [mm]	H [mm]	H1 [mm]	H2 [mm]	H3 [mm]	SW [mm]	Kvs [m³/h]	Individ. pack.	Bulk pack.
ZMV32	25	Rp 1	21	80	40	72,5	78	19	28,5	28	42	9,9	1	12
ZMV33	32	Rp11/4	21	90	45	77,5	86	23	32,5	28	49	15,6	1	12
ZMV34	40	Rp11/2	26	115	57,5	88,5	97,5	28	39	28	55	21,5	1	9
ZMV35	50	Rp2	22,5	125	62,5	93,5	97,5	28	39	28	66	36,2	1	9
