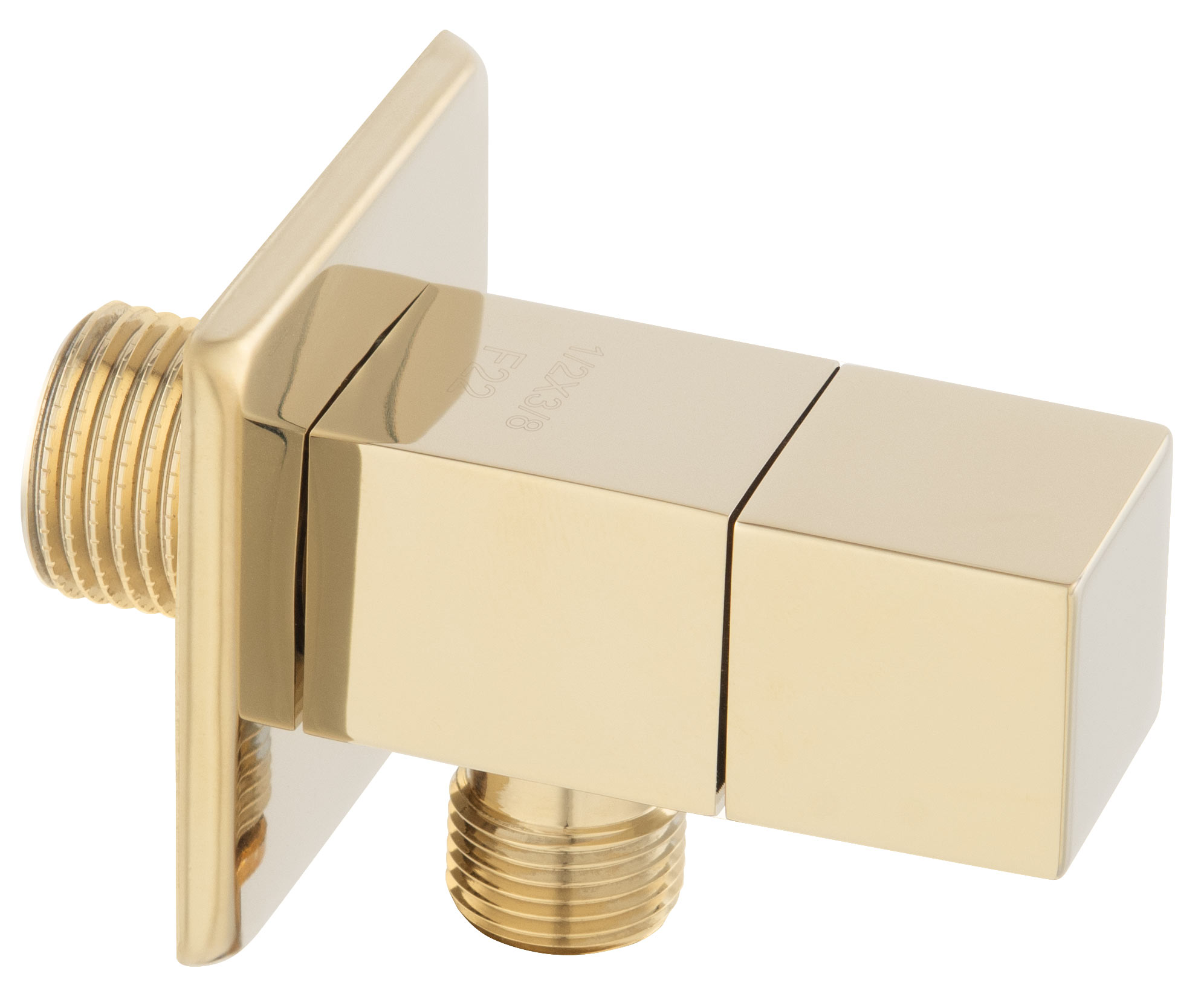

Angle valve with ceramic head and rosette

Angle valve with ceramic head and rosette

Angle valve with ceramic head and rosette

Index: Z29x-G

Download PDF file with card product

ceramic head
no contact of flowing water with paint finish
the valve body doesn’t scratch the rosette during installation
nominal pressure: 1,0 MPa (10 bar)
max. working temperature: 100°C
finish: gold, PVD coating

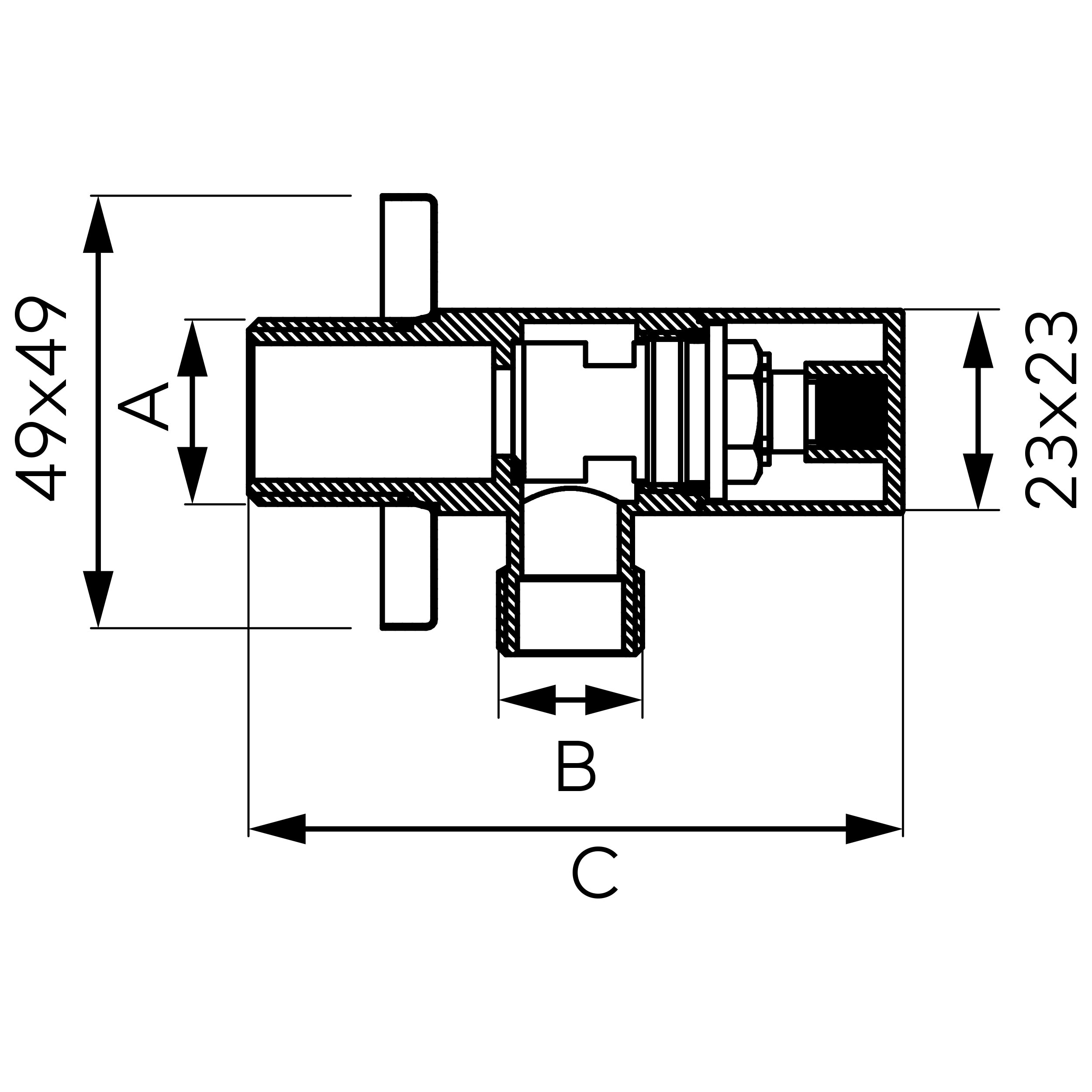

Index	A	B	C [mm]	Connection dimensions
Z293-G	1/2”	3/8”	75	1/2”x3/8”
Z294-G	1/2”	1/2”	75	1/2”x1/2”
