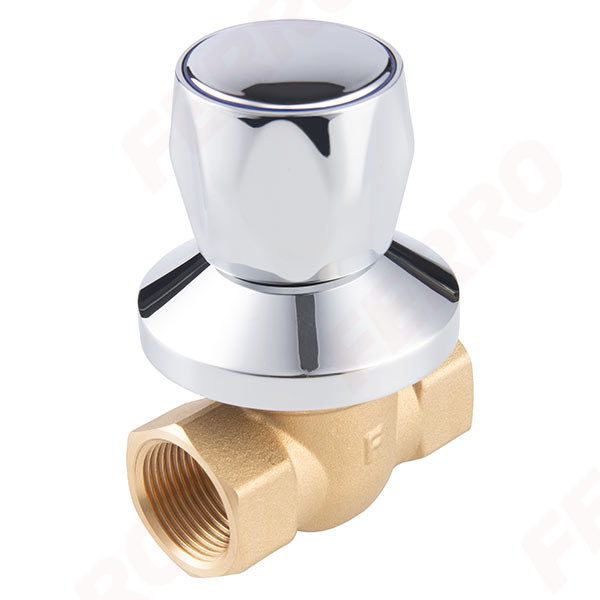

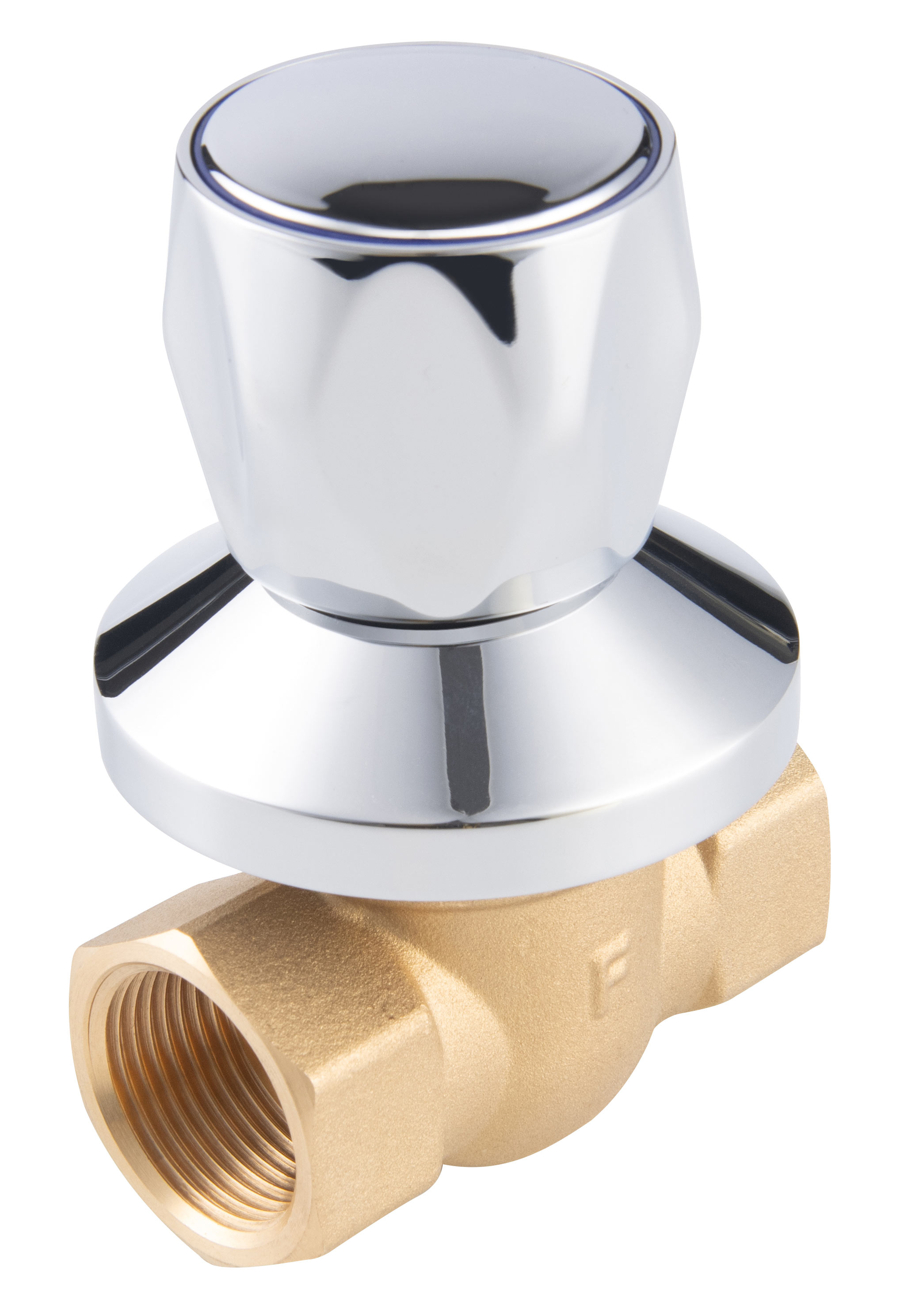

F-Power - concealed ball valve

F-Power - concealed ball valve

F-Power - concealed ball valve

Code: KFPxP

Download PDF file with card product

warranty: 10 years
application: water, glycol 50%, compressed air
female-female
full bore
with knob and rosette
red and blue indication cap included
body and ball material: brass
material of ball and stem seals: PTFE
material of stem seals: EPDM (3 pcs. o-ring)
nominal pressure: 16 bar (PN16)
maximum working temperature: 120°C
NICKEL FREE - inner surfaces are not nickel-plated
CW617N-4MS brass - reduced lead and nickel content

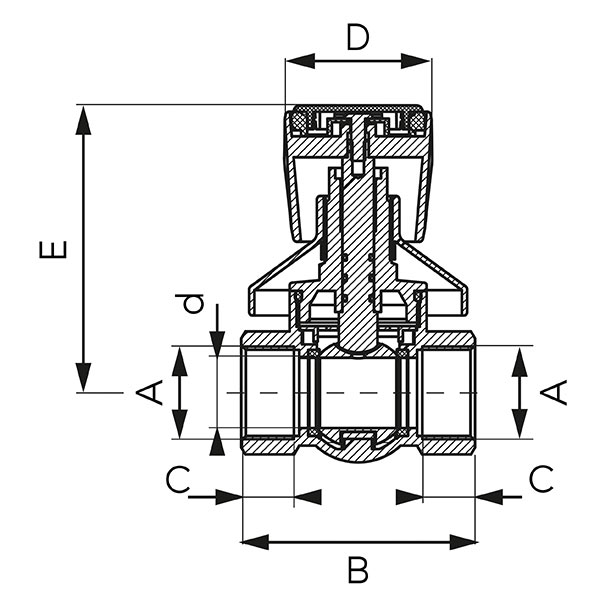

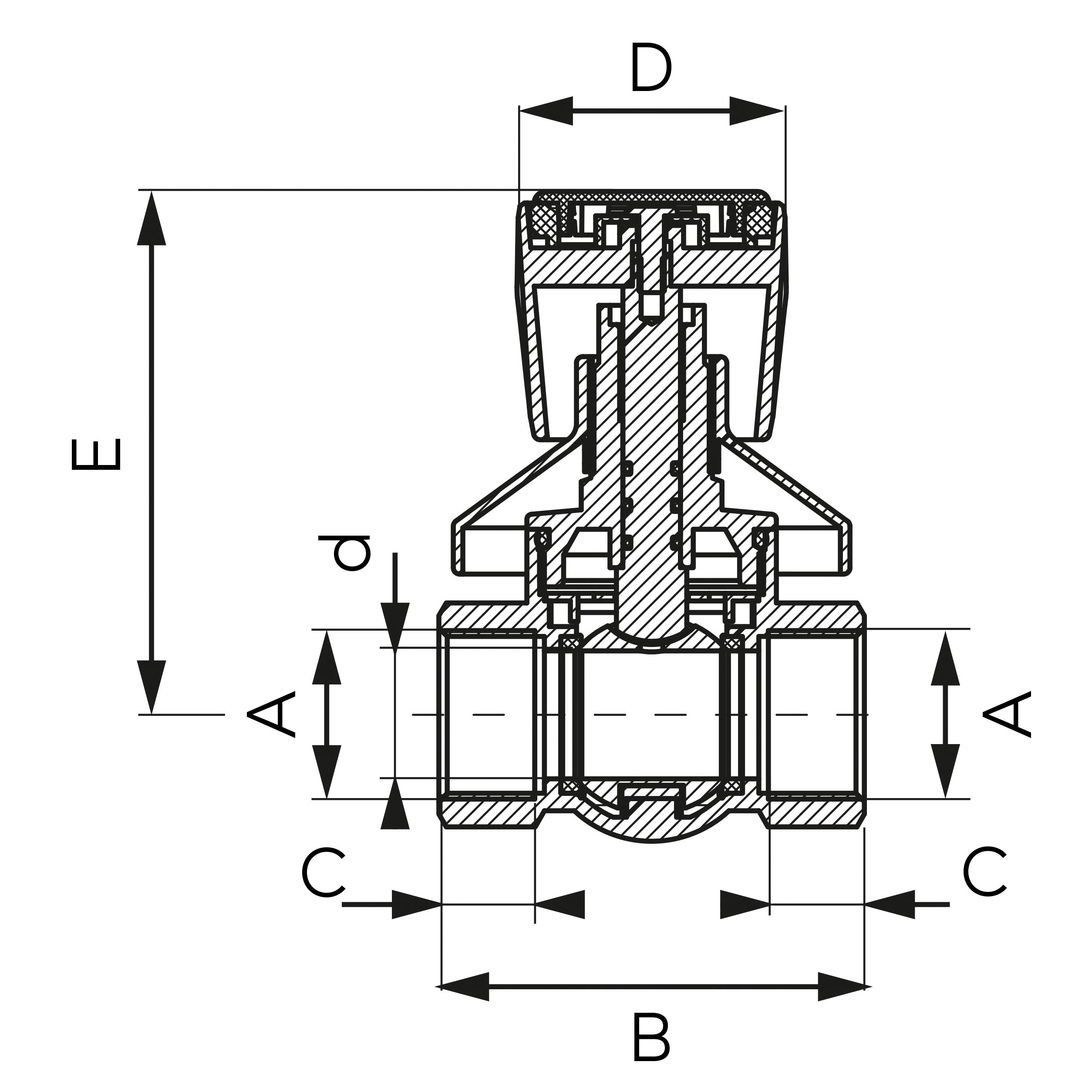

Code	DN	A	d [mm]	B [mm]	C [mm]	D [mm]	E [mm]	Kvs [m3/h]	Individ. pack.	Collect. pack.
KFP1P	15	G1/2	15	57	12,5	45,3	78,8	7,29	4	32
KFP2P	20	G3/4	20	66,5	15	45,3	82	14,00	4	20
