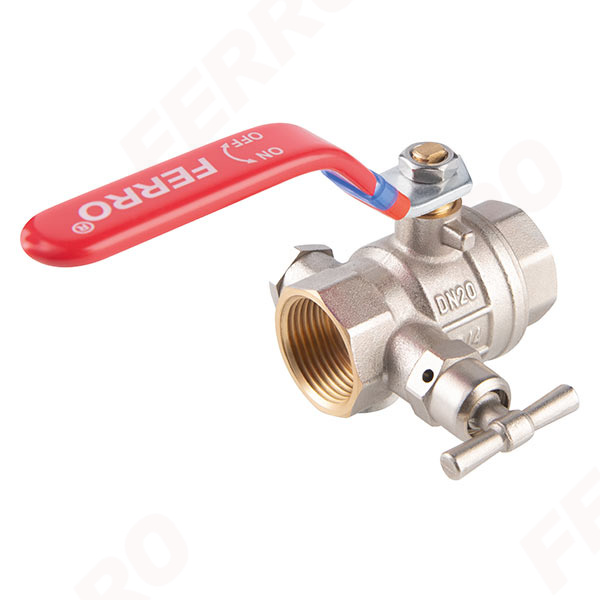

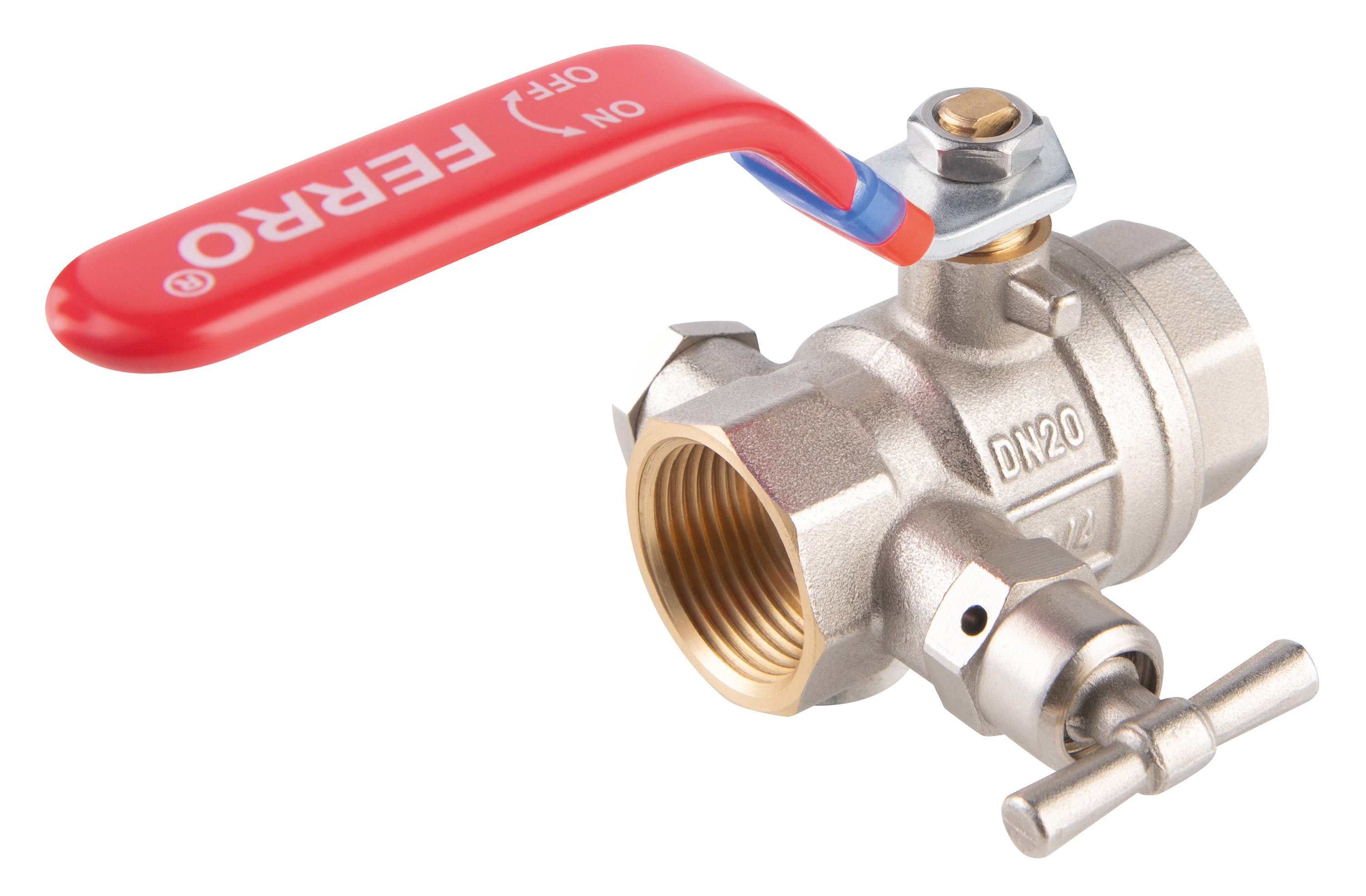

F-Power - ball valve with manual air-vent and plug

F-Power - ball valve with manual air-vent and plug

F-Power - ball valve with manual air-vent and plug

Code: KFPOM

Download PDF file with card product

warranty: 10 years
application: water, glycol 50%, compressed air
female-female
full bore
with gland
handle: metal lever
body and ball material: brass
material of ball and stem seals: PTFE
nominal pressure: 16 bar (PN16)
maximum working temperature: 120°C
NICKEL FREE - inner surfaces are not nickel-plated
CW617N-4MS brass - reduced lead and nickel content

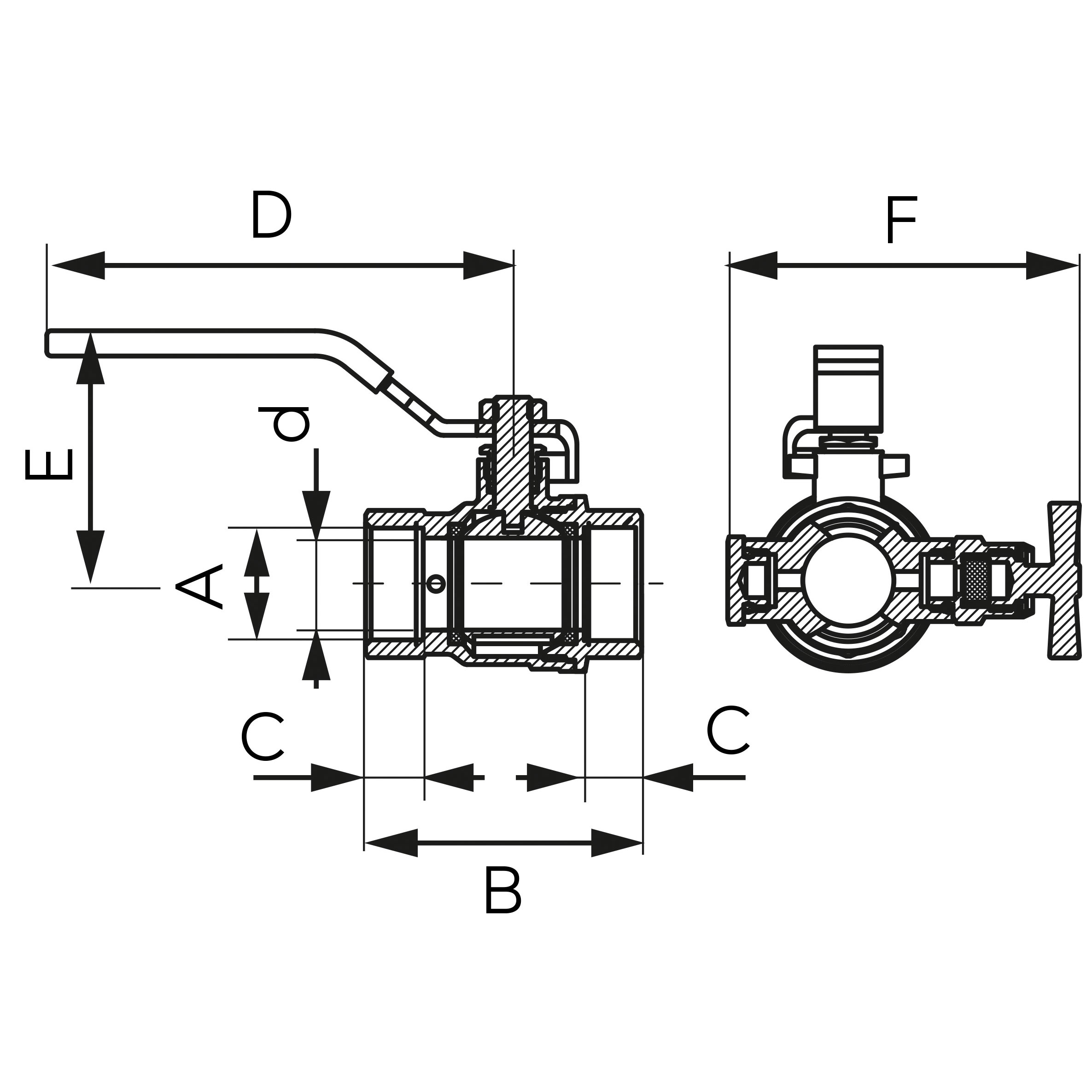

Code	DN	A	d [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	Kvs [m3/h]	Individ. pack.	Collect. pack.
KFPOM1	15	G1/2	15	54	12	96	48,5	71,3	7,51	10	50
KFPOM2	20	G3/4	20	60	12,5	101,5	55	77,3	15,48	6	48
KFPOM3	25	G1	25	70,5	14,5	116,5	65,5	83,3	22,65	5	20

Available from 2Q 2022
