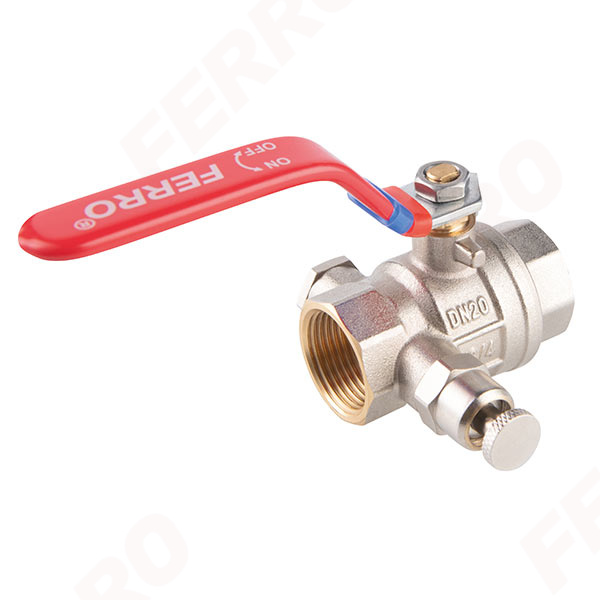

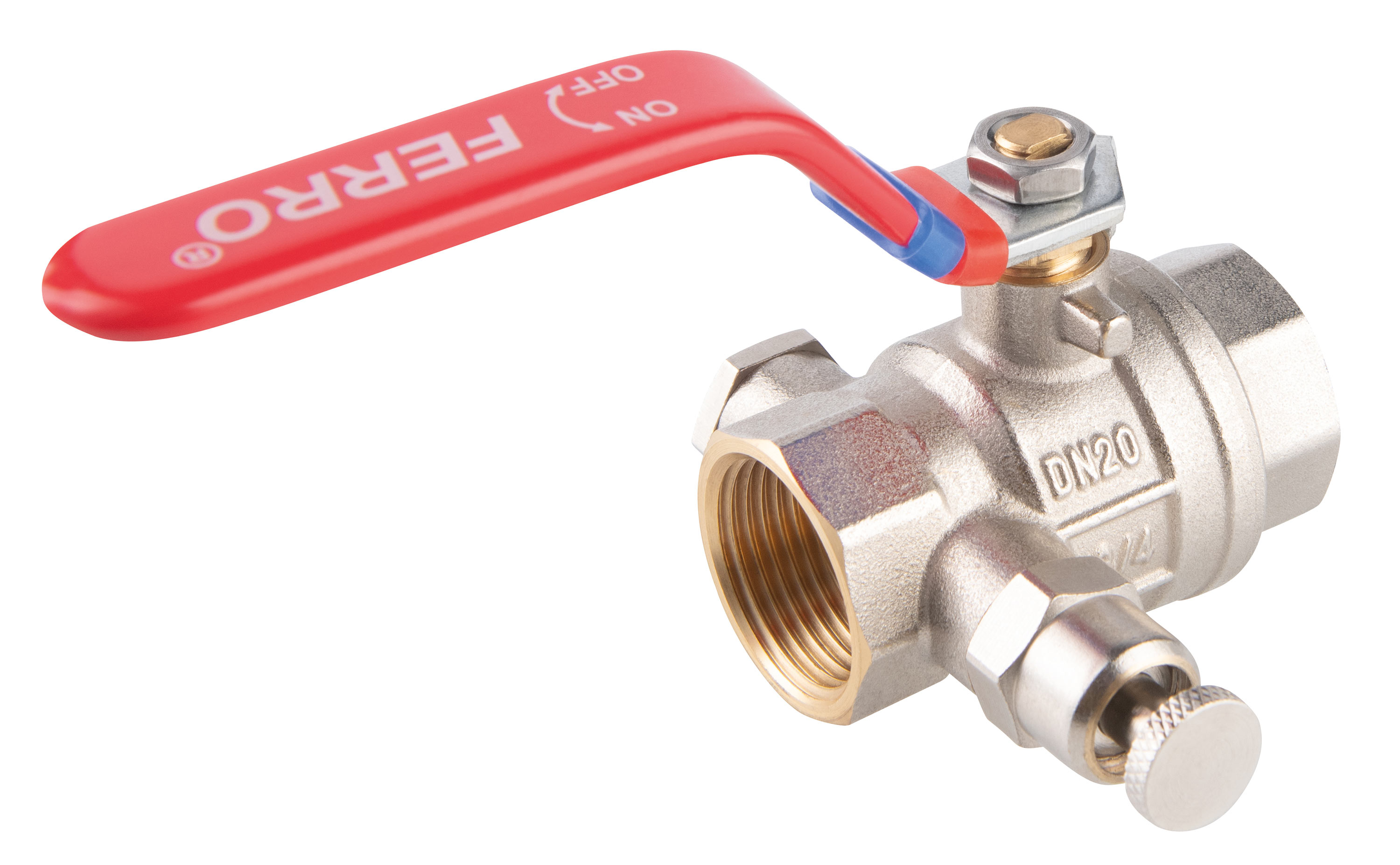

F-Power - ball valve with manual air-vent and plug

F-Power - ball valve with manual air-vent and plug

F-Power - ball valve with manual air-vent and plug

Index: KFPO

With a barcode for retail sale

Download PDF file with card product

warranty: 10 years
media valves: water, glycol 50%, compressed air
female-female
full bore
with gland
handle: metal lever
body and ball material: brass
material of ball and stem seals: PTFE
nominal pressure: 16 bar (PN16)
maximum working temperature: 120°C
NICKEL FREE - all product elements which may have contact with potable water are not covered with nickel
CW617N-4MS brass - the latest hygienic standard

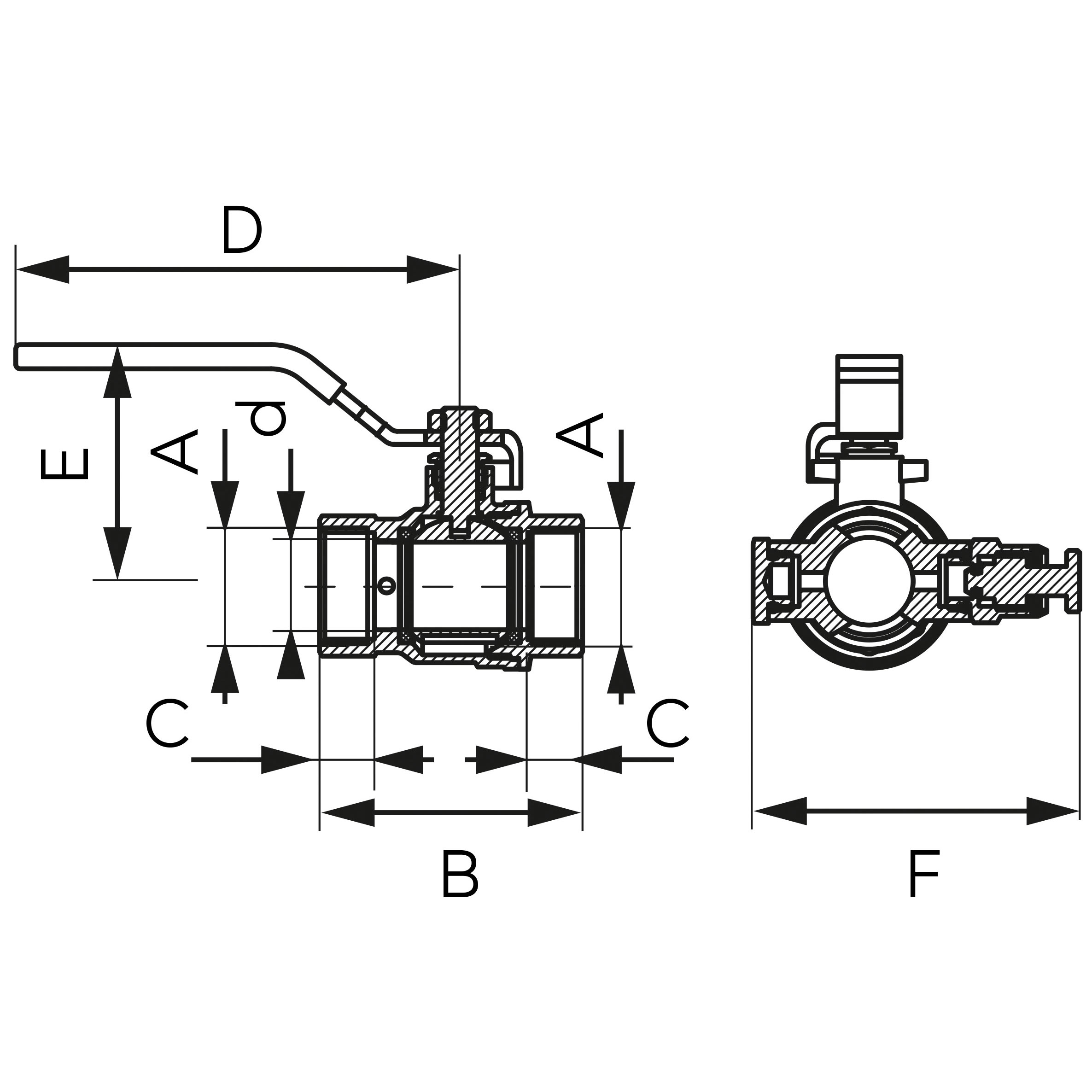

Index	DN	A	d [mm]	C [mm]	D [mm]	B [mm]	E [mm]	F [mm]	Kvs [m3/h]	Individ. pack.	Bulk pack.
KFPO1	15	G1/2	15	12	54	48,5	96	68,5	7,51	6	48
KFPO2	20	G3/4	20	12,5	60	55	101,5	74,5	15,48	6	36
KFPO3	25	G1	25	14,5	70,5	65,5	116,5	80,5	22,65	4	24
KFPO4	32	G1 1/4	32	15,5	83	70,5	116,5	90,5	45,08	6	24
KFPO5	40	G1 1/2	40	16	93,5	74	126,5	98,5	58,40	2	12
KFPO6	50	G2	50	17,5	107,5	90,5	151,5	109,5	105,99	1	6
