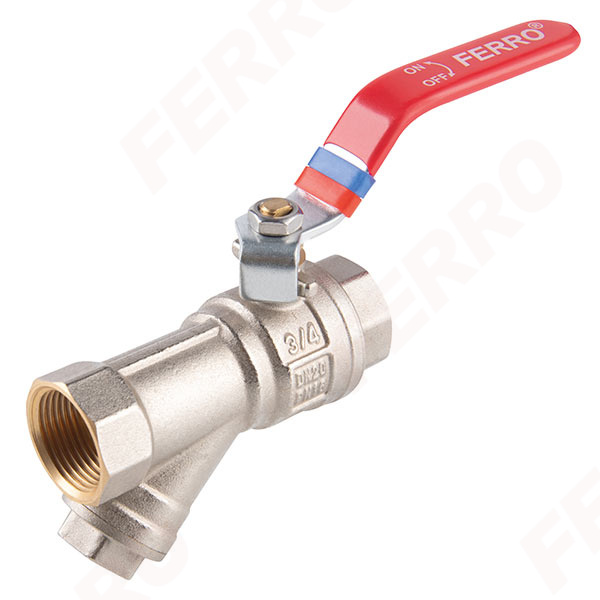

F-Power - ball valve with filter

F-Power - ball valve with filter

F-Power - ball valve with filter

Code: KFPZF

Download PDF file with card product

warranty: 10 years
application: water, glycol 50%, compressed air
female-female
with gland
handle: metal lever
body and ball material: brass
material of ball and stem seals: PTFE
filter material: stainless steel
nominal pressure: 16 bar (PN16)
maximum working temperature: 120°C
NICKEL FREE - inner surfaces are not nickel-plated
CW617N-4MS brass - reduced lead and nickel content

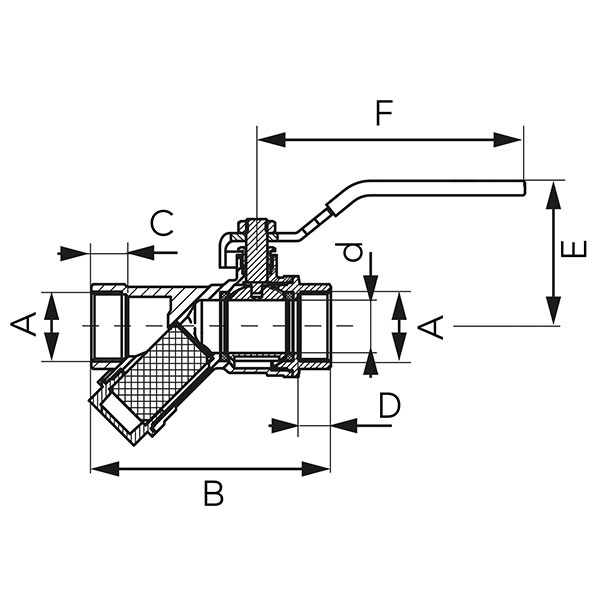

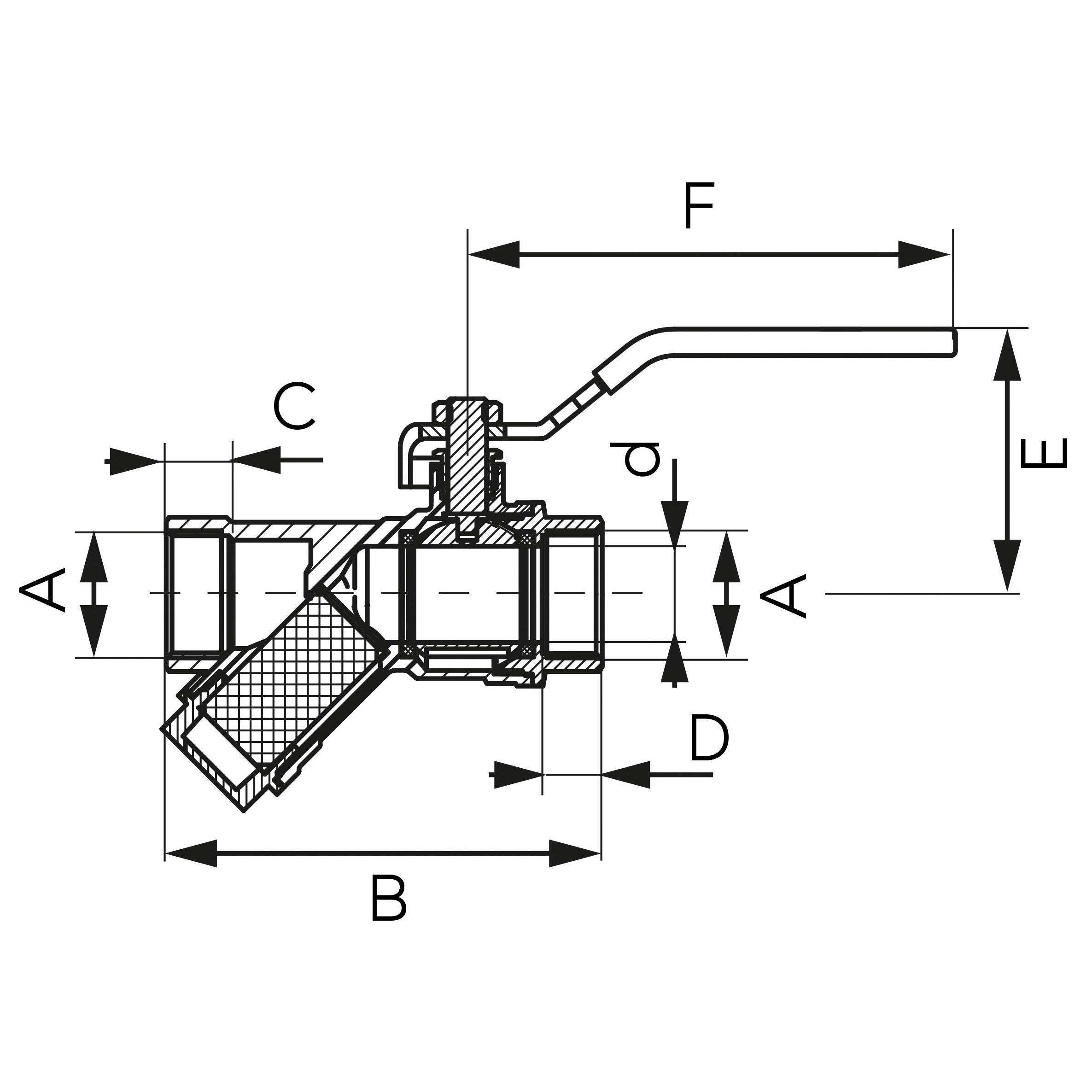

Code	DN	A	d [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	Kvs [m3/h]	Individ. pack.	Collect. pack.
KFPZF1	15	G1/2	15	79	13	12	48,5	96	3,19	8	40
KFPZF2	20	G3/4	20	90,5	13	12,5	55	101,5	6,38	10	40
KFPZF3	25	G1	25	108	15	14,5	65,5	116,5	10,13	4	32
KFPZF4	32	G1 1/4	32	137	16	15,5	70,5	116,5	13,66	2	8
