F-Power - ball valve

F-Power - ball valve

F-Power - ball valve

Code: KFPMxSG

Download PDF file with card product

warranty: 10 years
application: water, glycol 50%, compressed air
female-female with half-union
with gland
handle: butterfly
body and ball material: brass
material of ball and stem seals: PTFE
nominal pressure: 16 bar (PN16)
maximum working temperature: 120°C
NICKEL FREE - inner surfaces are not nickel-plated
CW617N-4MS brass - reduced lead and nickel content

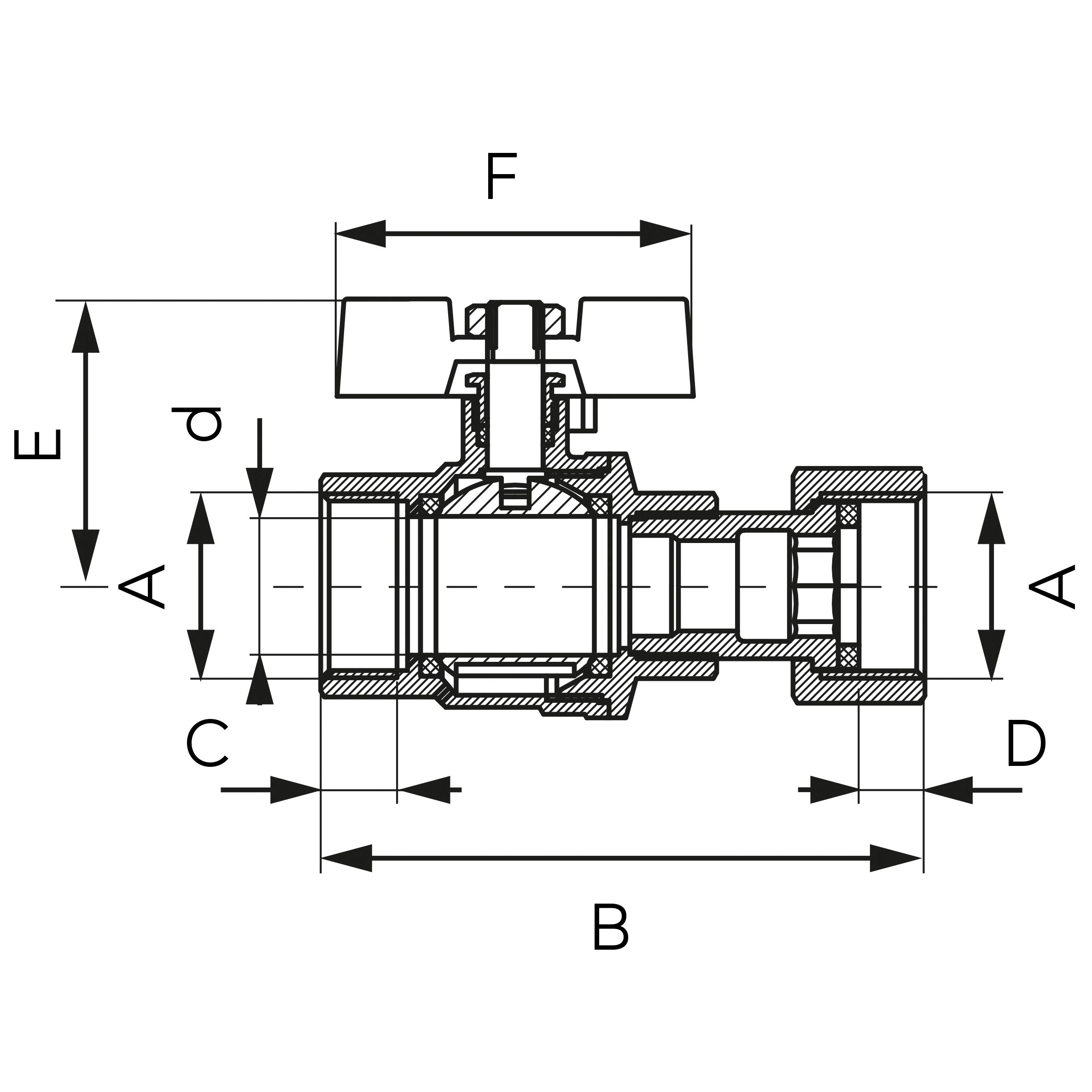

Code	DN	A	d [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	Kvs [m3/h]	Individ. pack.	Collect. pack.
KFPM1SG	15	G1/2	15	70	12,5	11	37,9	51,3	4,21	10	100
KFPM2SG	20	G3/4	20	74,5	15	11	41,3	51,3	8,65	6	60
