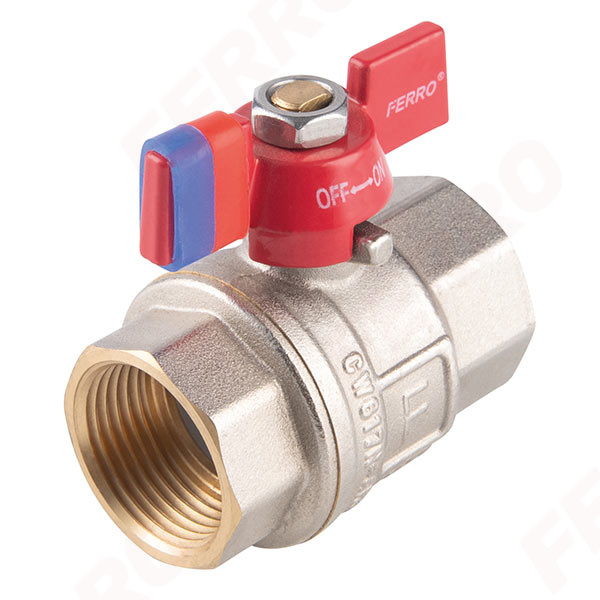

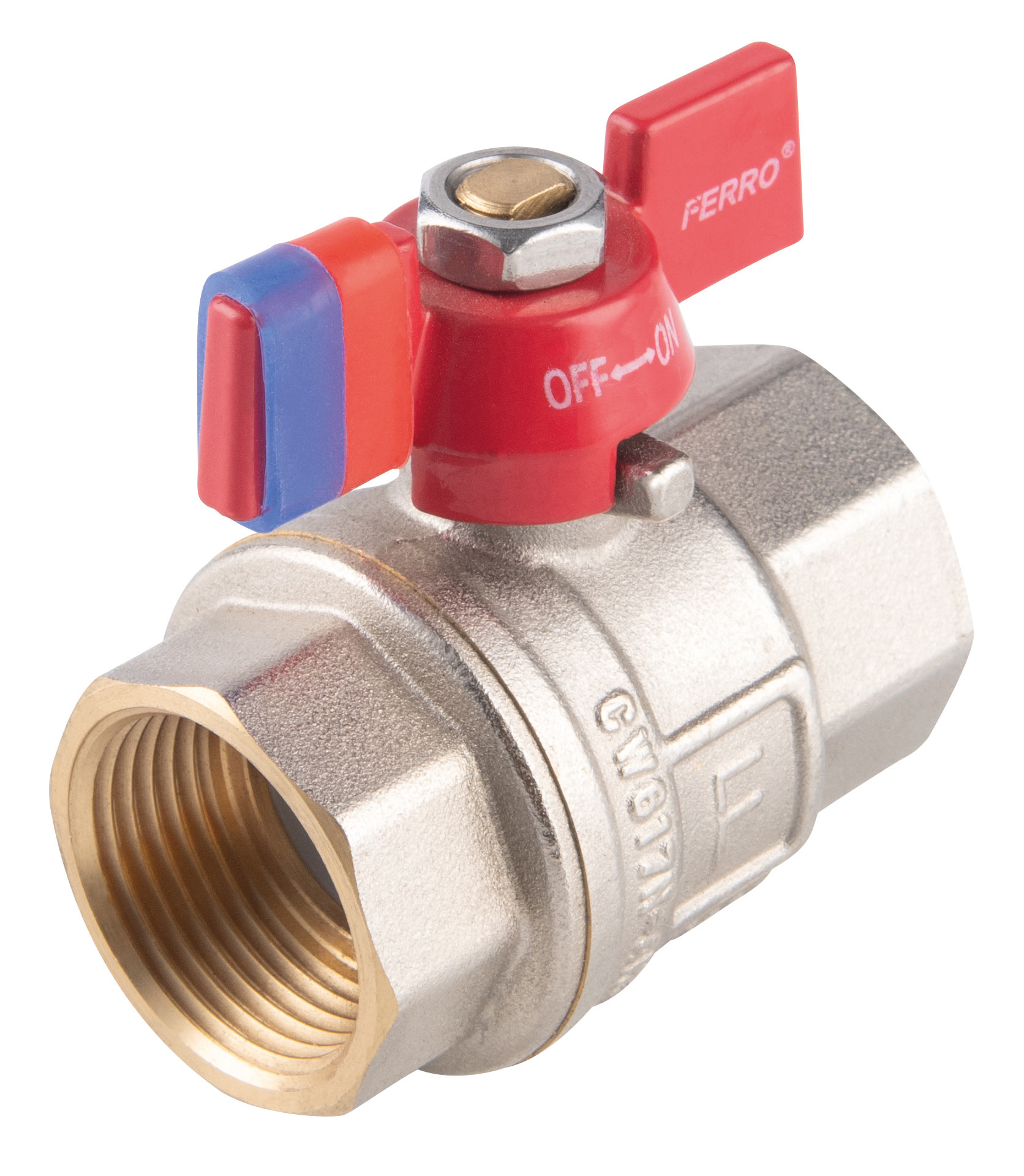

F-Power - ball valve

F-Power - ball valve

F-Power - ball valve

Code: KFPM

Download PDF file with card product

warranty: 10 years
application: water, glycol 50%, compressed air
female-female
full bore
with gland
handle: butterfly
body and ball material: brass
material of ball and stem seals: PTFE
nominal pressure: 30 bar (PN30)
maximum working temperature: 120°C
minimum working temperature: -30°C
NICKEL FREE - inner surfaces are not nickel-plated
CW617N-4MS brass - reduced lead and nickel content

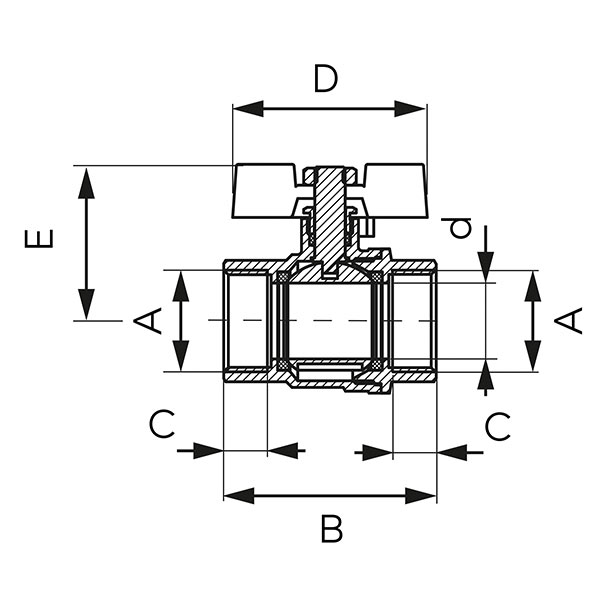

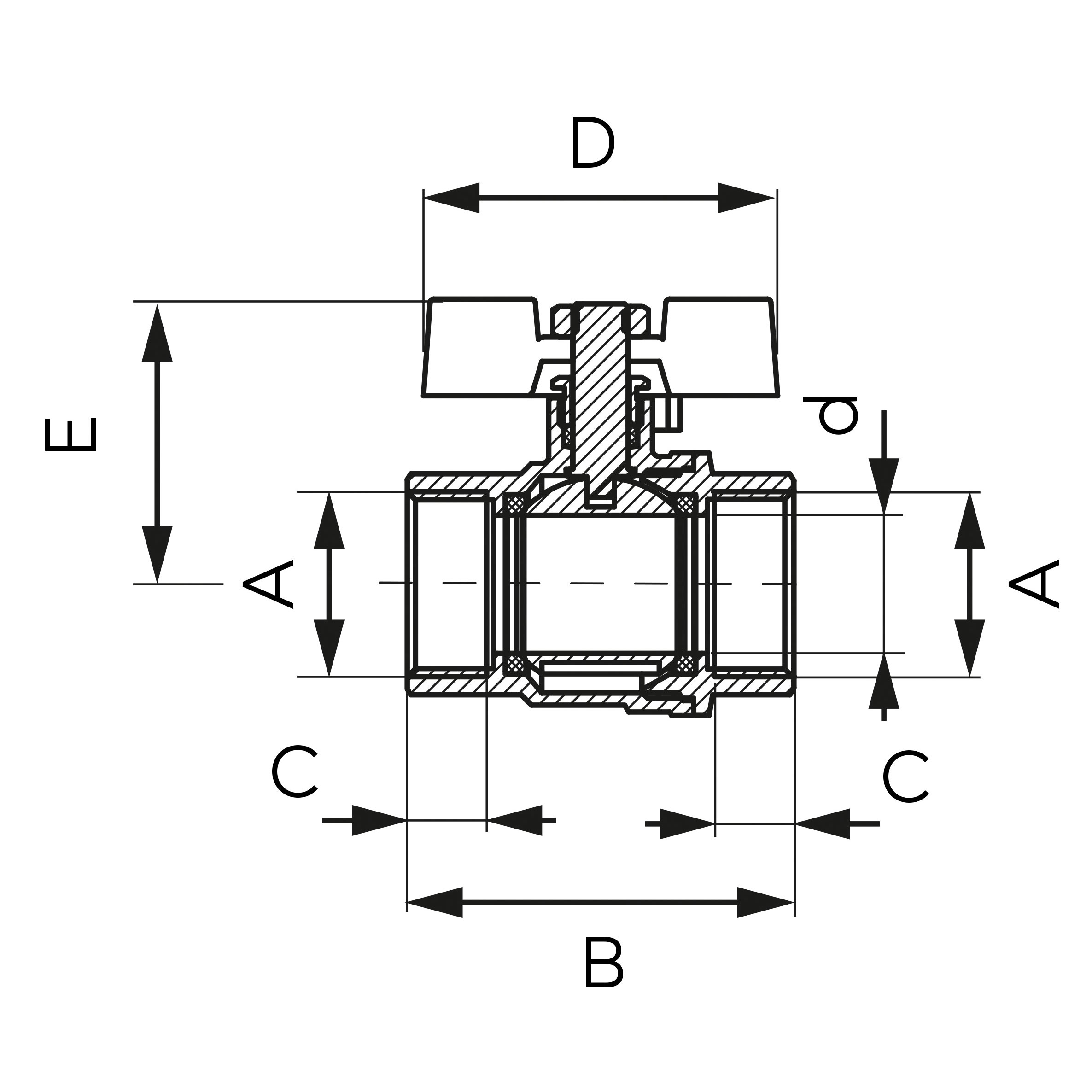

Code	DN	A	d [mm]	B [mm]	C [mm]	D [mm]	E [mm]	Kvs [m3/h]	Individ. pack.	Collect. pack.
KFPM10	10	G3/8	10	43	9	51,3	34	4,33	12	120
KFPM1	15	G1/2	15	50,5	10,5	51,3	37,9	7,86	15	150
KFPM2	20	G3/4	20	56	11	51,3	41,3	14,80	12	96
KFPM3	25	G1	25	66,5	13	65	47,4	24,13	10	50
KFPM4	32	G1 1/4	32	79	14	88	63,7	42,58	6	24
