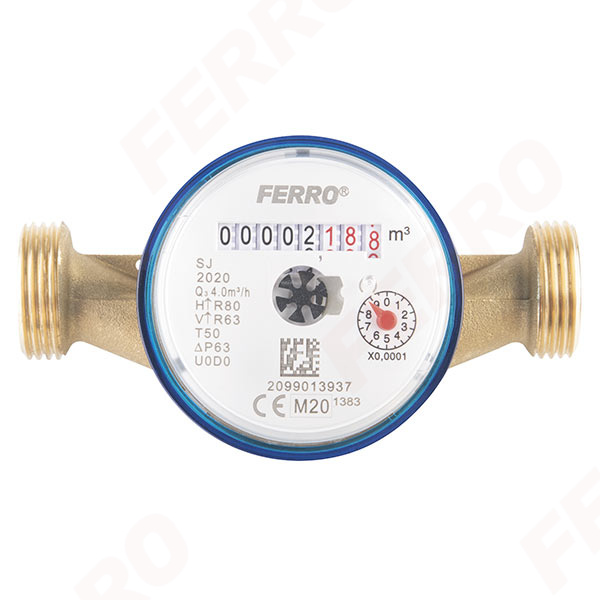

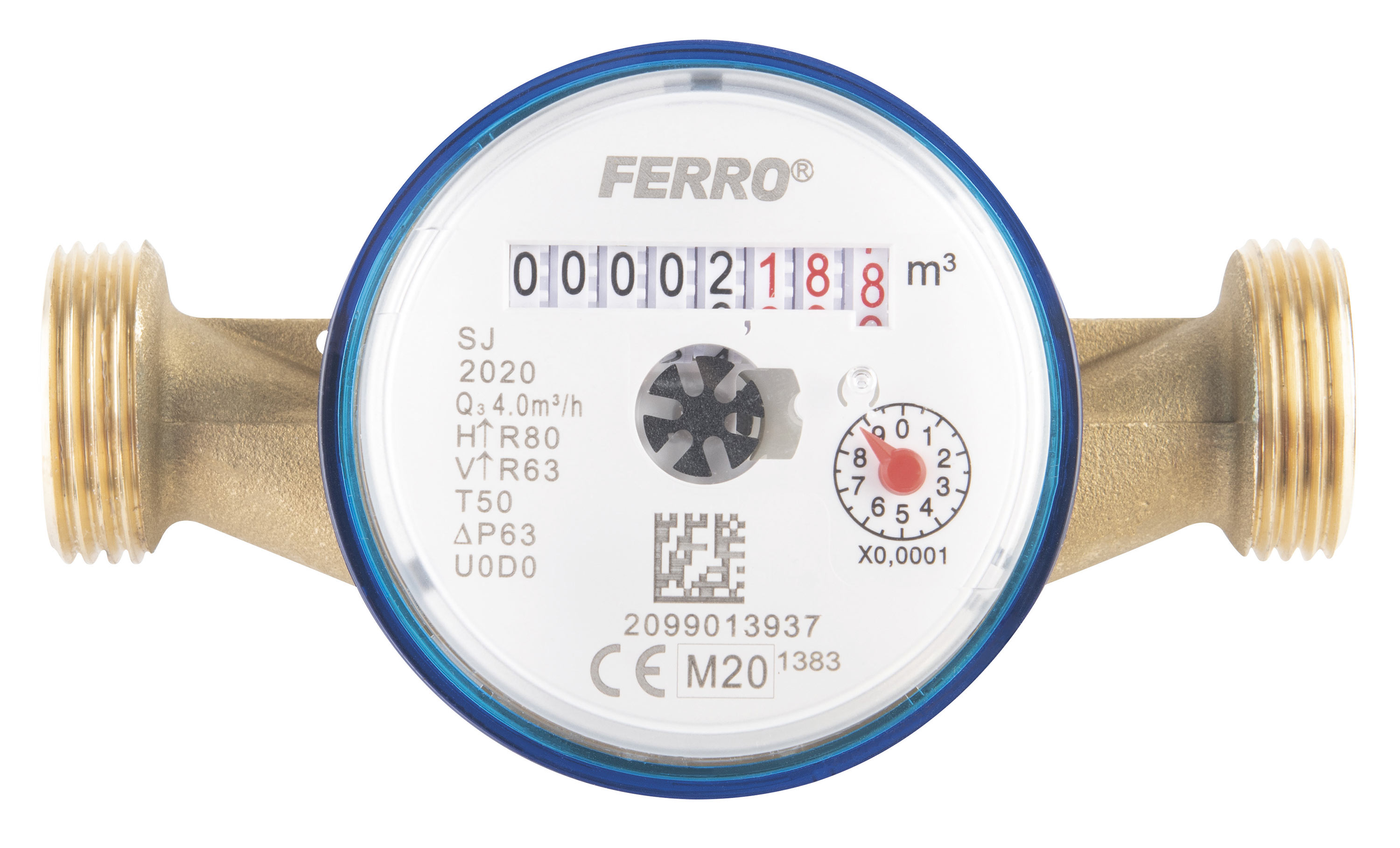

Single-jet dry dial water meter (antimagnetic) for cold water

Single-jet dry dial water meter (antimagnetic) for cold water

Code: SJAFPLUS

Individual packaging: 1
with a barcode for retail sale

Collective packaginig: 10

Download PDF file with card product

maximum operating pressure (MAP): 1.6 MPa (16 bar)
working temperature: to 50°C
upgraded metrological class: H-R80 V-R63
protection against influence of external magnetic field
horizontal or vertical mounting position
hermetic counter
for installations inside buildings

Code	Nominal volume flow	Water meter thread flange	For installation in systems	Metrological class	Individ. pack.	Collect. pack.
SJ15AFPLUS	2,5 m3/h	G3/4	DN15	H-R80, V-R63	1	10
SJ20AFPLUS	4,0 m3/h	G1	DN20	H-R80, V-R63	1	10

EU Declaration of Conformity - Water meters SJ PLUS, SJ PLUS PLI, SJ EVO (Declaration of conformity)

User's manual, warranty certificate - Water meters SJ PLUS, SJ PLUS PLI, SJ EVO (Warranty Certificate, user's manual)

Certificate of Quality System - Water meters SJ PLUS, SJ PLUS PLI, SJ EVO (Certificates)

EU Type Examination Certificate - Water meters SJ PLUS, SJ PLUS PLI, SJ EVO (Certificates)

Catalogue 2024: Sanitary fittings and accessories, Installation and heating technique (PDF 123,0 MB)
