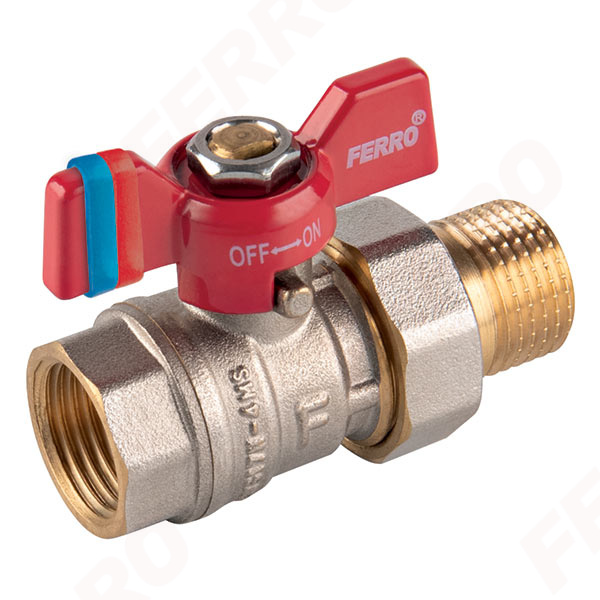

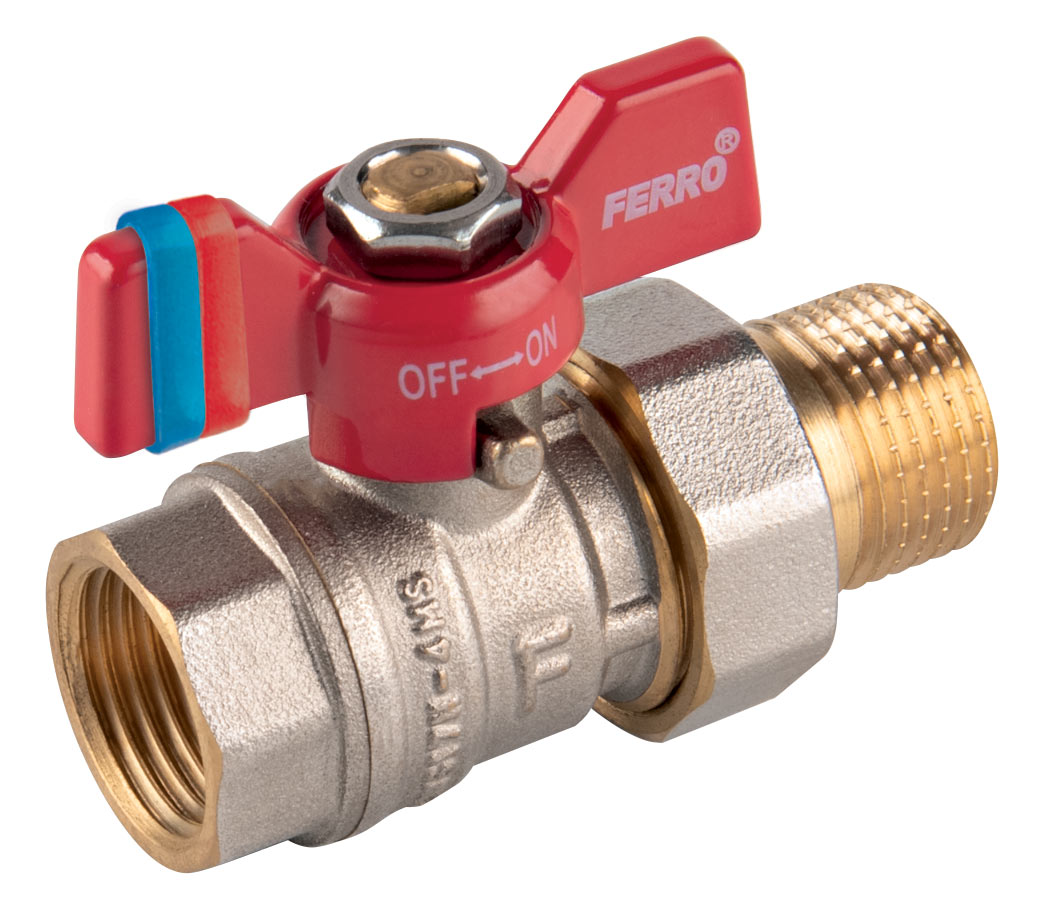

F-Comfort - Ball valve with union and butterfly, male-female

F-Comfort - Ball valve with union and butterfly, male-female

New!

F-Comfort - Ball valve with union and butterfly, male-female

F-Comfort - Ball valve with union and butterfly, male-female

F-Comfort - Ball valve with union and butterfly, male-female

Code: KFCS



  • warranty: 5 years
  • medium: water
  • with gland and packing nut
  • handle: metal butterfly
  • body and ball material: brass
  • brass CW617N-4MS - reduced lead and nickel content
  • material of ball and stem seals: PTFE
  • nominal operating pressure: 20 bar (PN20)
  • nominal operating temperature: 100°C
  • NICKEL FREE - the surface of the valve that may be in contact with water is not nickel plated

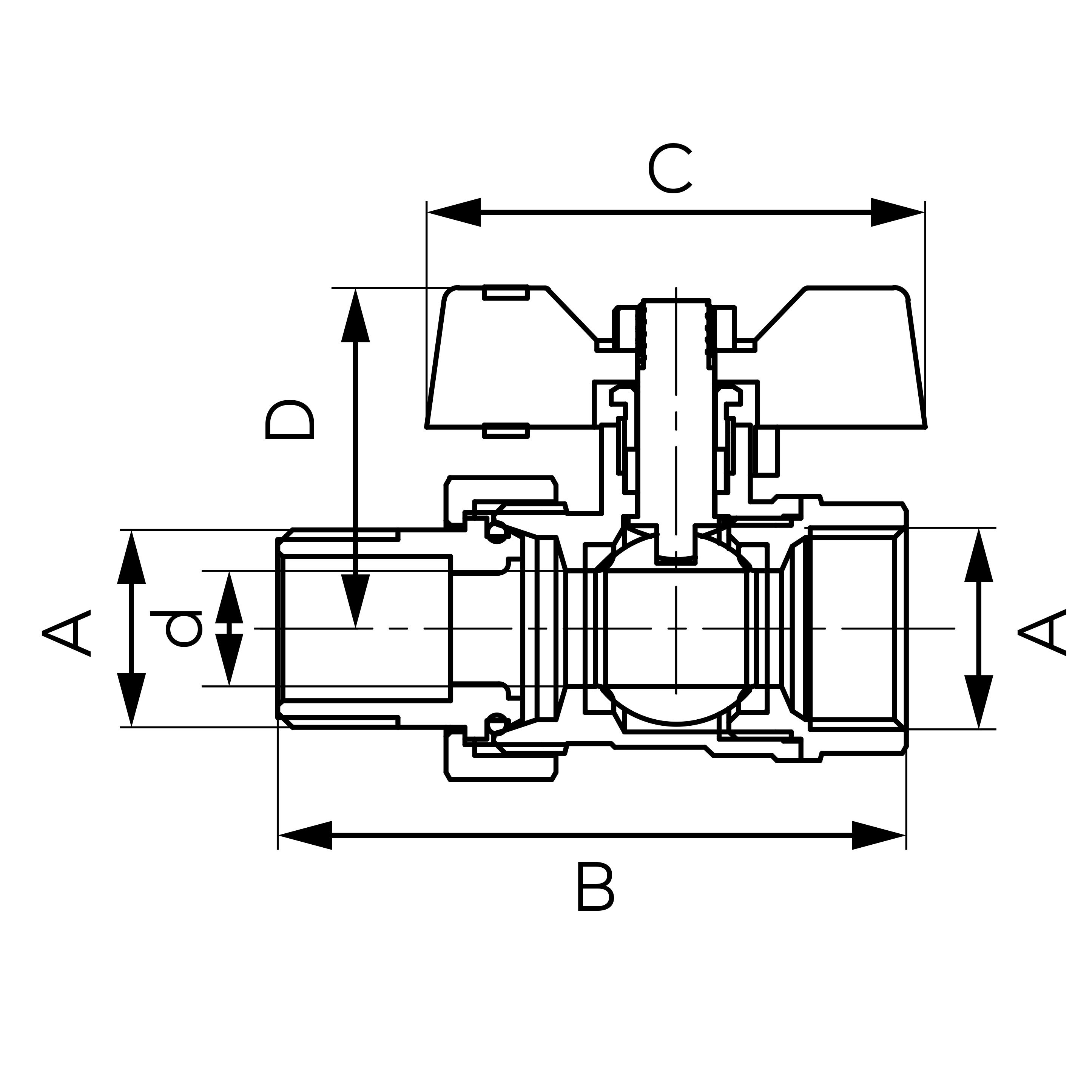

Code DN A d [mm] B [mm] C [mm] D [mm] Kvs [m³/h] Individual packaging Collective packaginig
KFCS1 15 G1/2 12 65,5 52 35,5 6,39 15 75
KFCS2 20 G3/4 16 76 52 38,8 11,83 14 56
KFCS3 25 G1 21 87 67,5 50 21,50 12 36
