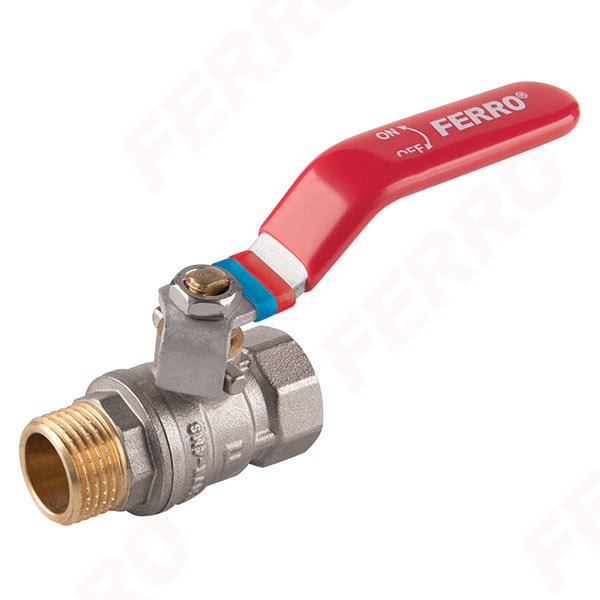

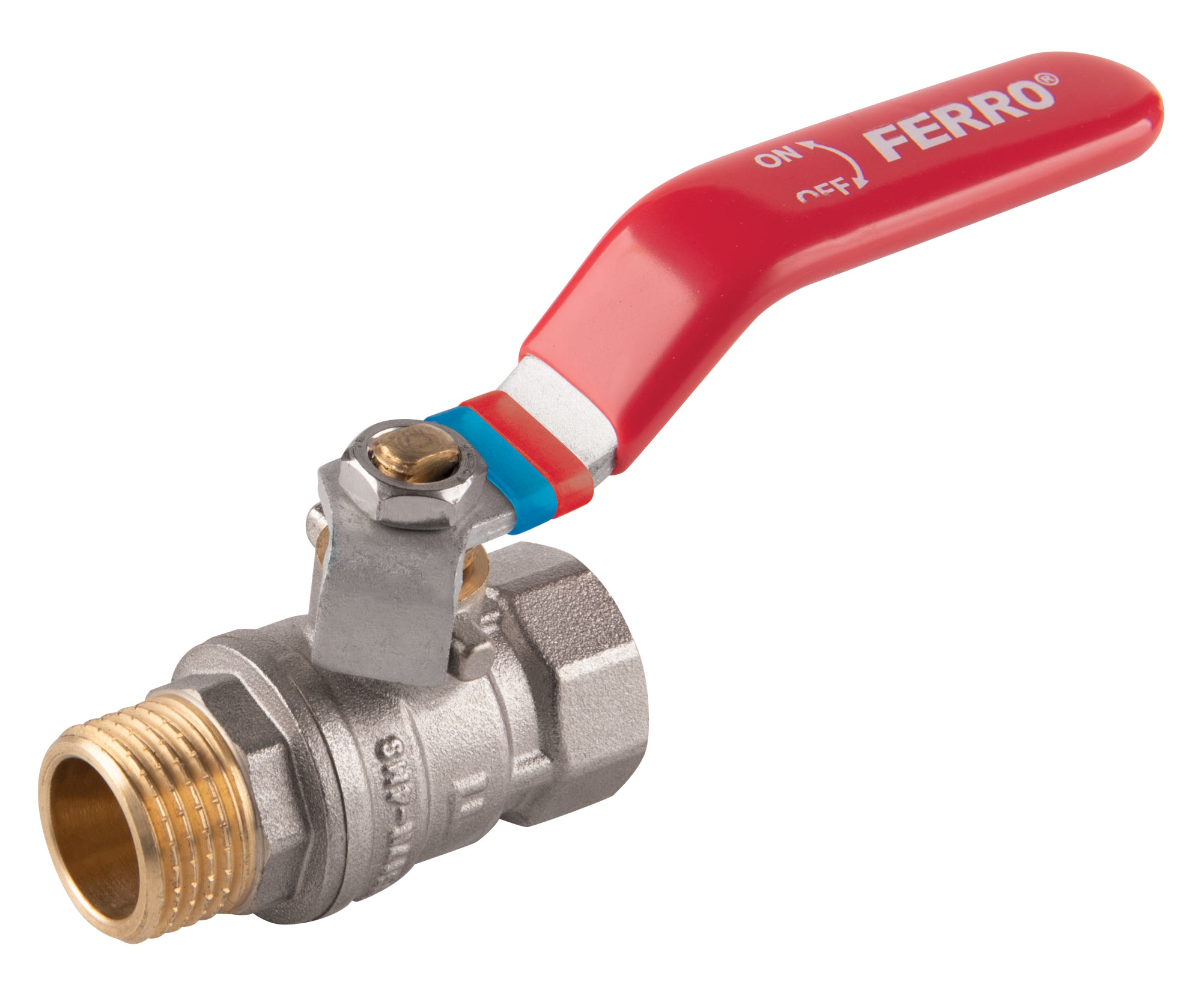

F-Comfort - Ball valve with lever handle, male-female

Download PDF file with card product

• warranty: 5 years
• medium: water
• with gland and packing nut
• handle: metal lever
• body and ball material: brass
• brass CW617N-4MS - reduced lead and nickel content
• material of ball and stem seals: PTFE
• nominal operating pressure: 20 bar (PN20)
• nominal operating temperature: 100°C
• NICKEL FREE - the surface of the valve that may be in contact with water is not nickel plated

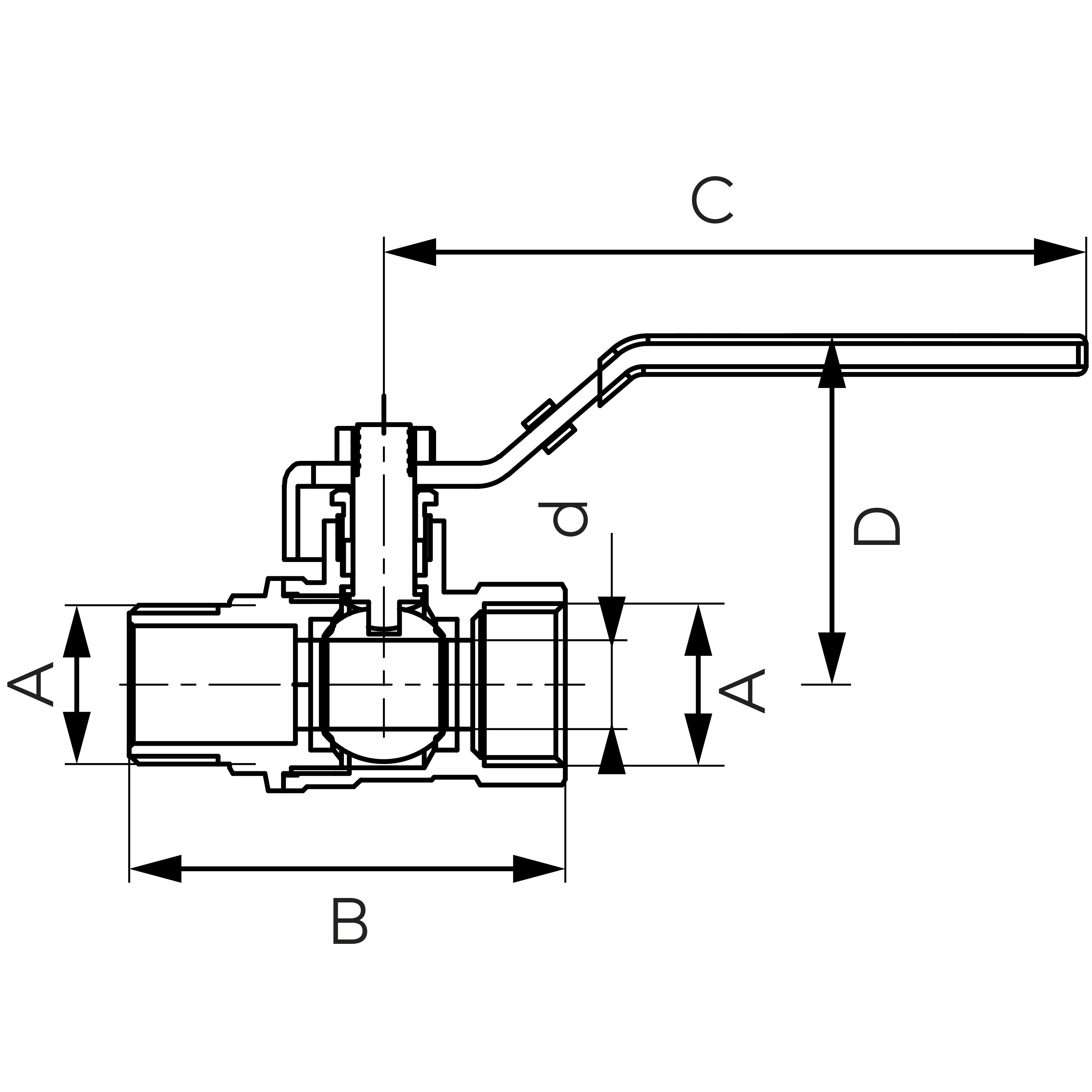

Code	DN	A	d [mm]	B [mm]	C [mm]	D [mm]	Kvs [m³/h]
KFC11	15	G1/2	12	54,5	91	45,2	6,83	15	90
KFC21	20	G3/4	16	62,5	91	48,5	10,94	10	60
KFC31	25	G1	21	71,5	113	59	24,48	10	40
KFC41	32	G1 1/4	27	78,5	131	67	36,30	6	36
KFC51	40	G1 1/2	33	93	154	82.5	54,77	4	16
KFC61	50	G2	43	103,2	154	86	93,22	2	12
