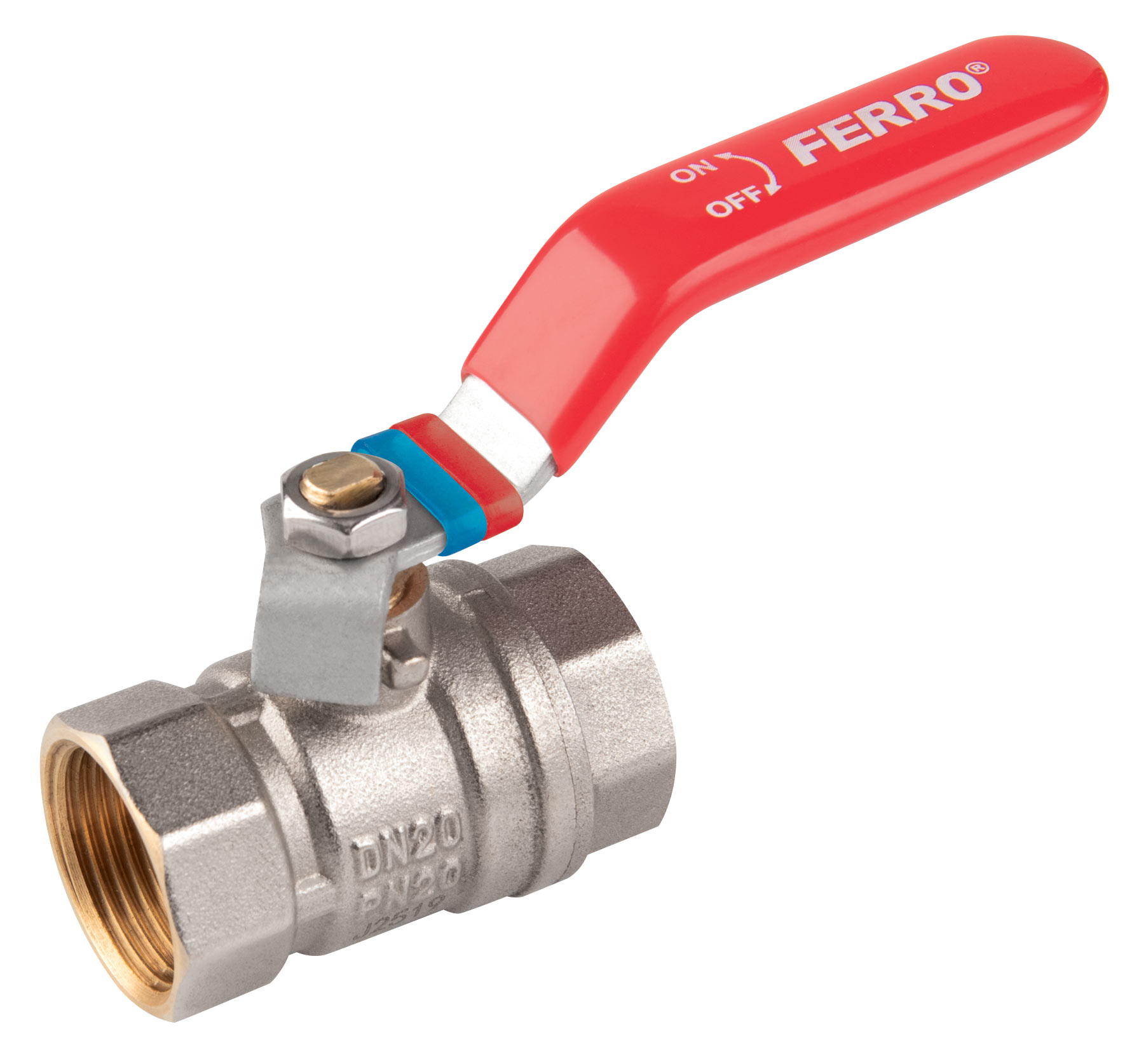

F-Comfort - ball valve

F-Comfort - ball valve

F-Comfort - ball valve

Index: KFC

With a barcode for retail sale

Download PDF file with card product

warranty: 5 years
media valves: water
female-female
with gland
handle: metal lever
body and ball material: brass
material of ball and stem seals: PTF
nominal pressure: 20 bar (PN20)
maximum working temperature: 100°C
CW617N-4MS brass - the latest hygienic standard
NICKEL FREE - all product elements which may have contact with potable water are not covered with nickel

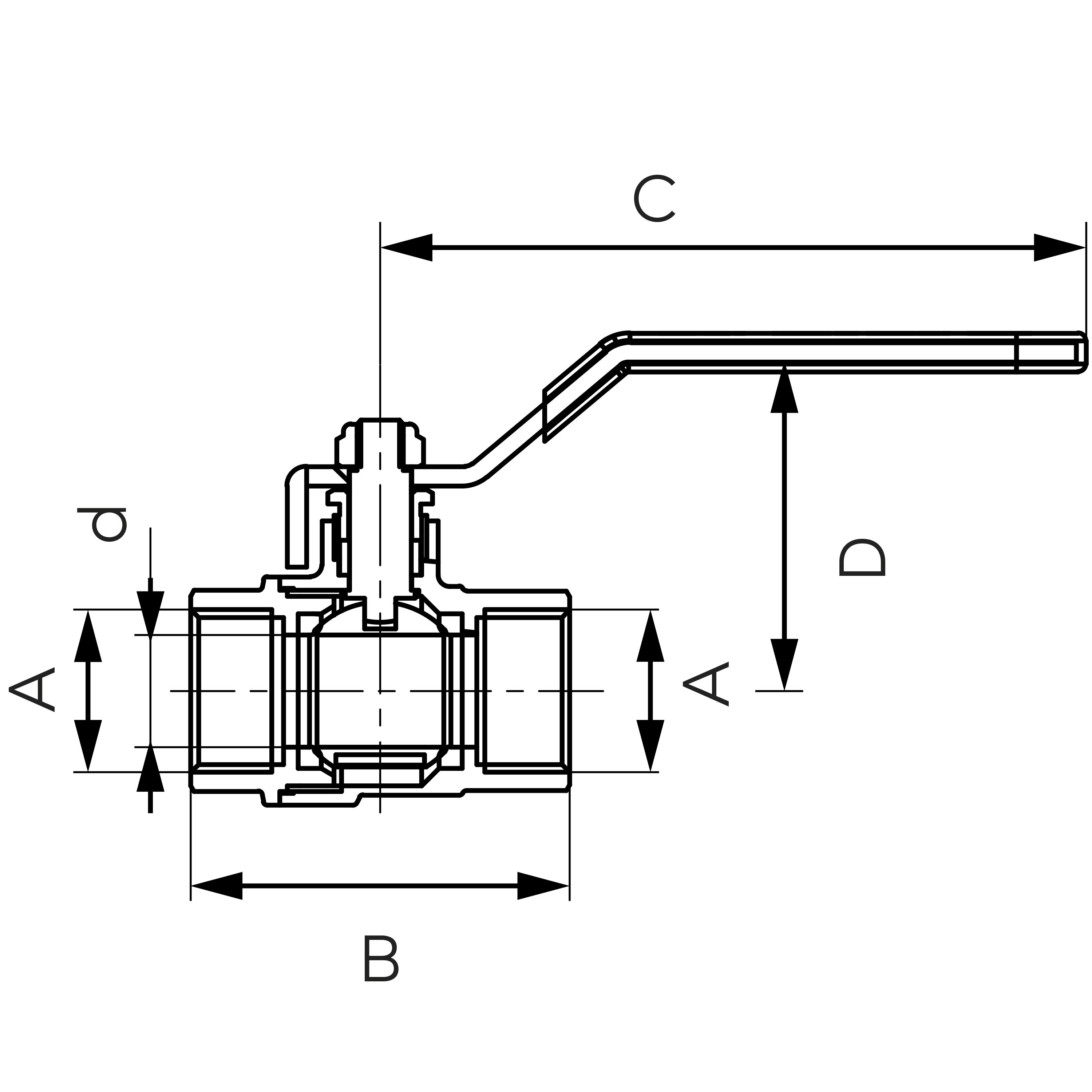

Index	DN	A	d [mm]	B [mm]	C [mm]	D [mm]	Kvs [m³/h]	Individ. pack.	Bulk pack.
KFC1	15	G1/2	12	47	91	45,2	6,83	15	90
KFC2	20	G3/4	16	55,5	91	48,5	10,94	12	72
KFC3	25	G1	21	63	113	59	24,48	10	40
KFC4	32	G1 1/4	27	70,2	131	67	36,30	9	36
KFC5	40	G1 1/2	33	81	154	82.5	54,77	4	16
KFC6	50	G2	43	94,4	154	86	93,22	2	12
