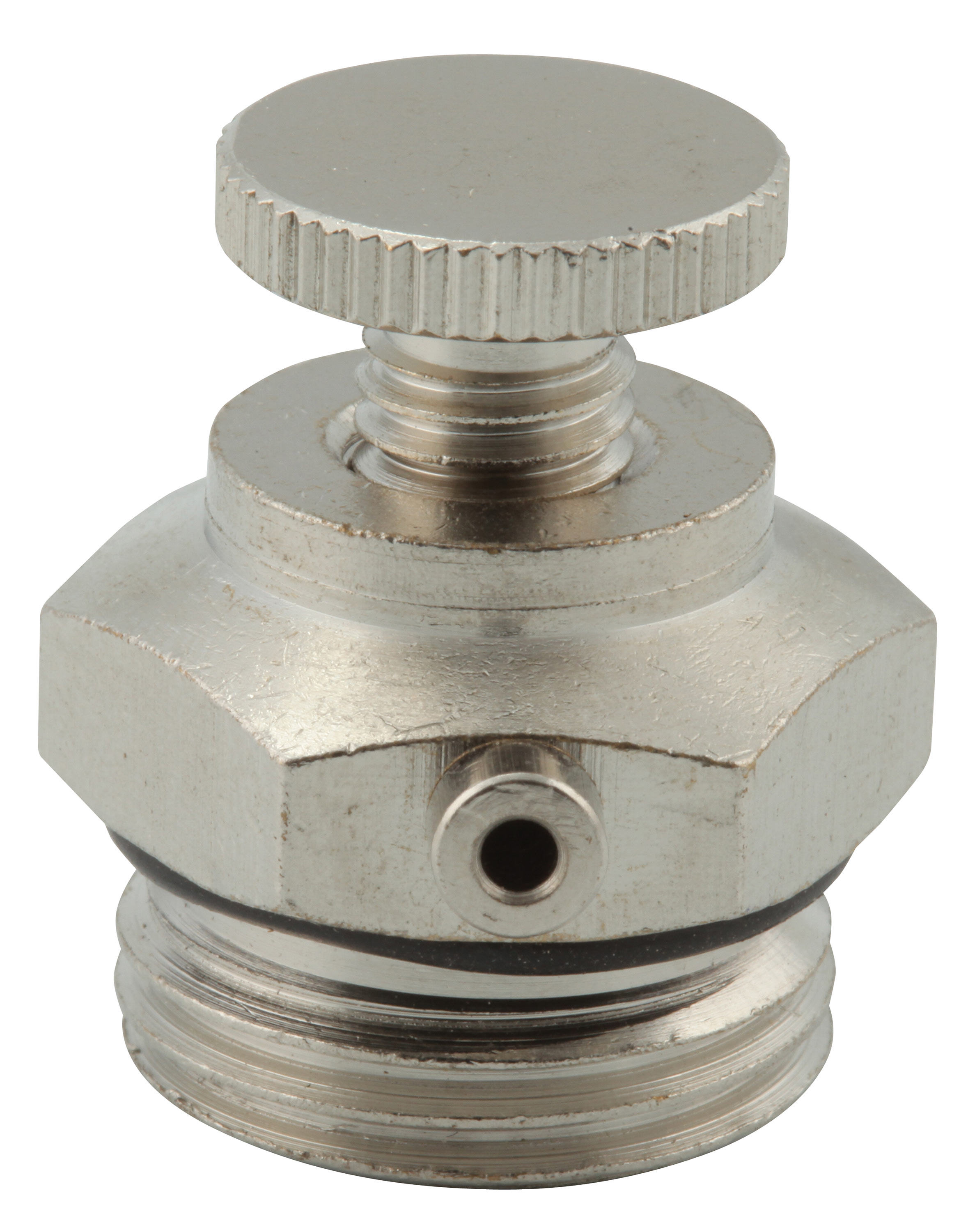

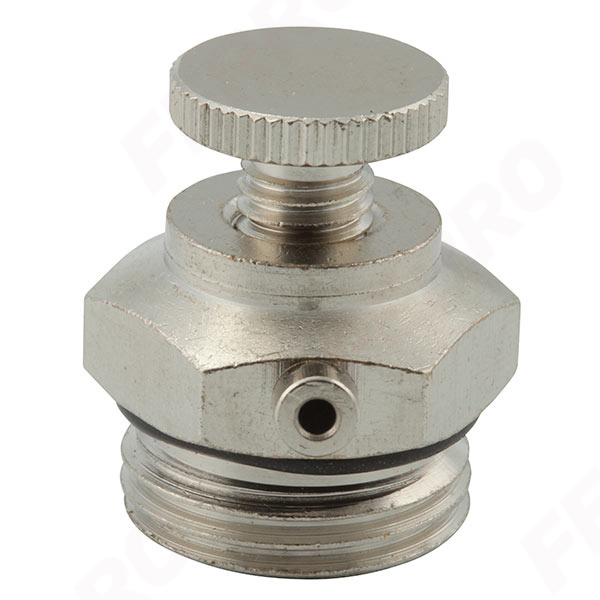

Mechanical air vent with metal knob

Mechanical air vent with metal knob

Mechanical air vent with metal knob

Code: RA501

Download PDF file with card product

max. working temperature: 120°C
max. working pressure: 1.0 MPa (10 bar)
O-ring seal

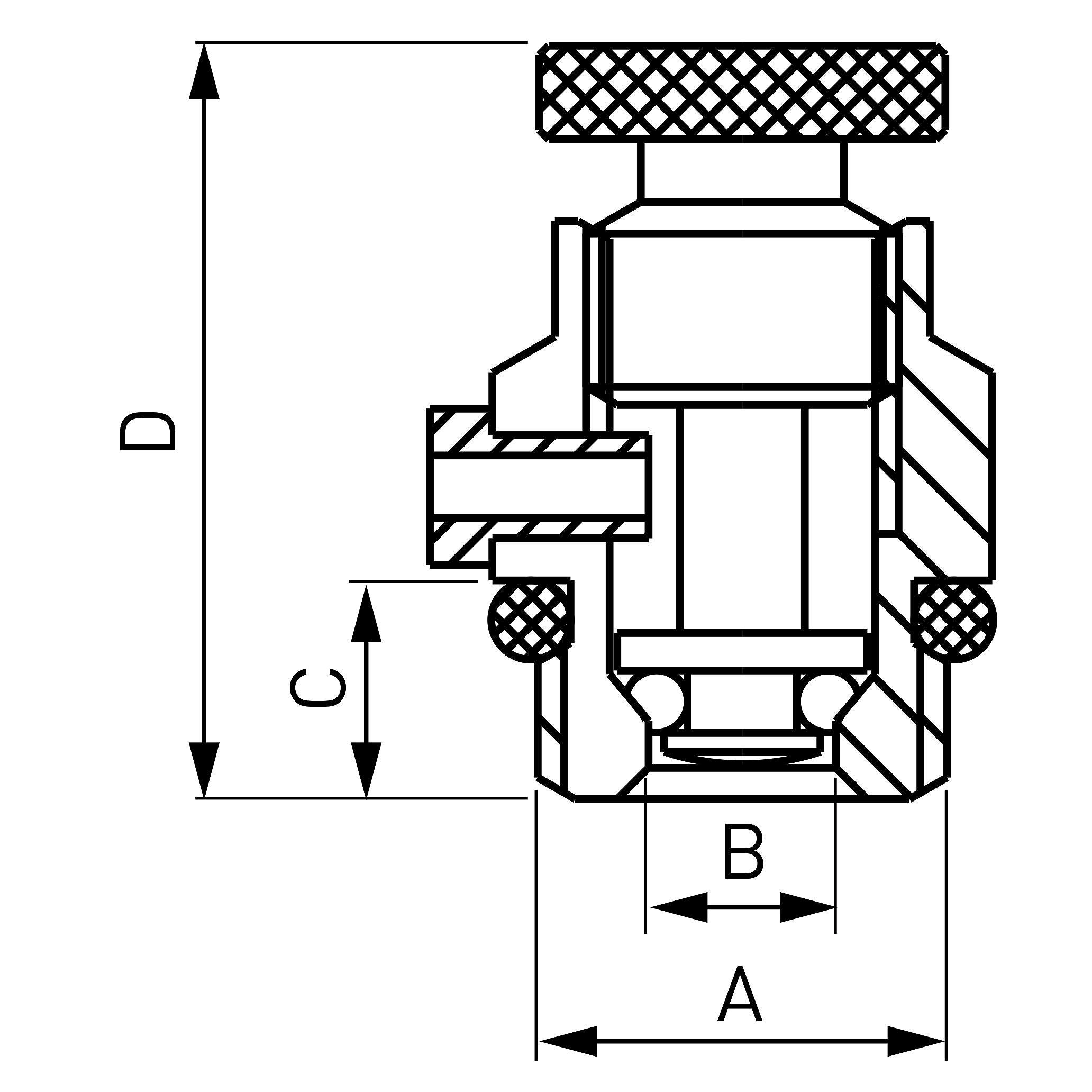

Code	A [mm]	B [mm]	C [mm]	D [mm]	Size of connectors	Individ. pack.	Collect. pack.	R*
RA501/8	1/4”	5,8	7	24,5	1/4”	-	100	RA501/8-W
RA501/10	3/8”	5,8	8	25,5	3/8”	-	100	RA501/10-W

*R - Product in individual packaging with EAN code enabling retail sale.
