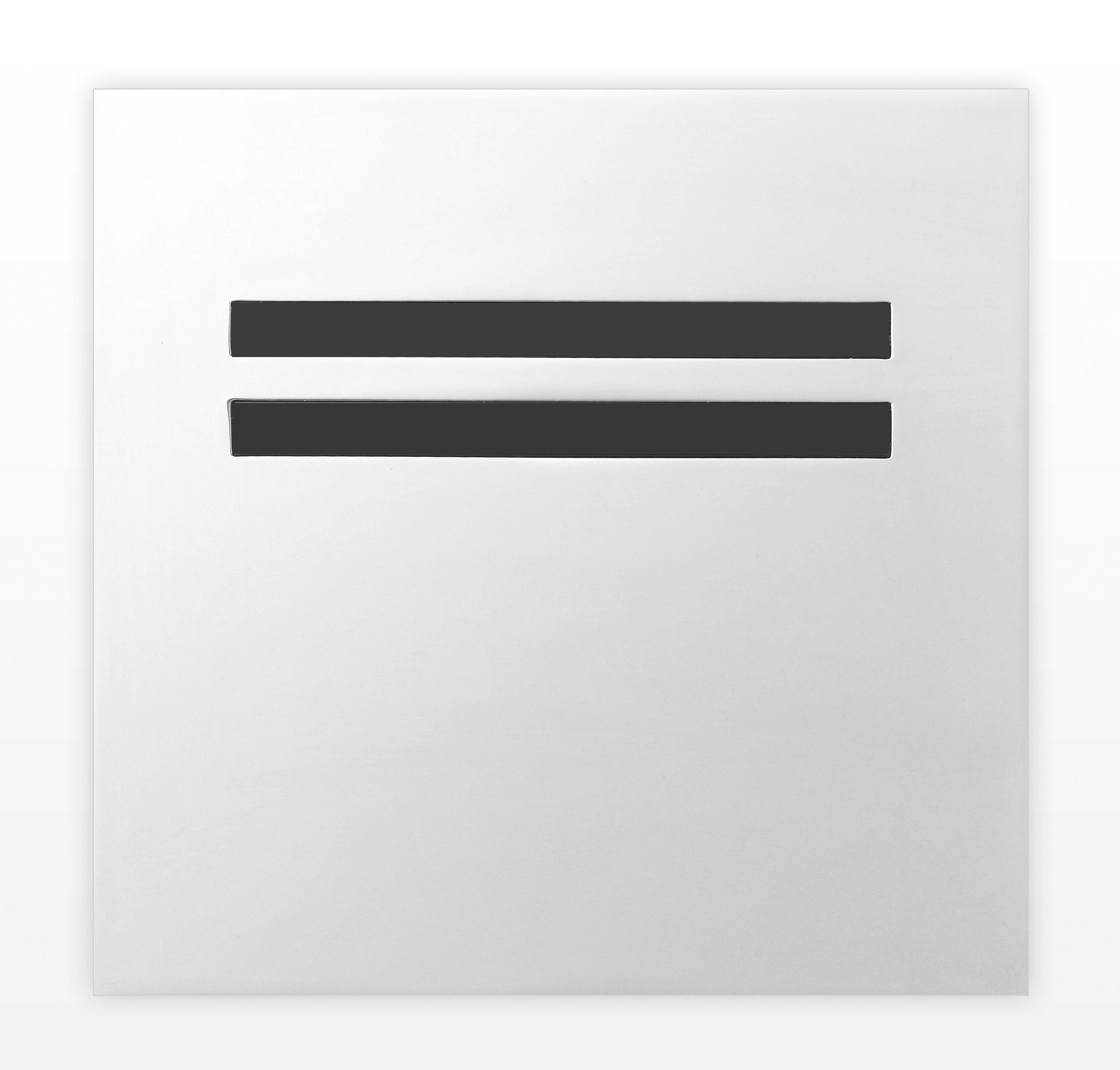

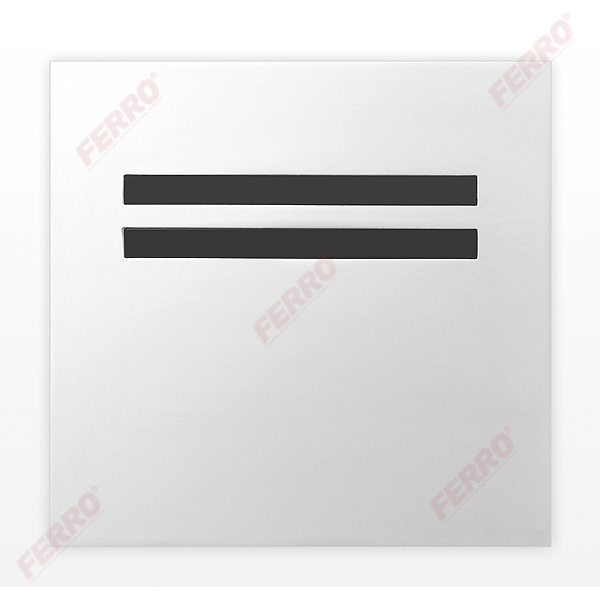

Zephyr Sensor - electronic concealed urinal valve

Download PDF file with card product

AutoCAD (DWG) file: BBB201.dwg

3D Studio Max (3ds) file: BBB201.3ds

• power supply: 9V battery

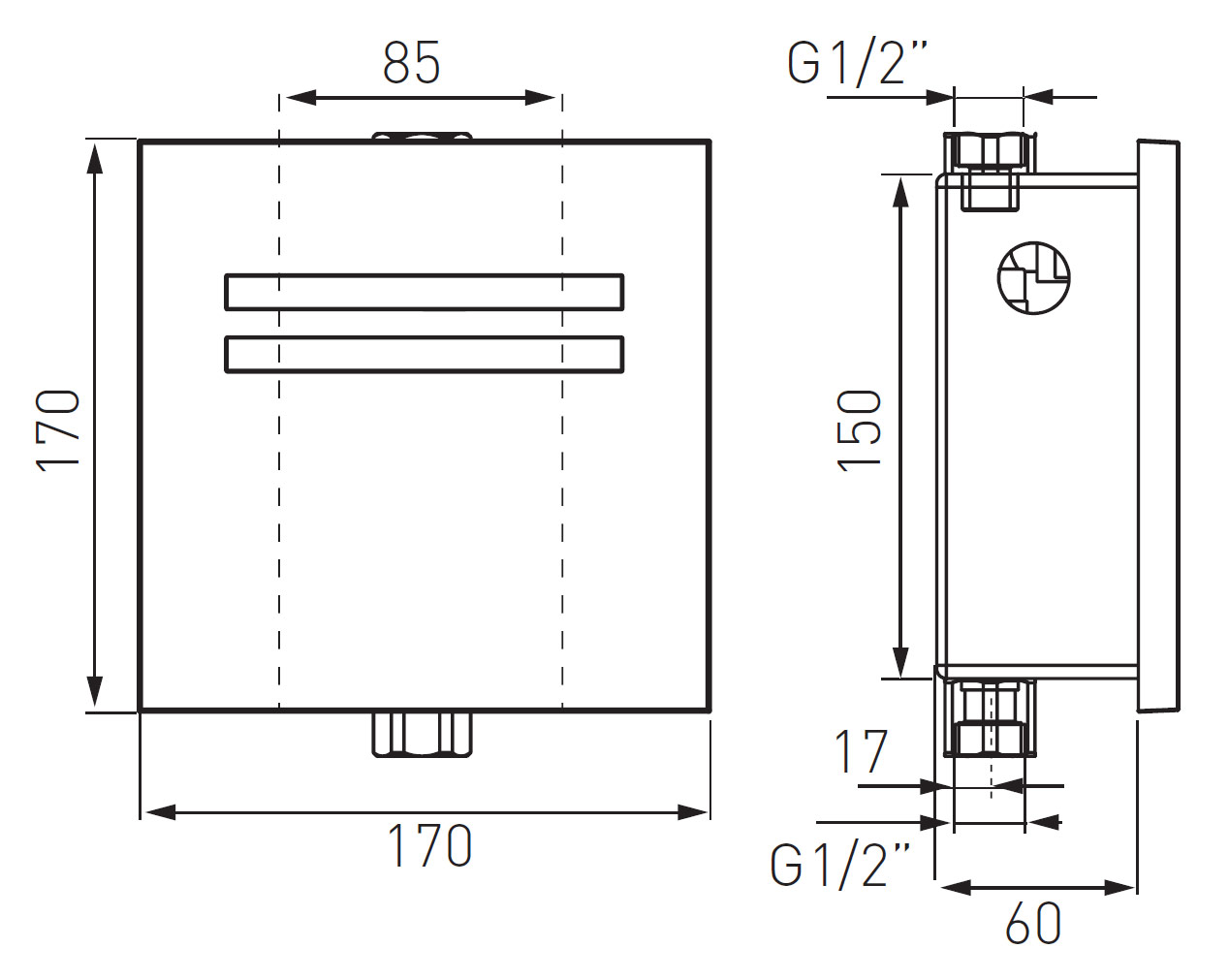

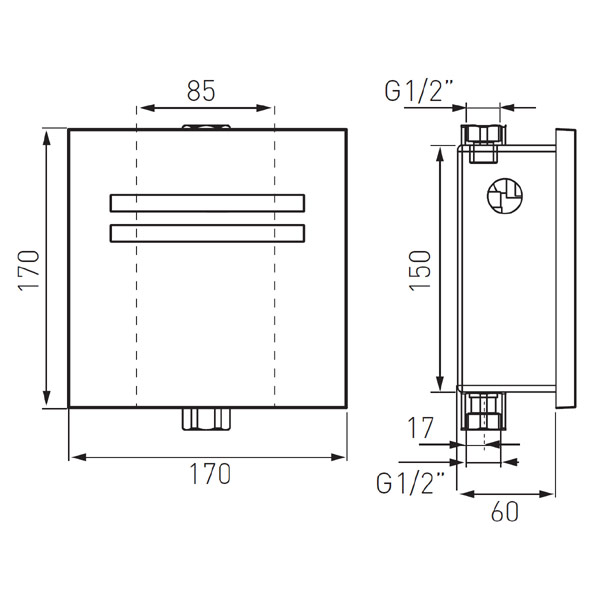

• main connection: 2 x 1/2” F (inlet and outlet)
• permissible working pressure: 0,5 bar - 8,0 bar (7-116 PSI)
• automatic flushing: 1 x 24 h
• factory set detection range: 600 mm
• factory set flush time: 6 seconds
• factory set flow volume: ~1,0 lpf (at 1 bar dynamic pressure)
• flush time: adjustable within 3 - 20 seconds
• finish: satin
• settings setup: with RC01 remote control
