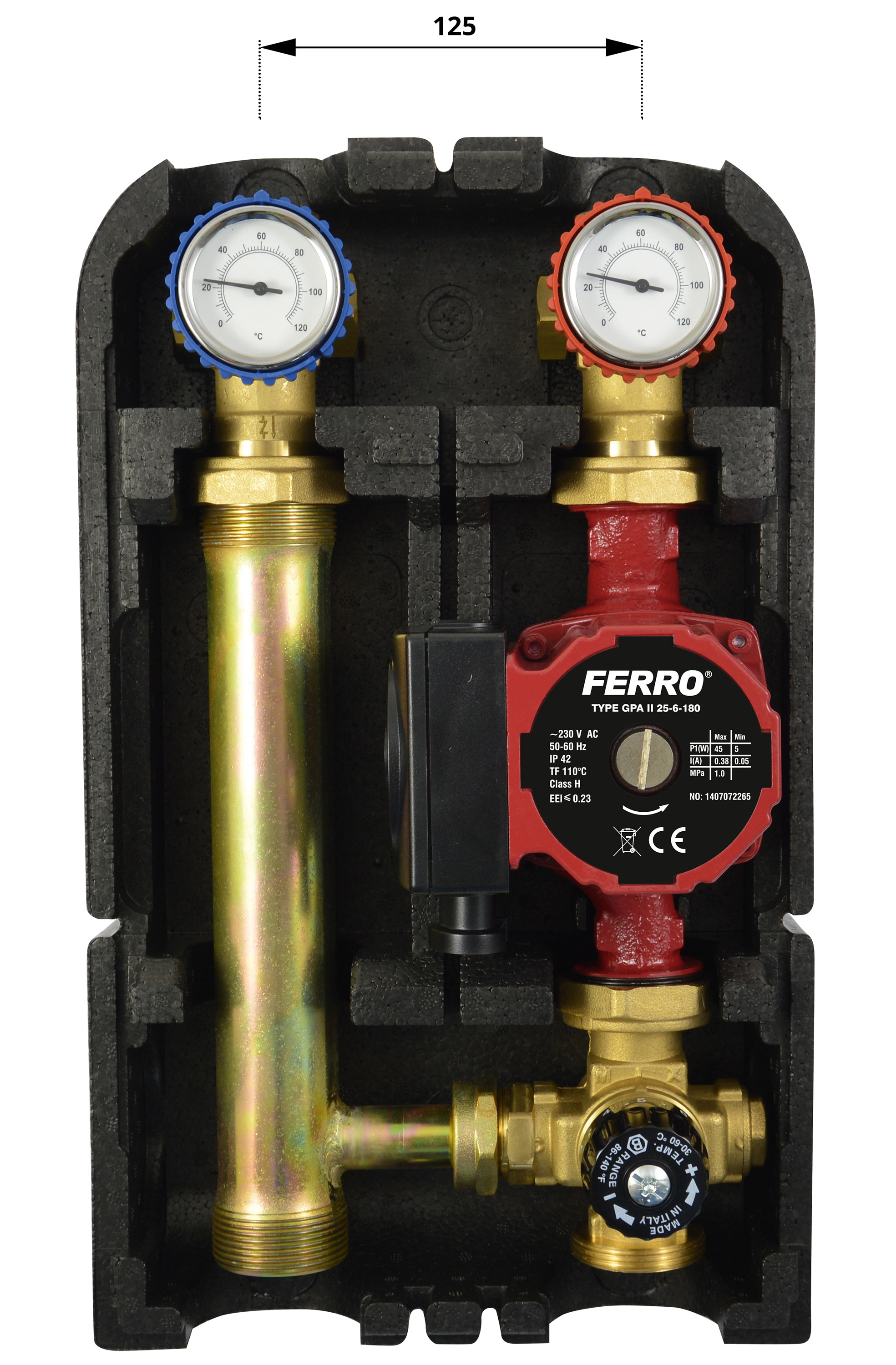

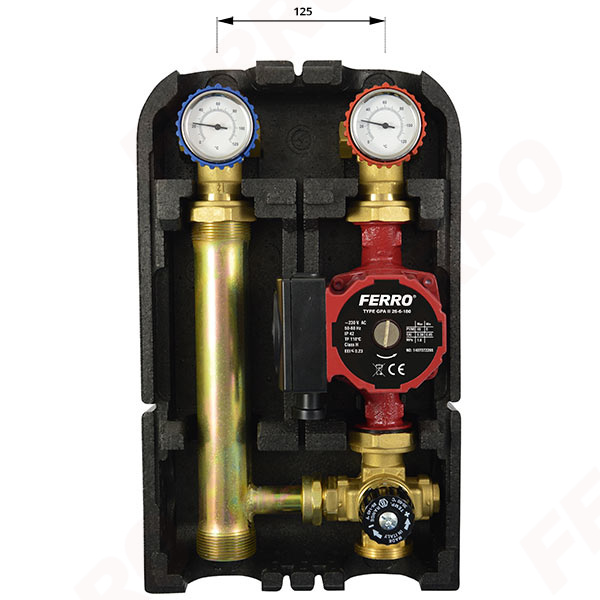

Thermostatic mixing group for low-temperature installations

Individual packaging: 1
with a barcode for retail sale

Collective packaginig: -

Download PDF file with card product

• Equipment:
  • 25-6-180 electronic circulation pump
  • thermostatic 3-way mixing valve with flow Kv = 3.5 m3/h
  • ball valves with built-in thermometers in handles
  • check valve on the return side
  • lower connections: 6/4” M for flat gasket
  • upper connections: 1” F
• Technical parameters:
  • max. working temperature: 90°C
  • max. working pressure: 1.0 MPa (10 bar)
  • thermometer measuring scope: 0 - 120°C
  • temperature adjustment range: 30°C - 60°C
  • thermostatic valve body: CB752S (DZR) brass- dezincification resistant
  • thermostatic valve spring: stainless steel AISI 302
  • sealing: PTFE, EPDM
