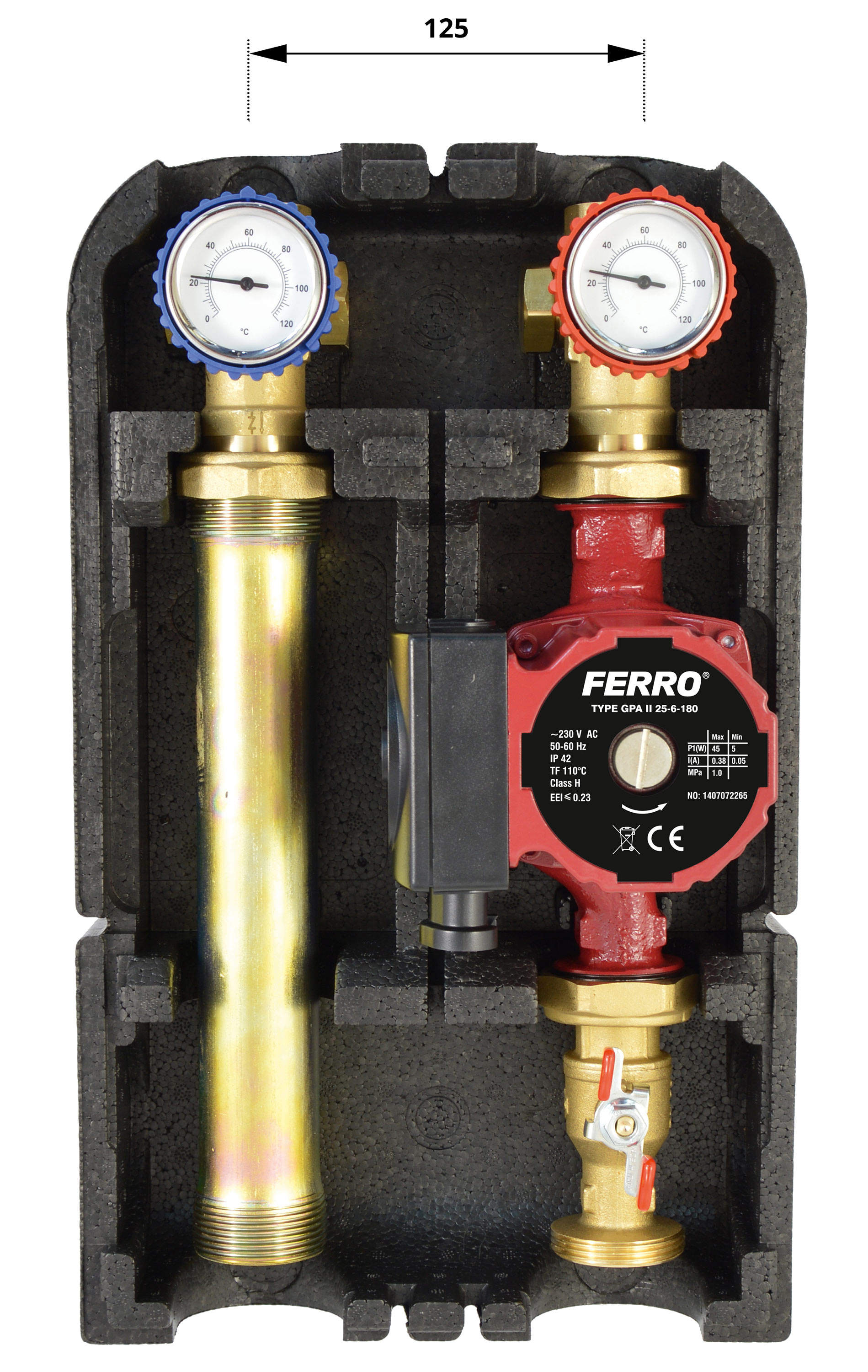

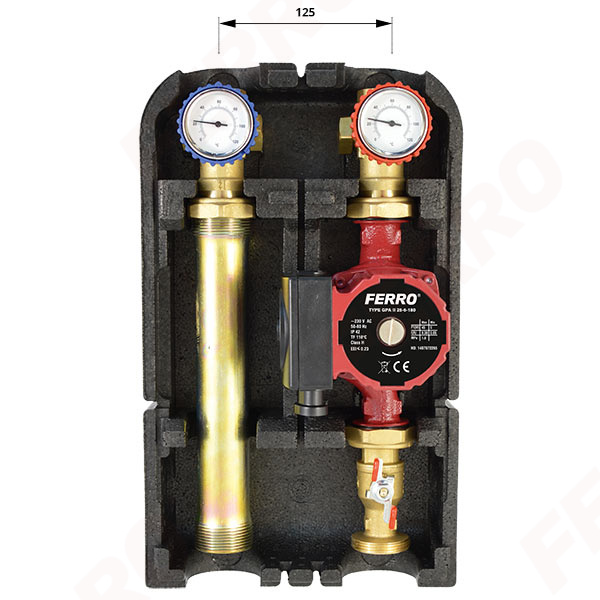

Pump group 6/4”

Individual packaging: 1
with a barcode for retail sale

Collective packaginig: -

Download PDF file with card product

• Equipment:
  • 25-6-180 electronic circulation pump
  • cut-off ball valve
  • ball valves with built-in thermometers in handles
  • check valve on the return side
  • lower connections: 6/4” M for flat gasket
  • upper connections: 1” F
• Technical parameters:
  • max. working temperature: 90°C
  • max. working pressure: 1.0 MPa (10 bar)
  • thermometer measuring scope: 0 - 120°C
  • sealing: PTFE, EPDM
