With a barcode for retail sale

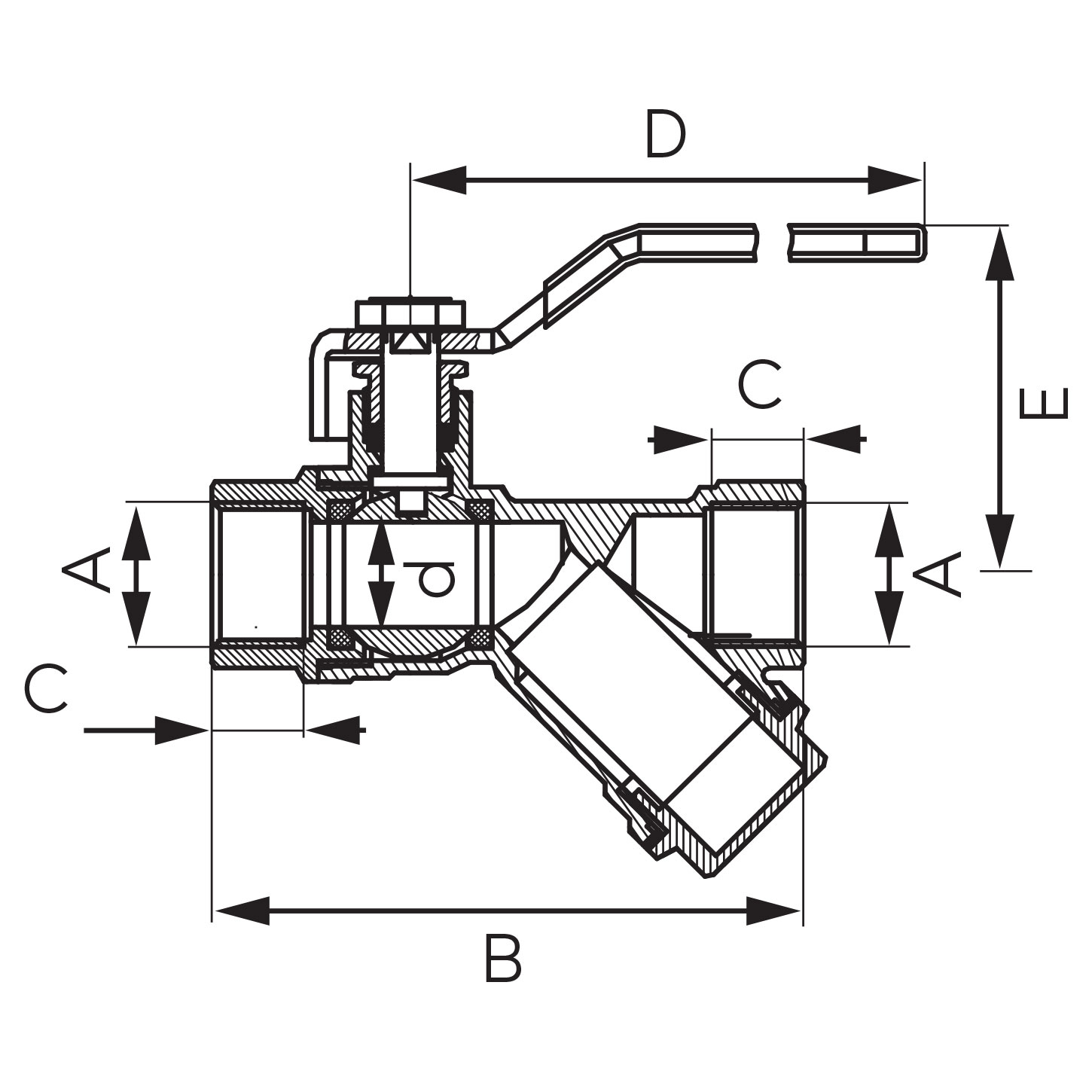

Index | Size of connectors | DN | A | B [mm] | C [mm] | D [mm] | d [mm] | E [mm] | Individ. pack. | Bulk pack. | R* |
KZFH1 | 1/2” | 15 | Rp ½ | 83,5 | 13 | ~94 | 15 | 49 | 6 | 72 | KZFH1W |
KZFH2 | 3/4” | 20 | Rp ¾ | 103,5 | 14,5 | ~102 | 20 | 55 | 4 | 36 | KZFH2W |
KZFH3 | 1” | 25 | Rp 1 | 121 | 16,8 | ~116 | 25 | 66 | 4 | 32 | KZFH3W |
KZFH4 | 5/4” | 32 | RP 1 ¼ | 143 | 18 | ~116 | 32 | 71 | 2 | 16 | - |
*R - Product in individual packaging with EAN code enabling retail sale.
