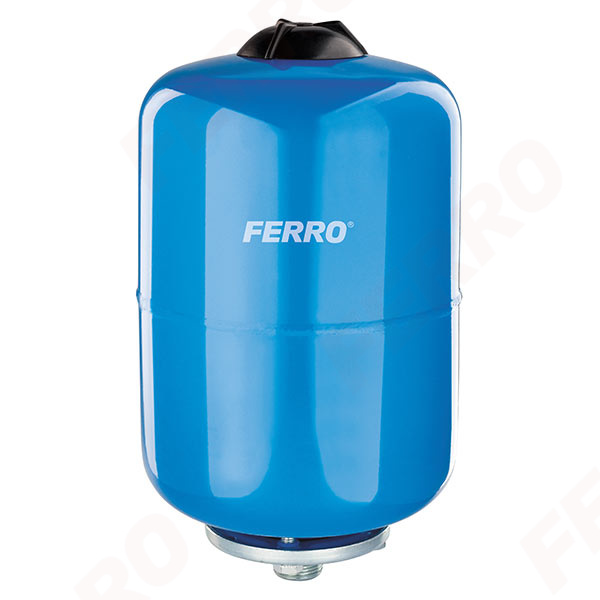

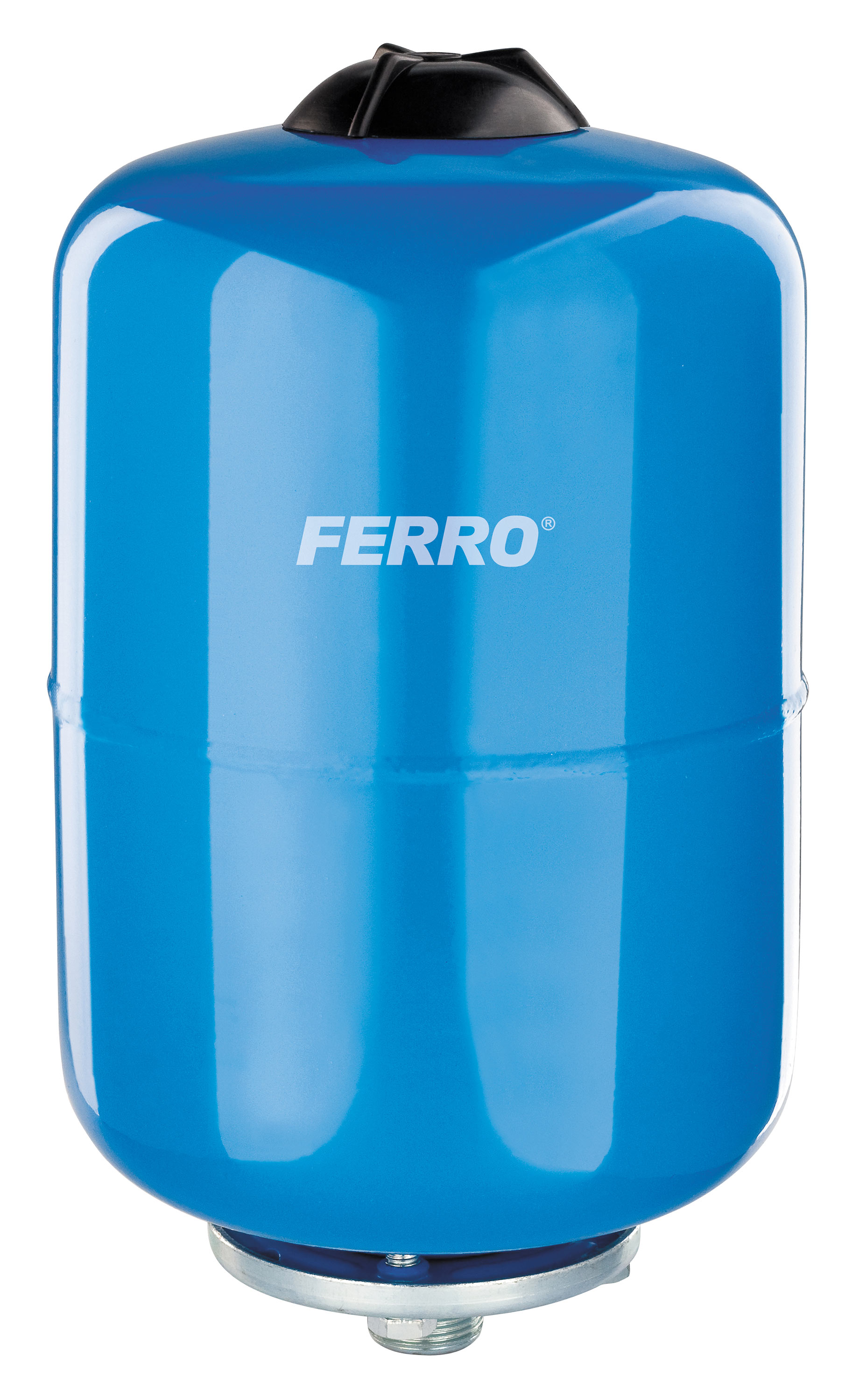

Sanitary water vessels - hanging

Sanitary water vessels - hanging

Sanitary water vessels - hanging

Code: CWU

Individual packaging: 1
with a barcode for retail sale

Collective packaginig: -

Download PDF file with card product

warranty: 2 years
max. working pressure: 10 bar
pre-pressure: 3 bar
working temperature: from -10°C to +100°C
membrane (replaceable): EPDM
colour: RAL 5015 (for M2: RAL 9010)

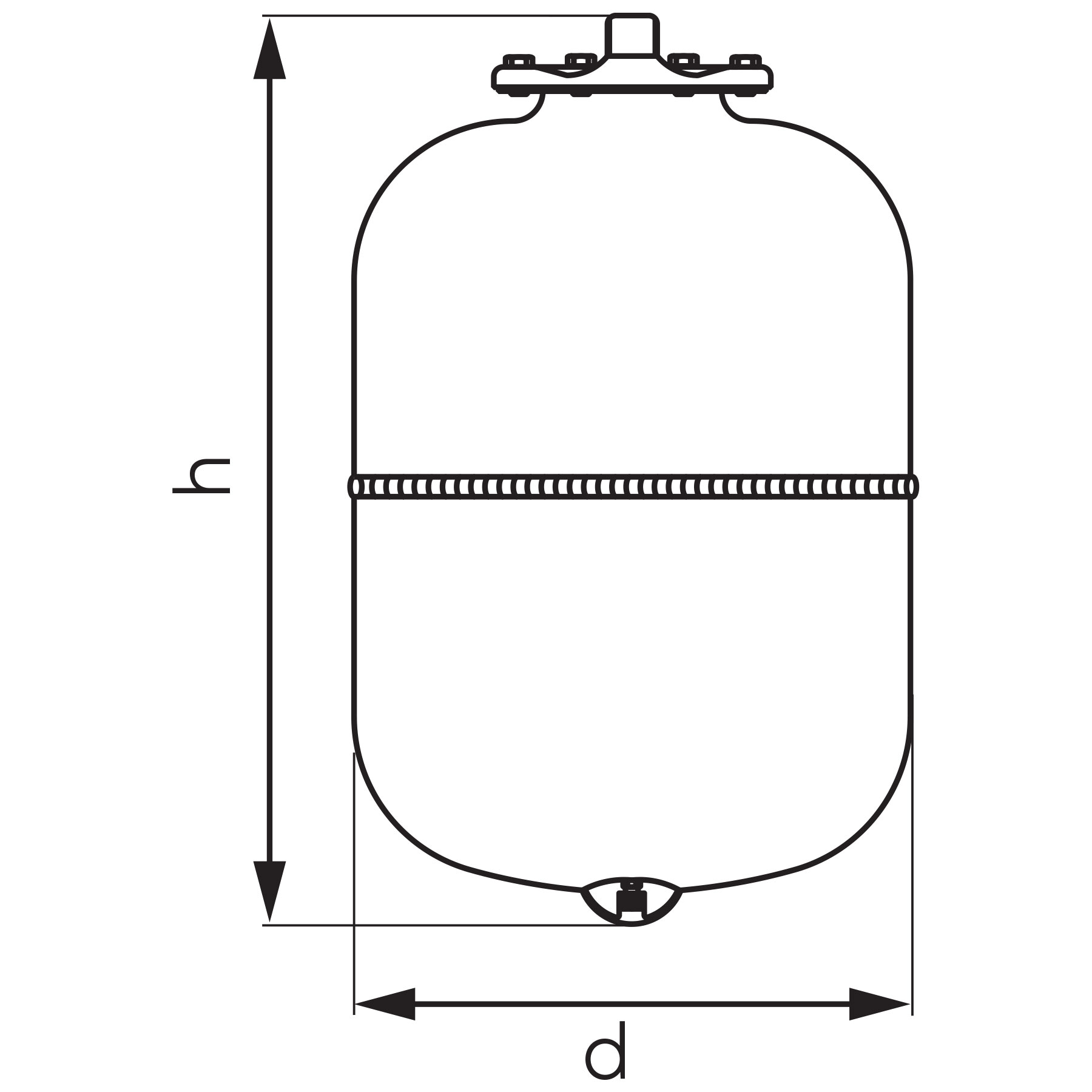

Code	Model	h [mm]	d [mm]	Connection	Volume [l]	Individ. pack.	Collect. pack.
CWU2W	M2	250	120	3/4”	2	1	-
CWU5W	A5	300	160	3/4”	5	1	-
CWU8W	A8	316	200	3/4”	8	1	-
CWU12W	A12	295	280	3/4”	12	1	-
CWU18W	A18	430	280	3/4”	18	1	-
CWU24W	A24	483	280	3/4”	24	1	-
CWU35W	A35	440	365	1”	35	1	-
