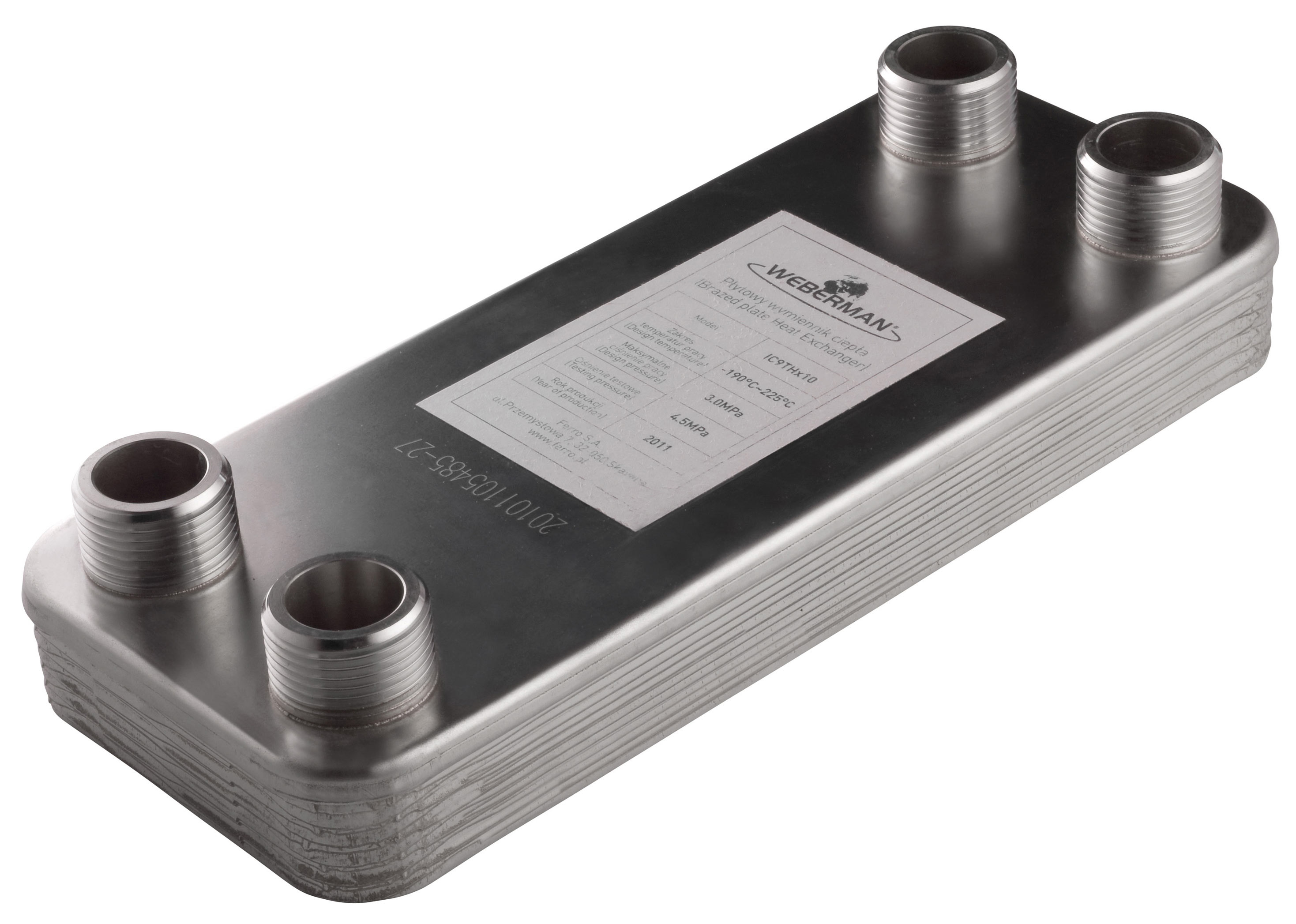

1” exchangers with insulation for the installations with thermo fireplace or solid fuel boiler
×
×
Code:
IC9TH
Download PDF file with card product
liquids: up to 40% glycol solution
application:
central heating installations
thermal chimney
solid-fuel boilers
hot water systems
solar installations
specifications:
flow rate: 12 m³/h (maximum)
operating pressure: 30 bar (maximum)
operating Temperature: -190 do 220˚C
testing pressure: 40 bar
connections: 1”
NP* - number of plates
Code
Power range [kW]
Heat source side [°C]
Installation side [°C]
Individual packaging
Collective packaginig
IC9THx15
15-20kW
90/70
85/65
80/60
50/70
45/65
40/60
1
1
IC9THx20
20-30kW
1
1
IC9THx30
30-45kW
1
1
