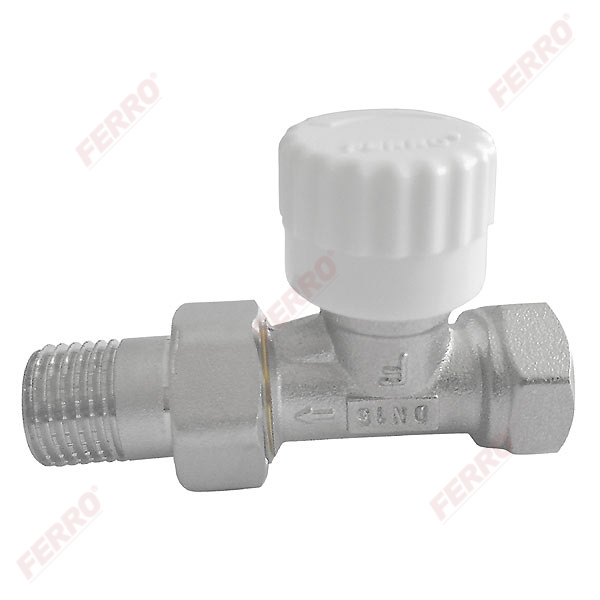

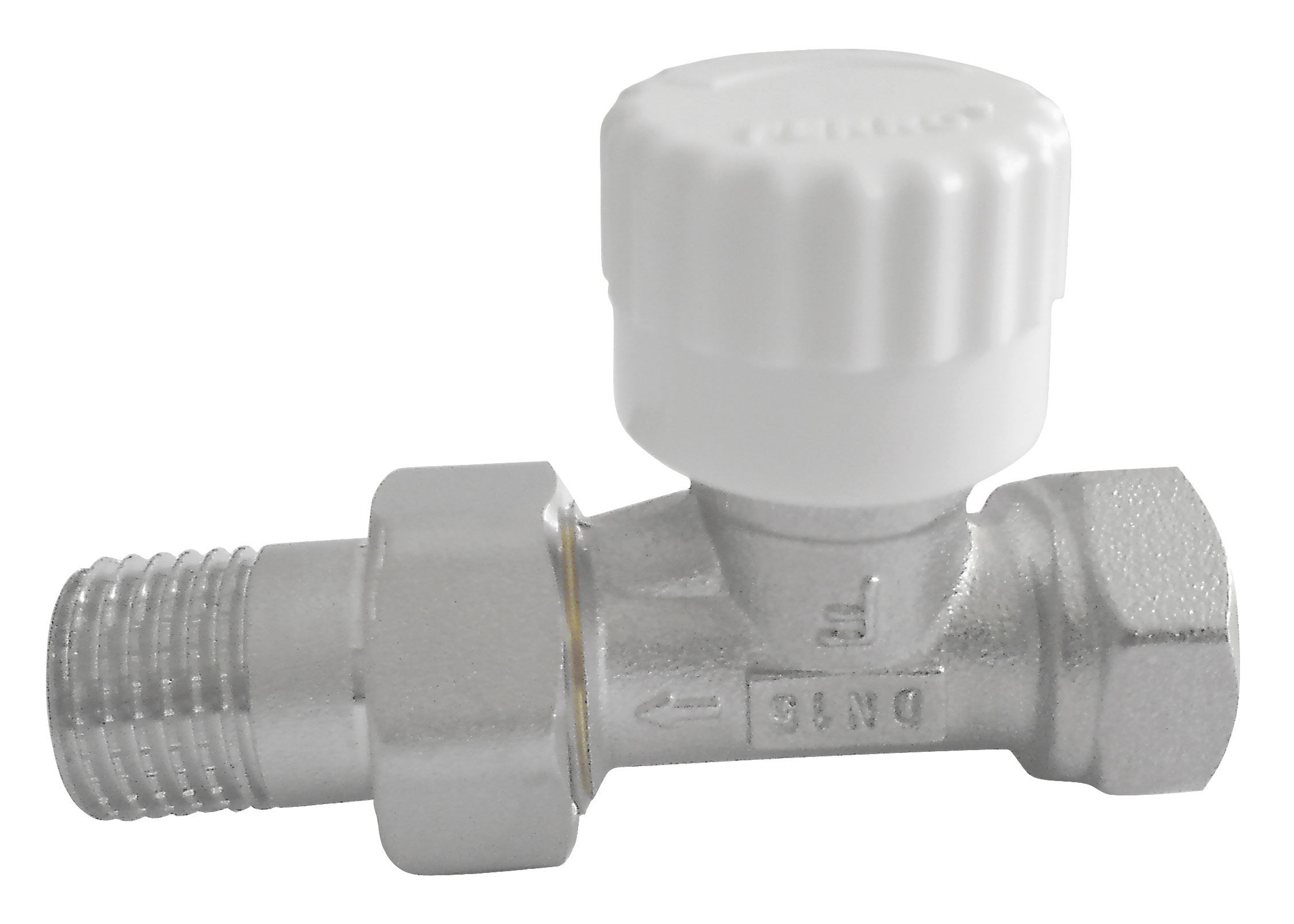

Straight thermostatic valve

Straight thermostatic valve

Straight thermostatic valve

Index: ZT

Download PDF file with card product

10 years warranty
max. permissible static pressure: 1 MPa
max. permissible pressure difference: 0.06 MPa
max. working temperature: 100°C
connection thread for head: M30 x 1.5

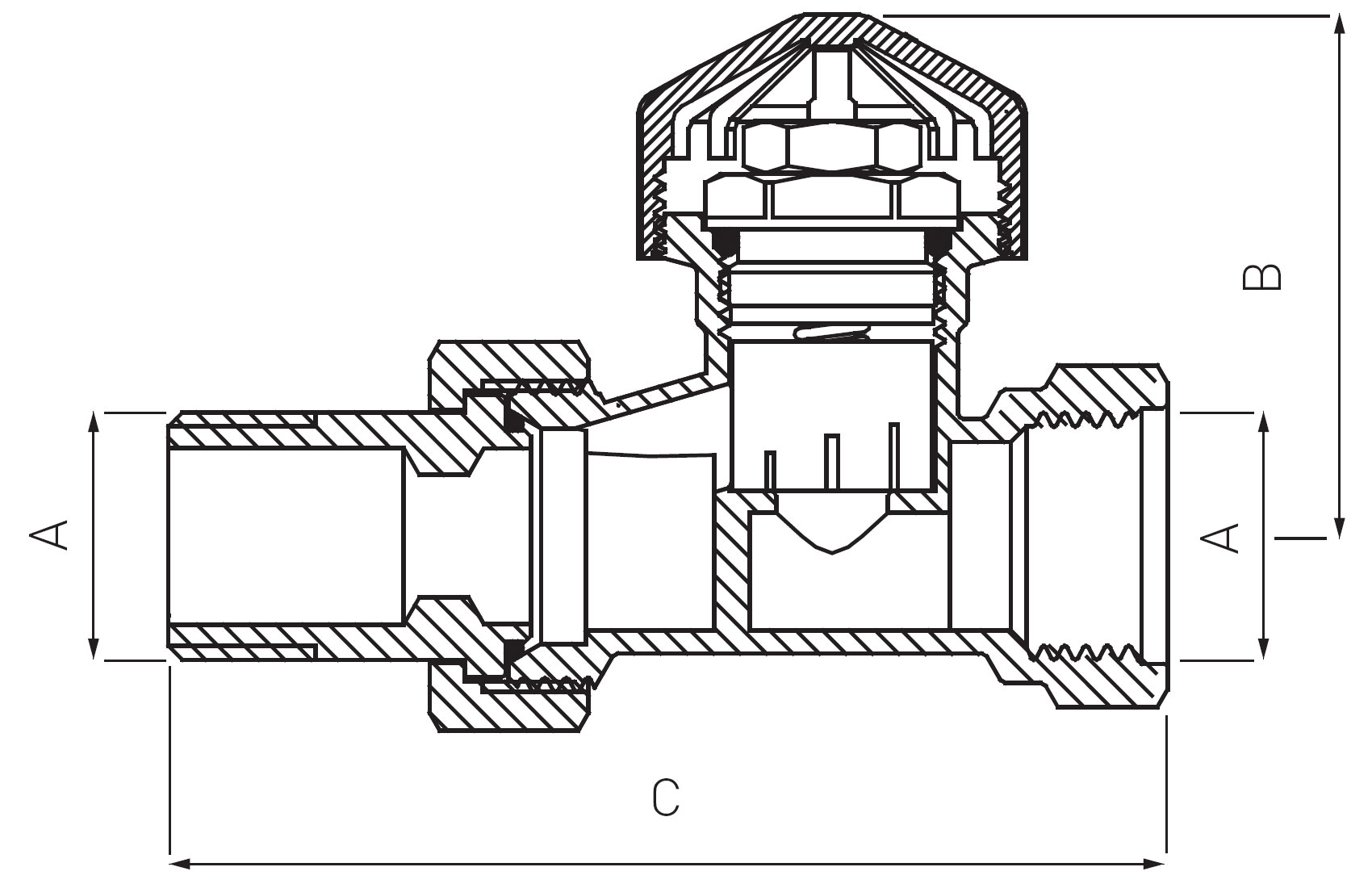

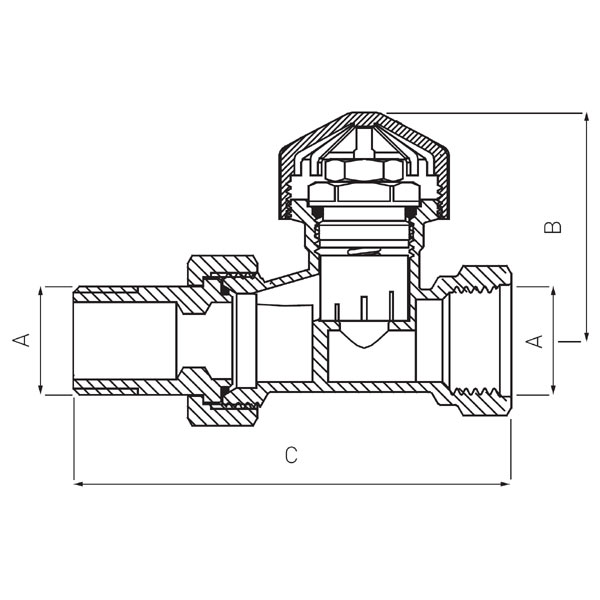

Index	DN	A	B [mm]	C [mm]	Nominal flow q_mN	Pressure difference impact	Pre-setting regulation	Individ. pack.	Bulk pack.	R*	E*
ZT2Y	15	Rp 1/2	44	85	0,130m³/h	0,8K	Yes	9	108	-	ZT2YE
ZT2YS	15	Rp 1/2	44	85	0,137 m³/h	0,3 K	No	9	108	ZT2YSW	-
ZT3Y	20	Rp 3/4	45,5	100	0,162m³/h	0,6K	Yes	8	72	-	ZT3YE

*R - Product in individual packaging with EAN code enabling retail sale.
*E - Products on euro-slot with barcode enabling retail sale.
