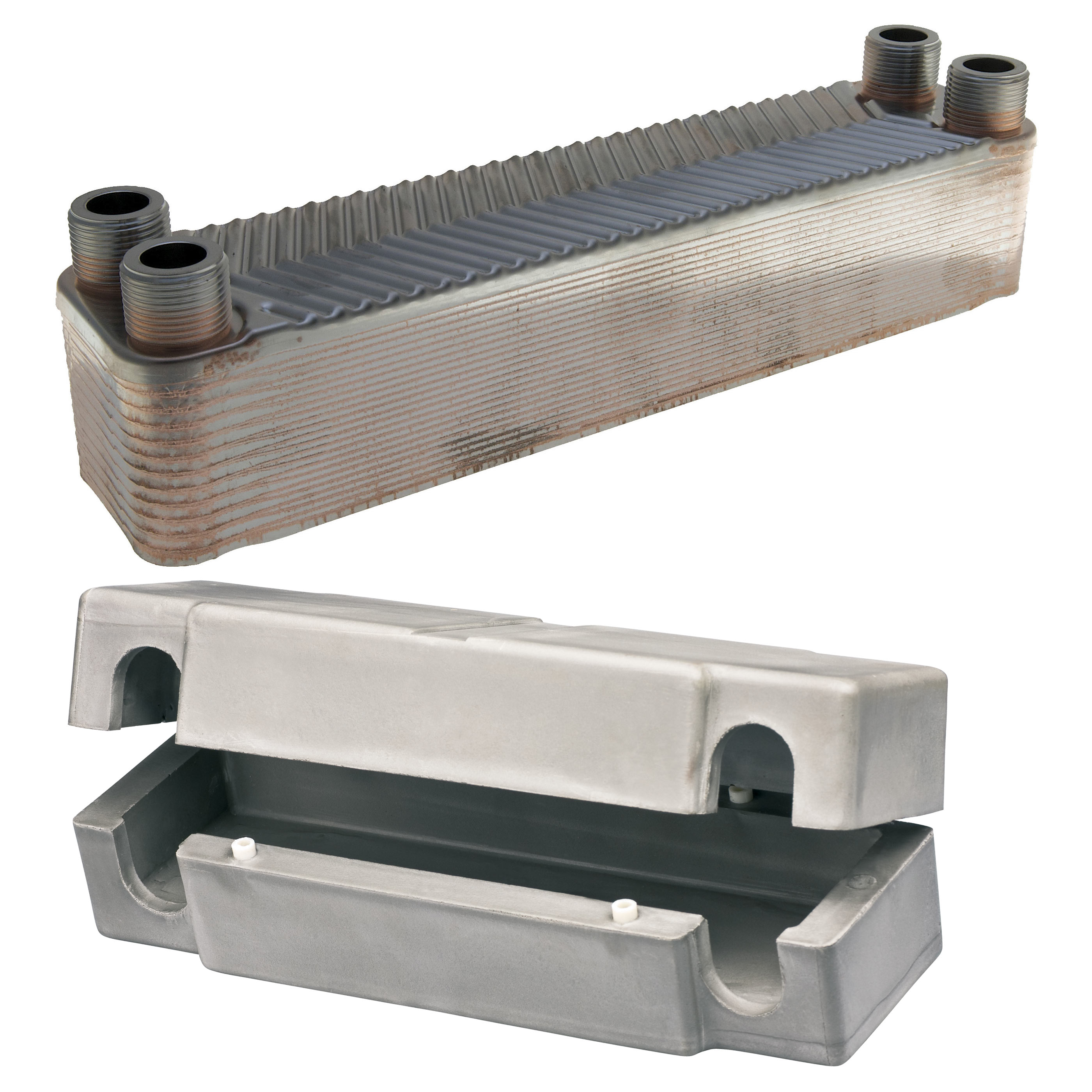

3/4” exchangers with insulation for the installations with thermo fireplace or solid fuel boiler

3/4” exchangers with insulation for the installations with thermo fireplace or solid fuel boiler

3/4” exchangers with insulation for the installations with thermo fireplace or solid fuel boiler

3/4” exchangers with insulation for the installations with thermo fireplace or solid fuel boiler

3/4” exchangers with insulation for the installations with thermo fireplace or solid fuel boiler

Code: IC8TH


Opakowanie jednostkowe Individual packaging: 1
with a barcode for retail sale

Collective packaginig: 1

Download PDF file with card product


  • liquids: up to 40% glycol solution
  • application:
    • central heating installations
    • thermal chimney
    • solid-fuel boilers
    • hot water systems
    • solar installations
  • specifications:
    • flow rate: 4 cub m3/h (maximum)
    • operating pressure: 16 bar (maximum)
    • operating temperature: 135˚C (max)
    • testing pressure: 20 bar
    • connections: external 3/4” thread

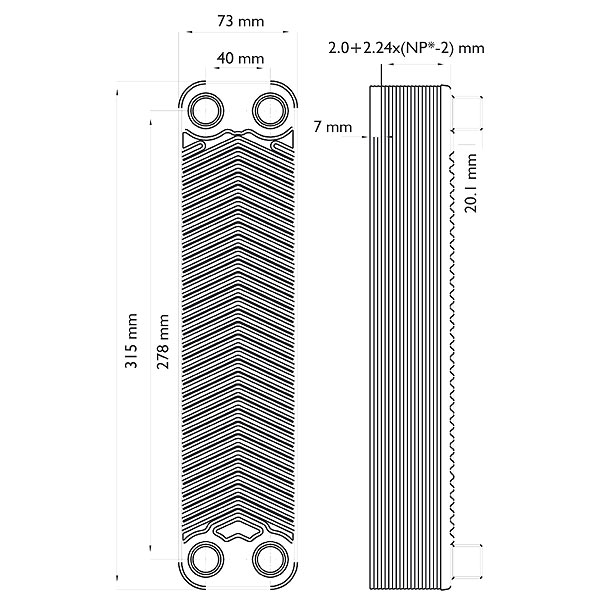

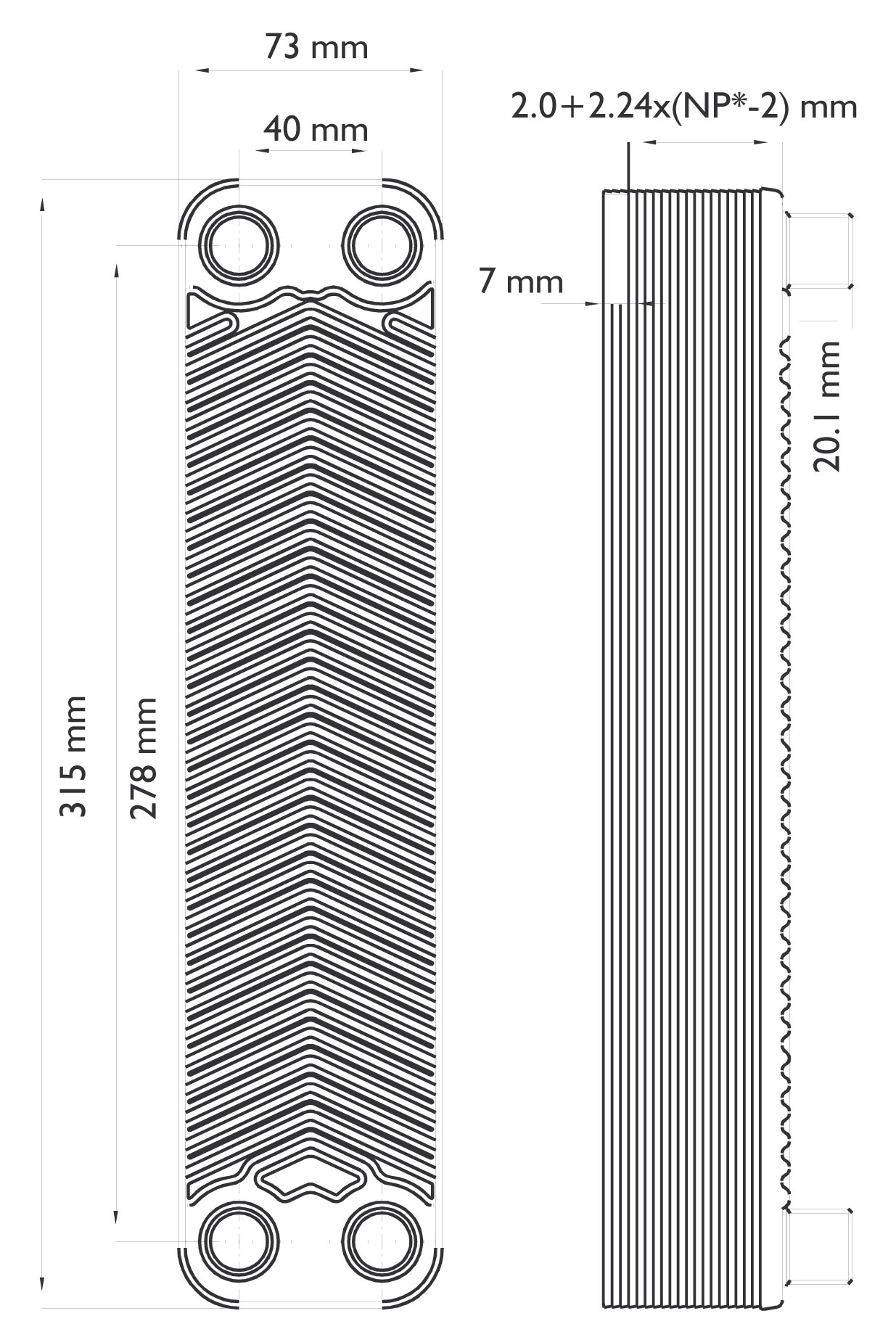

    • NP* - number of plates
Code Power range [kW] Heat source side [°C] Installation side [°C] Individual packaging Collective packaginig
IC8THx10 10-15 90/70
85/65
80/60
50/70
45/65
40/60
1 1
IC8THx20 15-25 90/70
85/65
80/60
50/70
45/65
40/60
1 1
IC8THx24 25-30 90/70
85/65
80/60
50/70
45/65
40/60
1 1
IC8THx30 35-45 90/70
85/65
80/60
50/70
45/65
40/60
1 1
