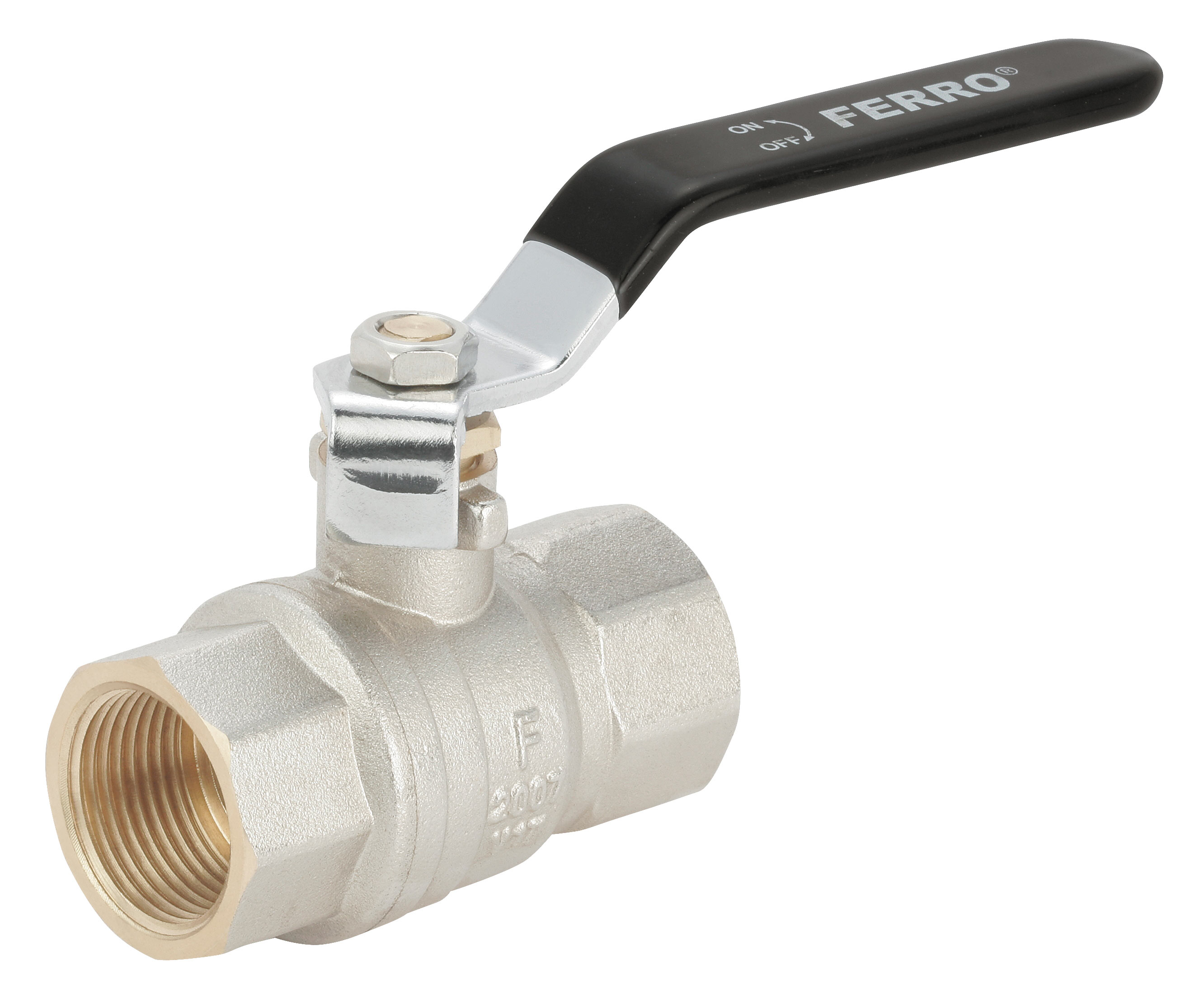

Herkules ball valve type V17

Herkules ball valve type V17

Herkules ball valve type V17

Code: KPH

Download PDF file with card product

15 years warranty
NICKEL FREE 2018 - The surface of the valve in contact with water is not nickle-plated
Utility Valves:
- water
- 50% glycol
- compressed air
female - female
full bore
reinforced with gland and double stem seal
handle: metal lever
body and ball material: brass
material of ball and stem seals: PTFE
nominal pressure: 4,0 MPa (40 bar)
maximum working temperature: 140°C

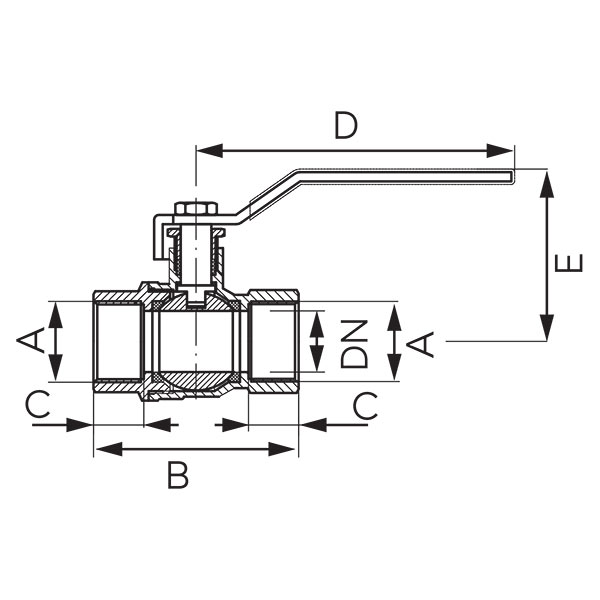

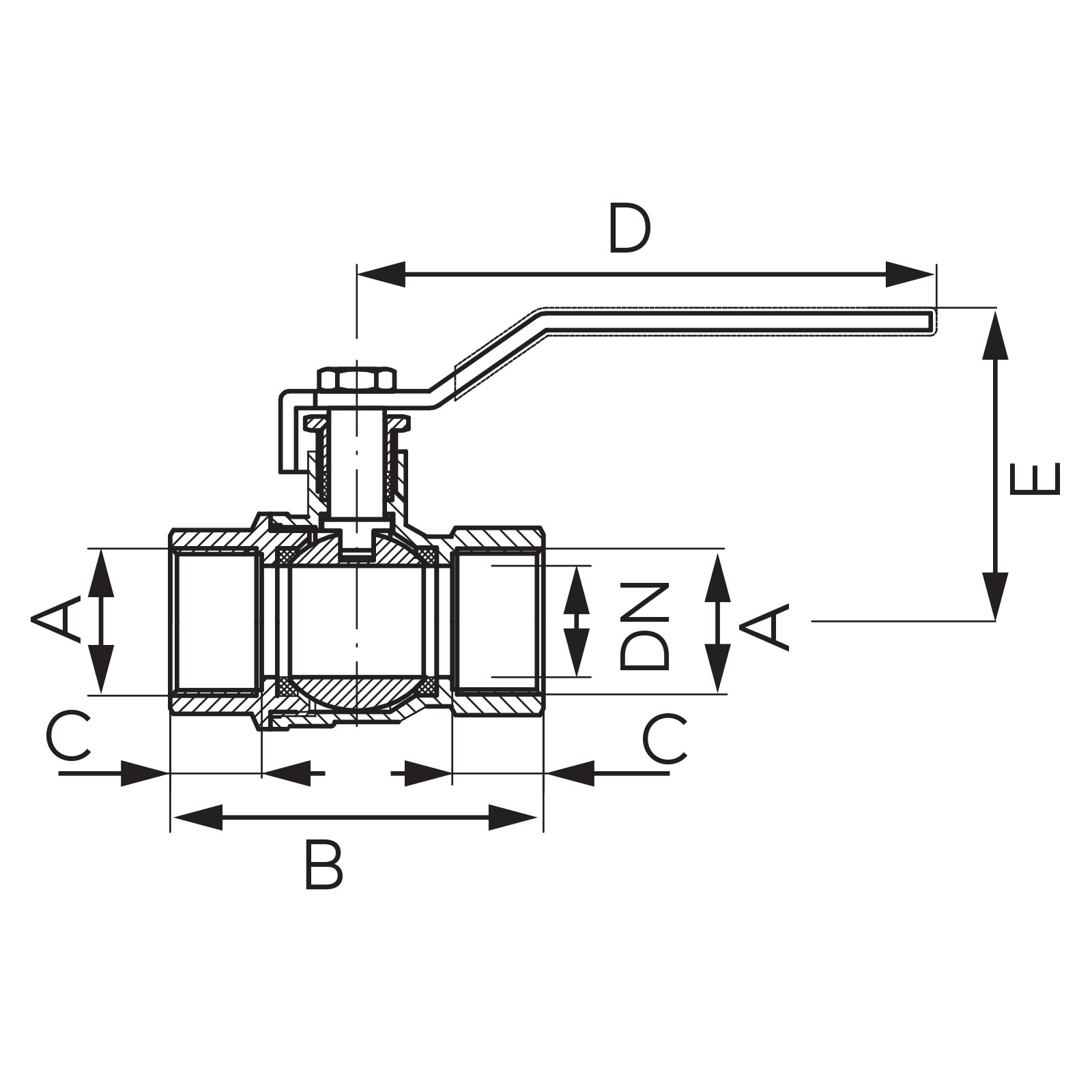

Code	Size of connectors	DN	A	B [mm]	C [mm]	D [mm]	E [mm]	Individual packaging	Collective packaginig	R*	E*
KPH1	1/2"	15	Rp 1/2	56	13	~100	49	10	120	KPH1W	KPH1E
KPH2	3/4"	20	Rp 3/4	66	14,5	~102	55	9	81	KPH2W	KPH2E
KPH3	1"	25	Rp 1	76	16,8	~116	64	8	48	KPH3W	KPH3E
KPH4	1 1/4”	32	Rp 1 1/4	86	18	~116	71	4	36	KPH4W	-
KPH5	1 1/2”	40	Rp 1 1/2	94	18	~149	80	2	18	KPH5W	-
KPH6	2"	50	Rp 2	115	23	~149	90	2	12	KPH6W	-

*R - Product in individual packaging with EAN code enabling retail sale.
*E - Products on euro-slot with barcode enabling retail sale.
