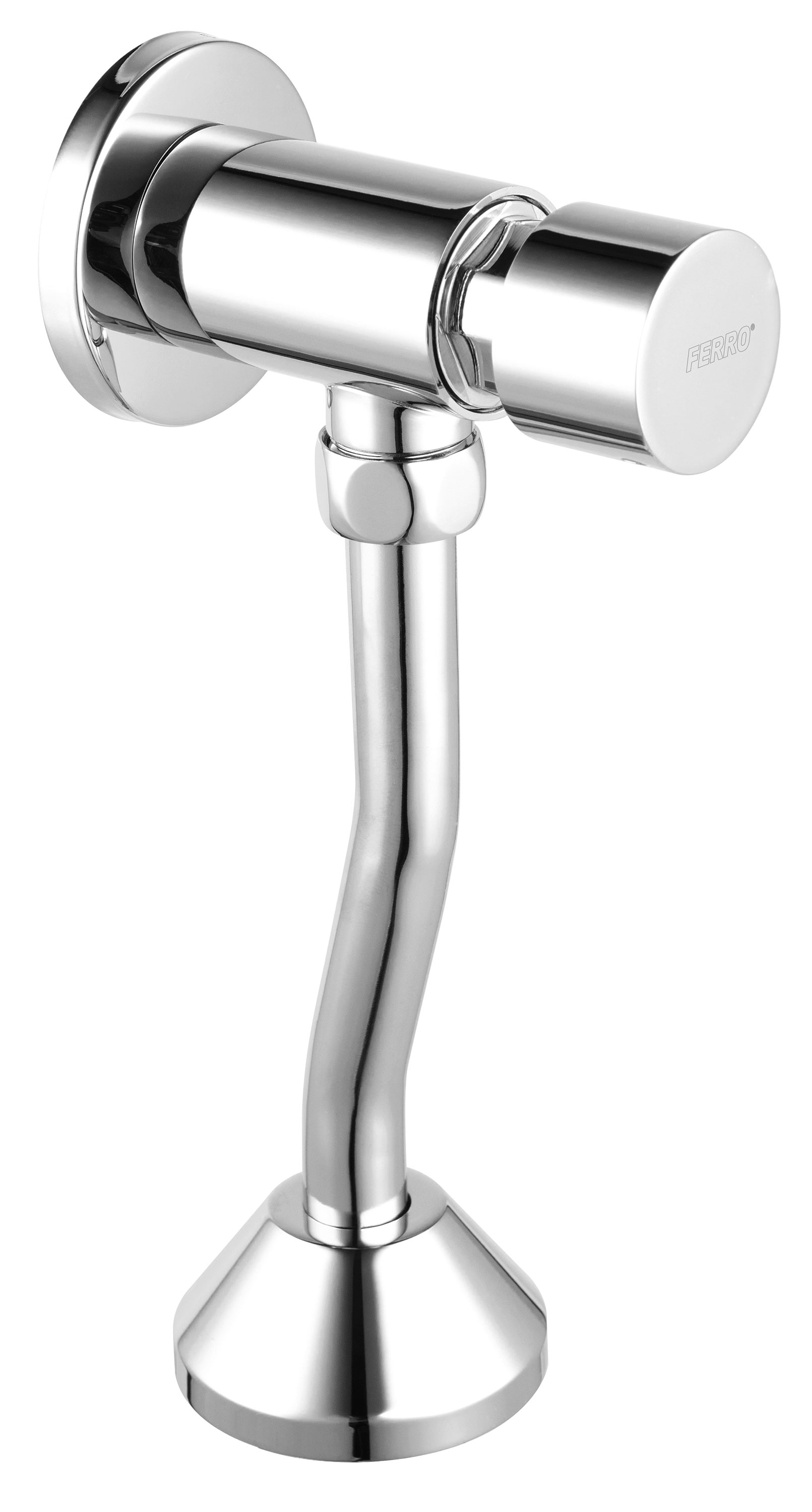

PRESSTIGE PRO urinal valve, time and flow controll, chrome
The time urinal valve from the PRESSTIGE PRO collection is a practical solution for public and commercial washrooms. The chrome, high-gloss finish gives the fitting a clean, modern look that blends well with contemporary sanitary ware.
The factory-set 10-second flow at 1 bar supports economical water use, while the 1.5-litre valve classification helps maintain consistent flushing performance. The recommended dynamic pressure range of 1–4 bar suits standard installations, and the minimum flow rate of 0.15 l/s keeps operation reliable even with lower system pressure.

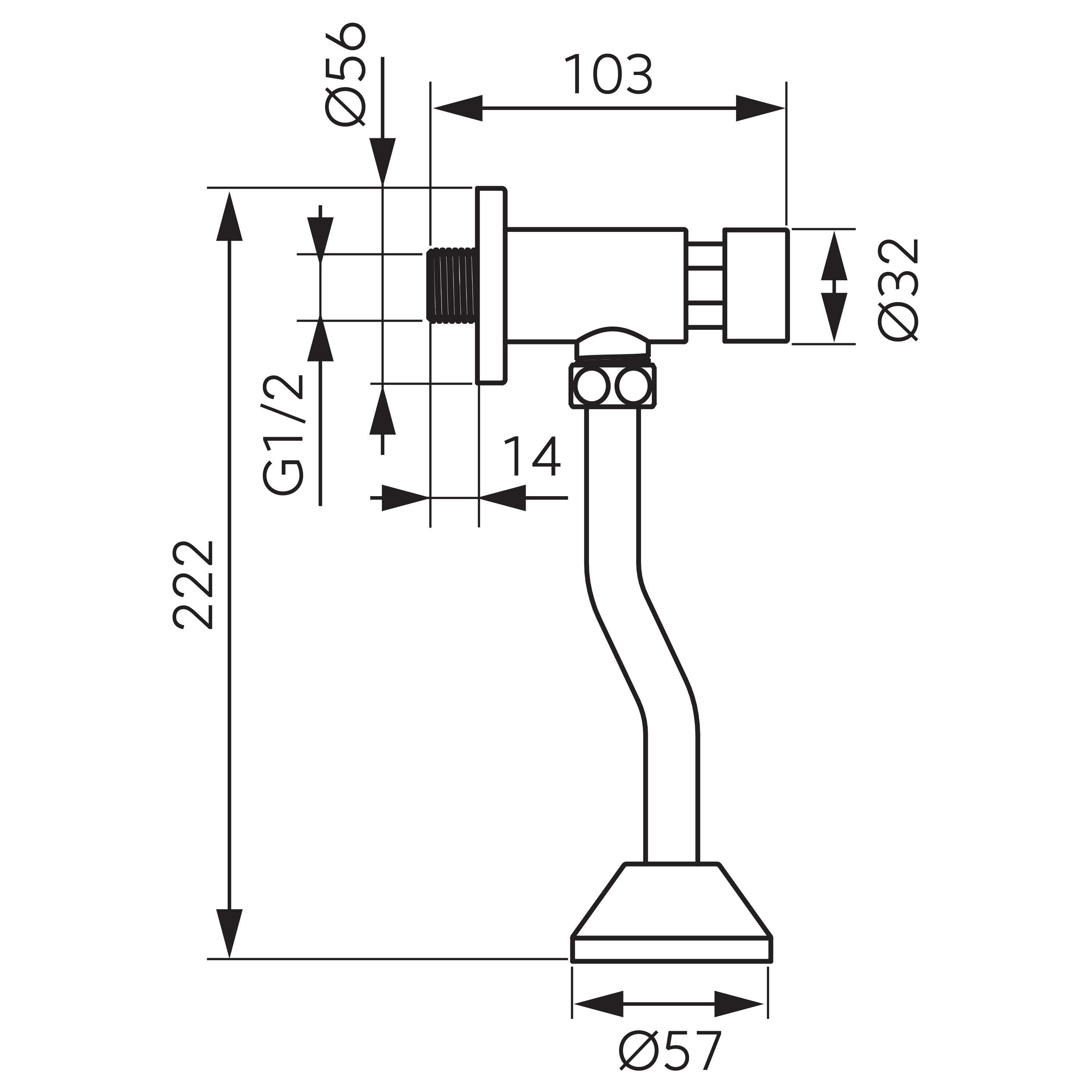

The solid brass body resists corrosion and extends the service life of the valve, and the smooth chrome coating stays attractive with regular care according to the user manual. Wall-mounted installation with a single mounting hole and a G1/2 male connection simplifies fitting in both new projects and refurbishments. Compact dimensions of 222 x 57 x 103 mm make it easy to position above the urinal.
The PRESSTIGE PRO time urinal valve is a dependable choice for facilities where durability, controlled water consumption and a neat, uniform appearance of sanitary fittings are essential.
- Minimum volume flow rate of the water supply Qmin [l/s]:
- 0.15
- No. of assembly holes:
- 1
- Outflow time factory setting (for dynamic pressure of 1 bar) [s]:
- 10
- Recommended dynamic pressure [bar]:
- 1 - 4
- Classification of time-flow valve:
- 1,5 liter valve
- Height [mm]:
- 222
- Water temperature [°C] max.:
- 25
- Force required to activate the outflow [N]:
- 26
- Width [mm]:
- 57
- Coating type:
- shine
- Unit packaging method:
- box
- Mixer type:
- self-closing
- Assembly:
- wall-mounted
- Product maintenance:
- Follow the instructions
- Style:
- traditional
- Mixer category:
- special
- Type and diameter of connections:
- water installation connection: 1 x G1/2" male thread
- Body material/assembly material:
- brass
chrome
