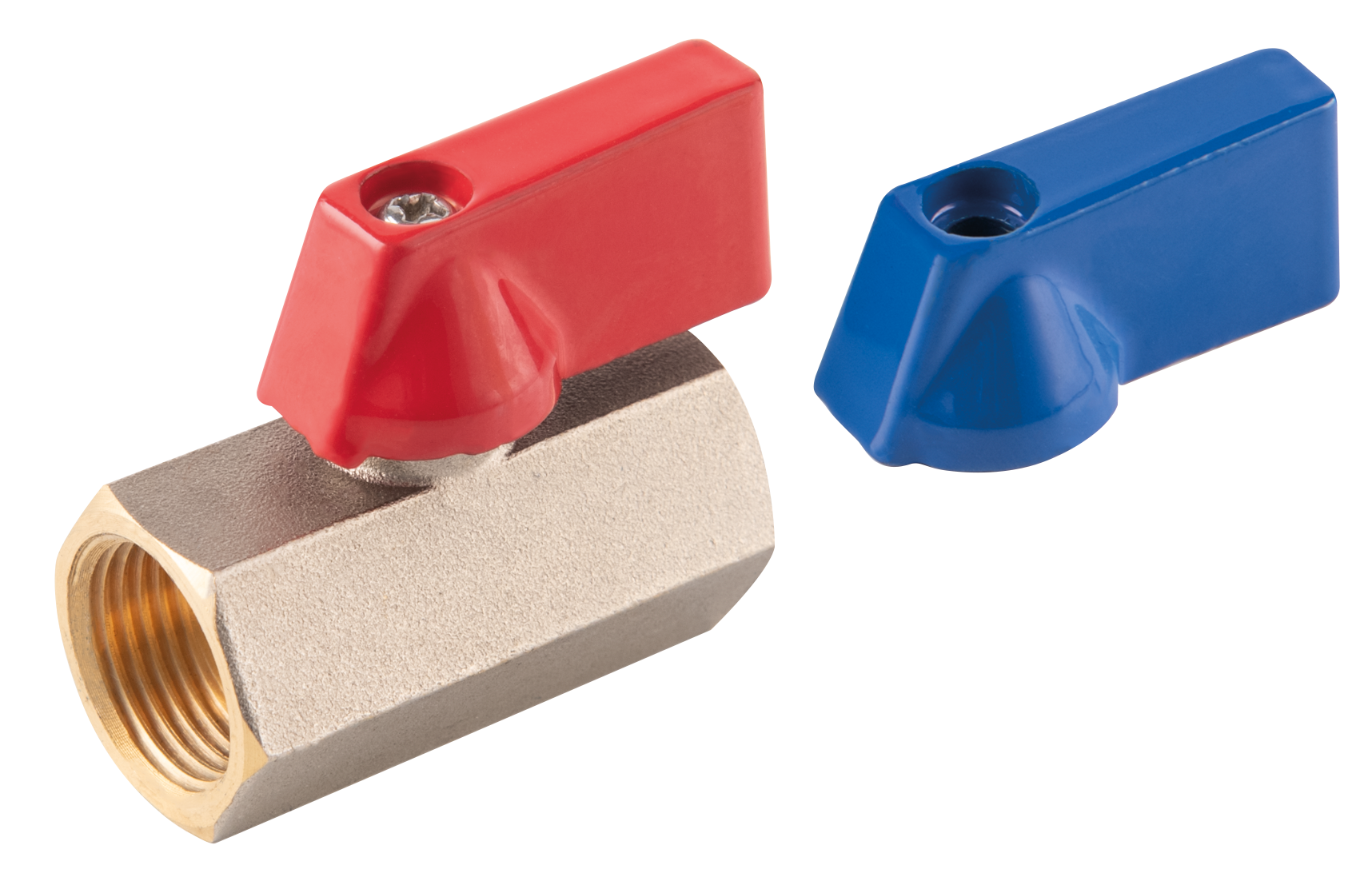

Mini ball valve, 1/2" F-F, F-Comfort
F-COMFORT
The mini nut-to-nut ball valve from the F-COMFORT collection is a compact fitting for water installations, designed for precise shut-off and control in domestic systems. Its small DN 15 size and G1/2 connections fit standard plumbing layouts, making it a practical choice for tight spaces and concealed installations.
The valve reaches a flow coefficient of 4.68 m³/h, so it handles typical household water demand with ease. It operates safely at a nominal pressure of 10 bar and a working temperature up to 100°C, suitable for both cold and hot water. The butterfly handle offers quick, intuitive operation, while the flow class A supports efficient water management in everyday use.
The durable body made of CW617N-4MS brass with reduced lead and nickel content is tailored to modern safety expectations. Nickel-free internal surfaces stay in direct contact with water, and PTFE seals on the ball and stem enhance resistance to wear. The nut-to-nut connection simplifies assembly, and interchangeable bands for marking hot/cold or supply/return lines help keep the system clearly organized.
Developed with Advanced Body Technology and awarded the Gold Medal at the 2020 Installation Fair, this mini ball valve stands out as a reliable, premium component for professional water installations and demanding renovation projects.
- Additional features:
- • CW617N-4MS brass - reduced lead and nickel content <br />• double steam sealing
- Included In Kit:
- red and blue handle
- Nominal pressure [bar]:
- 10
- Maximum operating temperature [°C]:
- 100
- Barcode:
- bar code packaging for retail sale
- Ball valve ball material :
- brass
- Type of holder:
- butterfly
- NICKEL FREE:
- yes
- Connection type:
- screw out-screw out
- Gland:
- no
- For multi-layer pipes:
- no
- Drain nozzle:
- no
- Suction strainer:
- no
- Air vent:
- no
- Full bore:
- no
- Rosette included:
- no
- Built-in filter:
- no
- Ball sealing material :
- PTFE
- Material of stem seal:
- PTFE
- Body material/assembly material:
- brass
- Media:
- water
