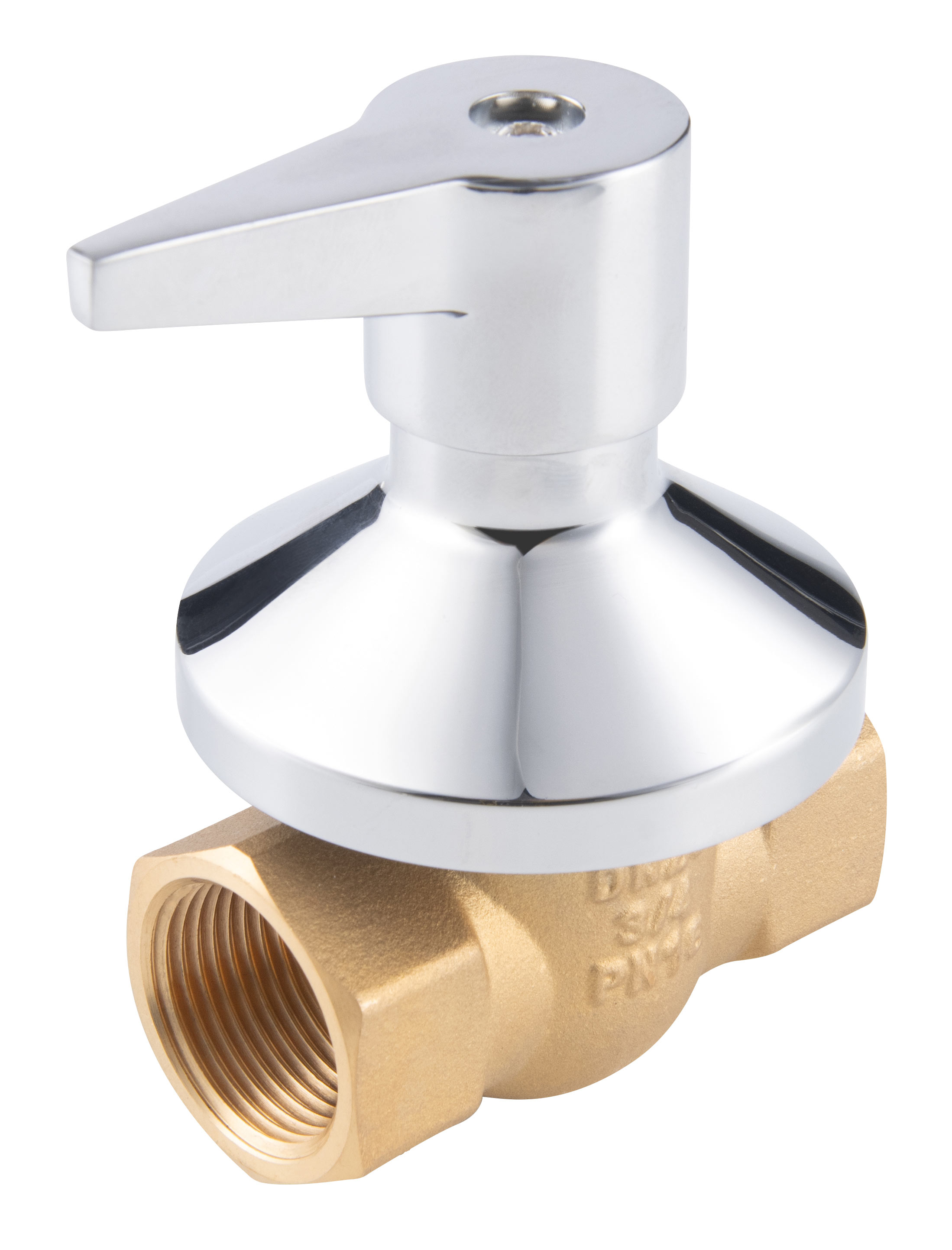

Concealed ball valve with lever and rosette 1/2" F-F F-Power
F-POWER
The concealed nut-to-nut ball valve with lever and rosette from the F-POWER collection is a robust installation component for professional water, glycol and compressed air systems. The compact DN15 body with full bore design supports high flow efficiency in domestic and light commercial applications.
The valve reaches a flow coefficient Kvs of 7.29 m³/h and operates safely at nominal pressure up to 16 bar, with a maximum working pressure of 30 bar and temperature up to 120°C. It suits water, 50% glycol mixtures and compressed air, so it fits a wide range of heating and utility installations. The included rosette neatly finishes the wall opening and enhances the look of visible plumbing.
The durable CW617N-4MS brass body with reduced lead and nickel content is suitable for demanding systems, while the Nickel Free design keeps media-contact surfaces free from nickel. A brass ball with PTFE seals and EPDM O-rings on the stem supports long-term tightness. The nut-to-nut 1/2" connection simplifies assembly, and the ergonomic lever handle enables quick, precise shut-off.
Advanced Body Technology and multi-stage quality control stand behind the reliability of this F-POWER ball valve, distinguished with the Quality International 2021 Gold Emblem. Clear hang tags and interchangeable identification bands for hot/cold or supply/return lines streamline installation and service, making it a smart choice for premium plumbing and heating projects.
- Additional features:
- • CW617N-4MS brass - reduced lead and nickel content <br />• concealed
- Maximum operating temperature [°C]:
- 120
- Nominal pressure [bar]:
- 16
- Maximum operating pressure [bar]:
- 30
- Barcode:
- bar code packaging for retail sale
- Ball valve ball material :
- brass
- Type of holder:
- lever
- Material of stem seal:
- EPDM (o-ring 3 psc)
- NICKEL FREE:
- yes
- Full bore:
- yes
- Rosette included:
- yes
- Connection type:
- screw out-screw out
- Gland:
- no
- For multi-layer pipes:
- no
- Drain nozzle:
- no
- Suction strainer:
- no
- Air vent:
- no
- Ball sealing material :
- PTFE
- Media:
-
- 50% glycol
- compressed air
- water
- Body material/assembly material:
- brass
