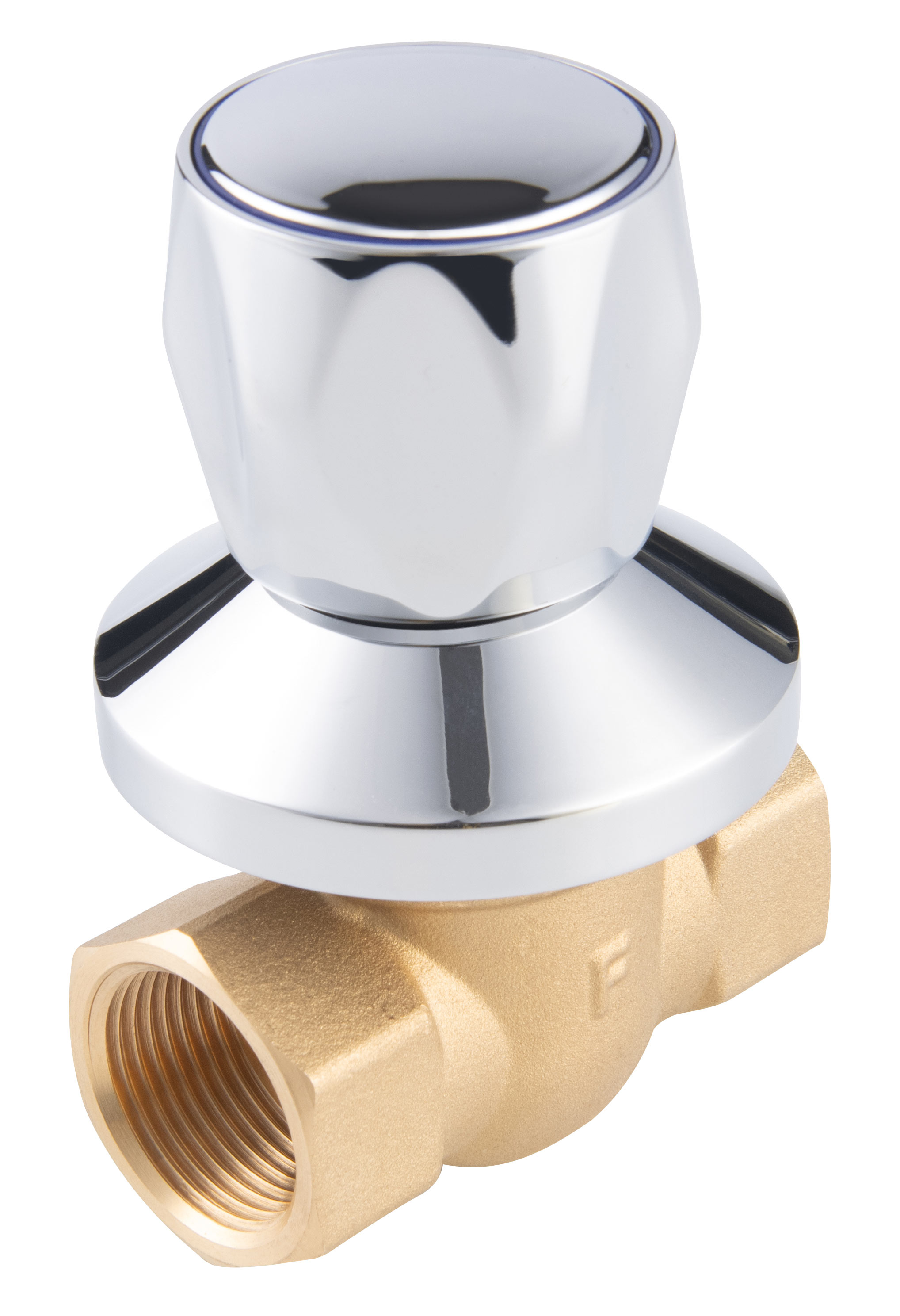

Concealed ball valve with knob and rosette 3/4" F-F, F-Power
F-POWER
The concealed nut-to-nut ball valve with handle and rosette from the F-POWER collection is a robust installation component for professional water, glycol and compressed air systems. The compact DN20 body with full bore design supports high flow rates, delivering up to 14 m³/h for efficient medium distribution in residential and commercial projects.
The durable brass CW617N-4MS body with reduced lead and nickel content is suitable for demanding installations, while the brass ball with PTFE seals and EPDM O-rings maintains tightness under working pressures up to 30 bar and temperatures up to 120°C. Nickel-free internal surfaces protect the medium from contact with nickel, an important aspect in modern building services engineering.
The nut-to-nut 3/4" connection simplifies integration with existing pipework, and the compact dimensions support installation in tight wall cavities. Advanced Body Technology enhances internal flow geometry, and the included rosette neatly covers the wall opening. Interchangeable marking bands for hot/cold or supply/return and informative tags under the handle help installers and service teams identify circuits at a glance.
The F-POWER concealed ball valve, distinguished with the Quality International 2021 Gold Emblem, is a reliable choice for high-performance plumbing and HVAC installations where durability, clear identification and safe operation matter.
- Additional features:
- • CW617N-4MS brass - reduced lead and nickel content <br />• concealed
- Maximum operating temperature [°C]:
- 120
- Nominal pressure [bar]:
- 16
- Maximum operating pressure [bar]:
- 30
- Barcode:
- bar code packaging for retail sale
- Ball valve ball material :
- brass
- Material of stem seal:
- EPDM (o-ring 3 psc)
- Type of holder:
- knob
- NICKEL FREE:
- yes
- Full bore:
- yes
- Rosette included:
- yes
- Connection type:
- screw out-screw out
- Gland:
- no
- For multi-layer pipes:
- no
- Drain nozzle:
- no
- Suction strainer:
- no
- Air vent:
- no
- Ball sealing material :
- PTFE
- Media:
-
- 50% glycol
- compressed air
- water
- Body material/assembly material:
- brass
