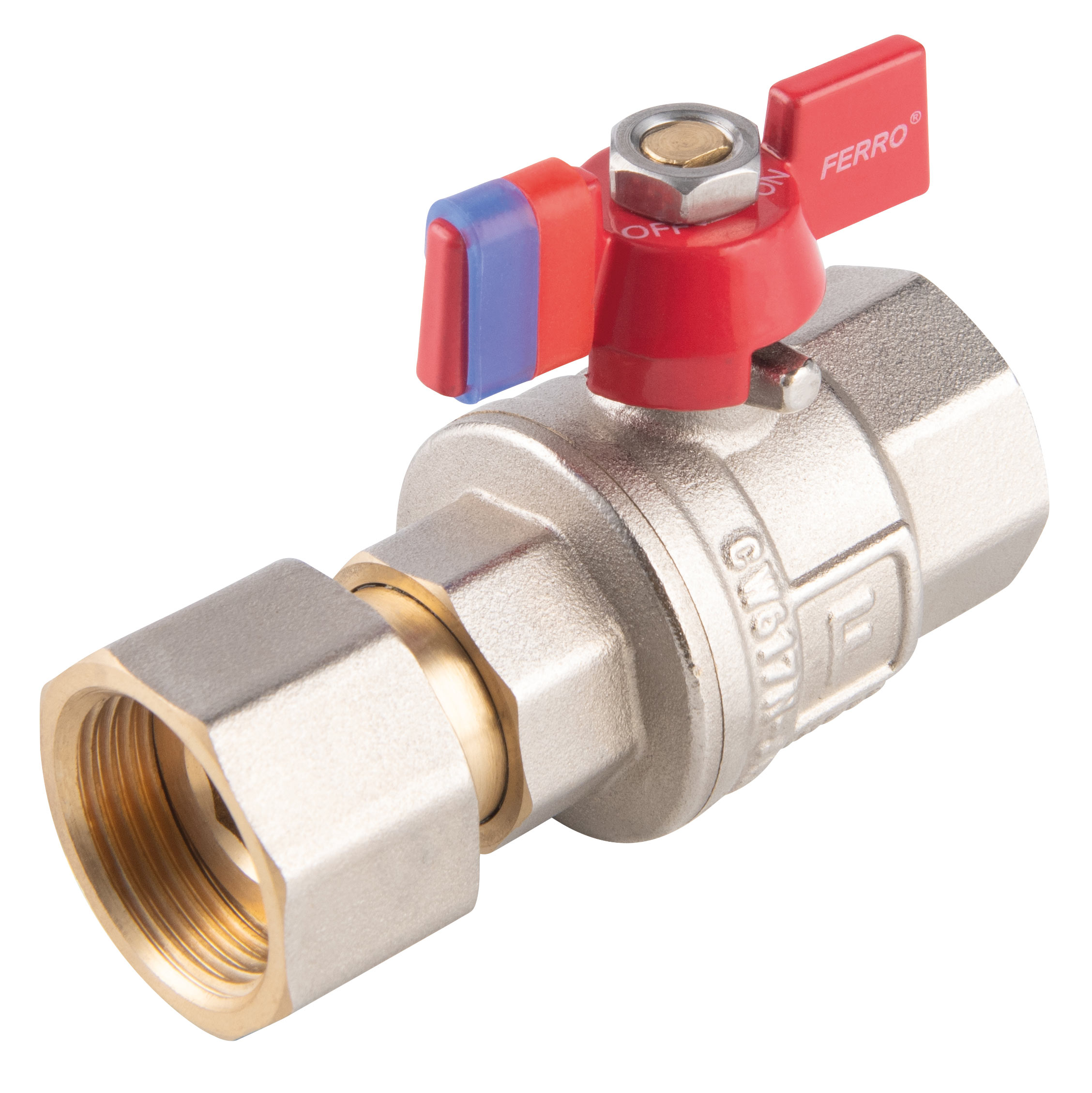

Ball valve with half union, female, 3/4" F-F, F-Power
F-POWER
The nut-to-nut ball valve with butterfly handle and union from the F-POWER collection is a robust installation component for water, 50% glycol and compressed air systems. Designed with Advanced Body Technology, it supports demanding domestic and light industrial applications where reliability and precise shut-off are essential.
The DN20 valve with 3/4" connections offers a flow capacity of 8.65 m³/h, so the installation maintains efficient medium circulation. A working pressure of up to 16 bar and maximum temperature of 120°C suits central heating and technical water systems. The integrated gland improves tightness over time, while the non-full-bore design supports controlled flow management in the line.
The durable body and ball made of CW617N-4MS brass with reduced lead and nickel content enhance resistance to corrosion and wear. Nickel-free internal surfaces support use in sensitive water installations, and PTFE seals on the ball and stem contribute to smooth operation and long service life. The nut-to-nut connection with union simplifies assembly and disassembly during maintenance, and the compact butterfly handle works well in confined spaces.
The F-POWER ball valve stands out through innovative details: interchangeable bands for marking hot/cold or supply/return lines and tag-style labels under the handle with key product data. Combined with barcode-ready packaging for retail sales and the Quality International 2021 Gold Emblem distinction, it becomes a dependable choice for professional installers and demanding users.
- Additional features:
- CW617N-4MS brass - reduced lead and nickel content
- Maximum operating temperature [°C]:
- 120
- Nominal pressure [bar]:
- 16
- Maximum operating pressure [bar]:
- 16
- Barcode:
- bar code packaging for retail sale
- Ball valve ball material :
- brass
- Type of holder:
- butterfly
- Connection type:
- screw out-screw out with a half union
- Gland:
- yes
- NICKEL FREE:
- yes
- For multi-layer pipes:
- no
- Drain nozzle:
- no
- Suction strainer:
- no
- Air vent:
- no
- Full bore:
- no
- Ball sealing material :
- PTFE
- Material of stem seal:
- PTFE
- Media:
-
- 50% glycol
- compressed air
- water
- Body material/assembly material:
- brass
