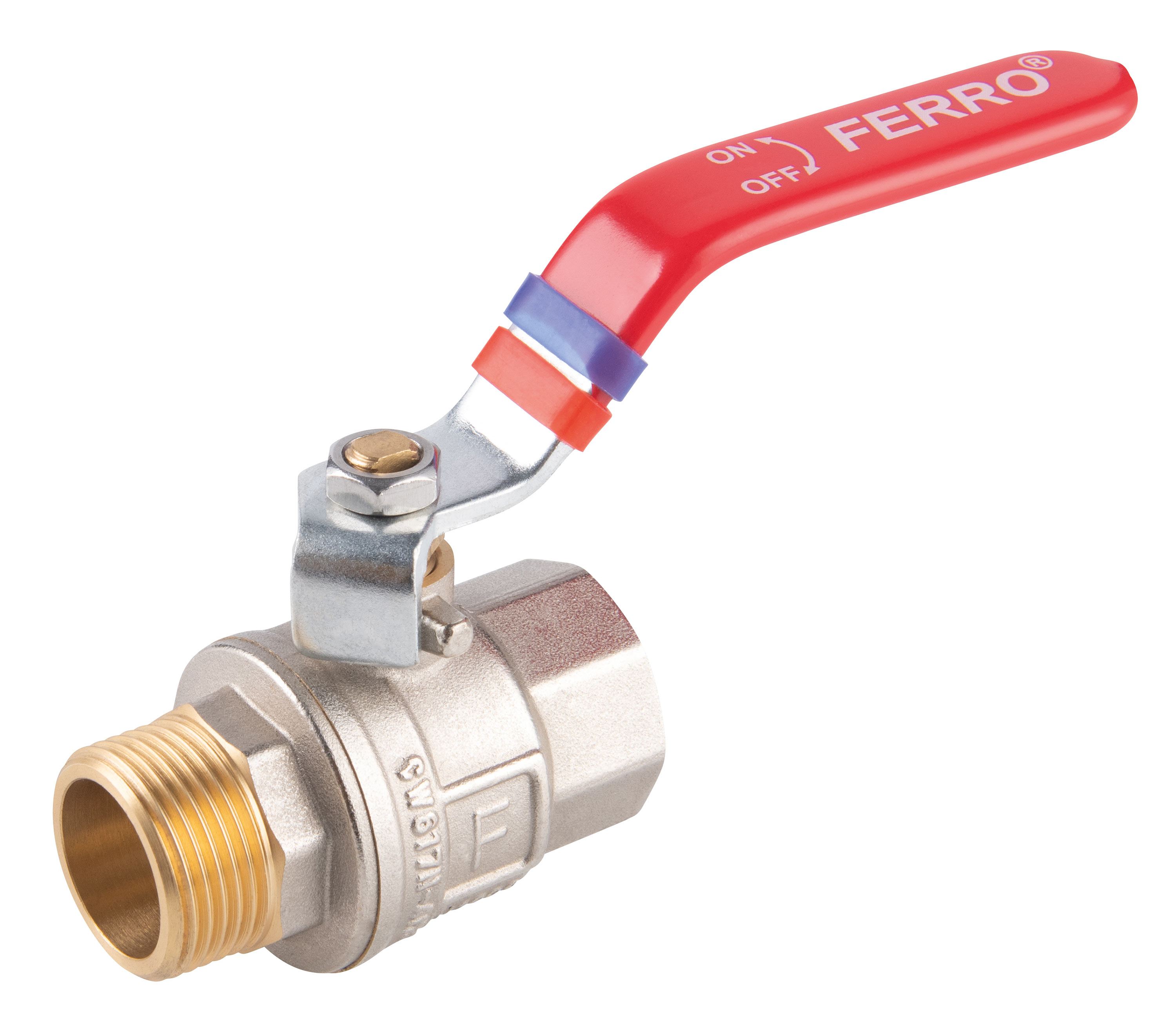

Ball valve, lever handle, 3/4" M-F, F-Power
F-POWER
Ball valve with lever handle from the F-POWER collection is a robust full-bore ball valve for demanding water, glycol and compressed air installations. The DN20 size with 3/4" nut–male connection suits standard domestic and light commercial systems, combining high flow capacity with precise shut-off.
The brass body with CW617N-4MS alloy features reduced lead and nickel content, while the Nickel Free design keeps all media-contact surfaces free from nickel, an advantage in drinking water and sensitive applications. A Kvs of 14.8 m³/h supports efficient flow, and the valve operates safely up to 30 bar and from -30°C to 120°C, so it handles both low-temperature and high-temperature circuits with ease.
The ball and stem seals made of PTFE enhance durability and smooth operation of the lever handle, and the gland packing maintains tightness over time. Advanced Body Technology and multi-stage quality control underpin long-term reliability, confirmed by the F-POWER series being awarded the Gold Emblem Quality International 2021. The nut–male connection simplifies installation in existing pipework.
Interchangeable marking bands for hot/cold or supply/return lines and informative tags under the handle support clear identification during installation and service, while retail-ready packaging with a barcode streamlines stock handling. This premium ball valve is a solid choice wherever dependable flow control and professional-grade performance are required.
- Additional features:
- CW617N-4MS brass - reduced lead and nickel content
- Maximum operating temperature [°C]:
- 120
- Nominal pressure [bar]:
- 30
- Maximum operating pressure [bar]:
- 30
- Minimum operating temperature [°C]:
- -30
- Barcode:
- bar code packaging for retail sale
- Connection type:
- screw in/screw out
- Ball valve ball material :
- brass
- Type of holder:
- lever
- Gland:
- yes
- NICKEL FREE:
- yes
- Full bore:
- yes
- For multi-layer pipes:
- no
- Drain nozzle:
- no
- Suction strainer:
- no
- Air vent:
- no
- Ball sealing material :
- PTFE
- Material of stem seal:
- PTFE
- Media:
-
- 50% glycol
- compressed air
- water
- Body material/assembly material:
- brass
