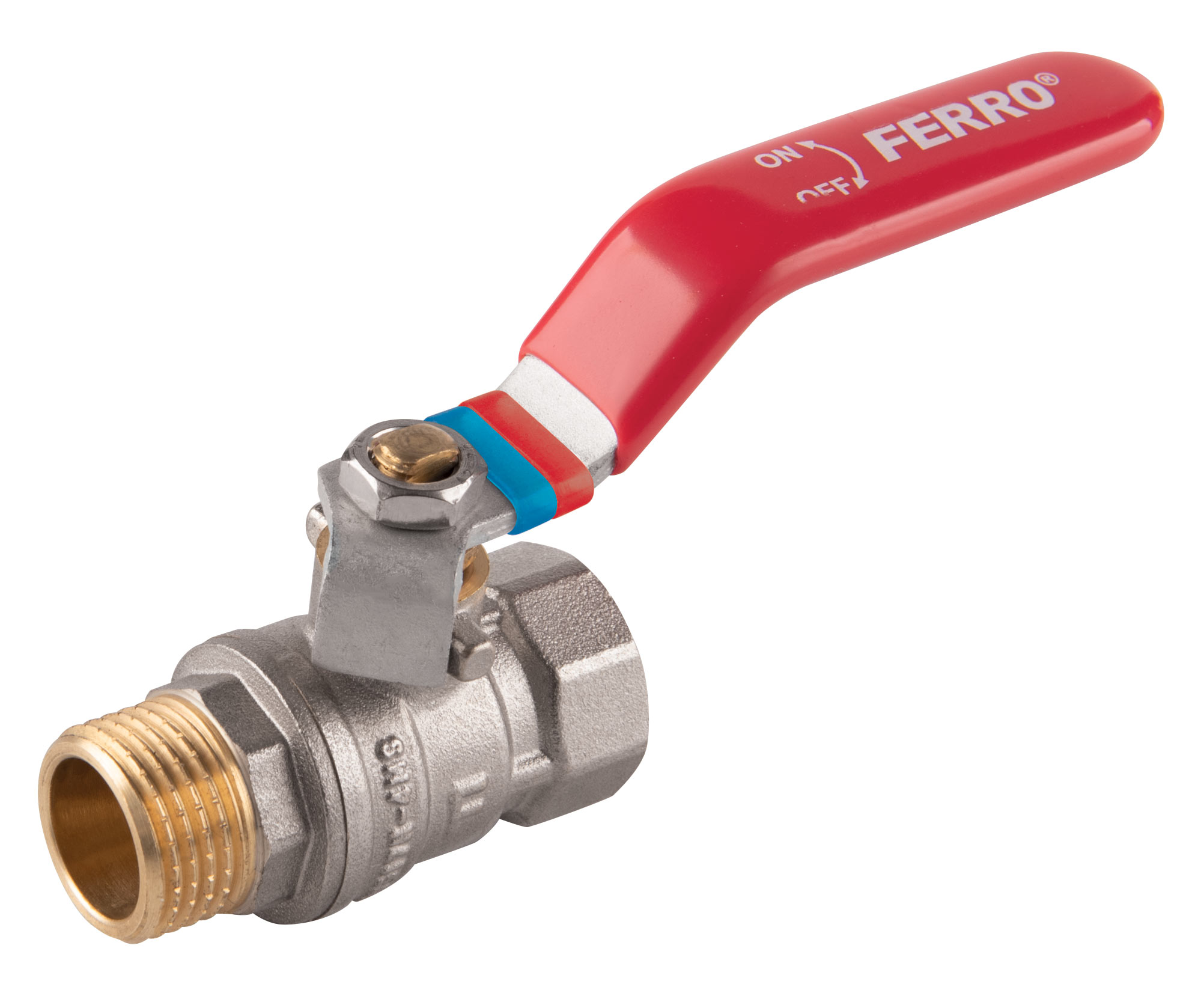

Ball valve, lever handle, 3/4" M-F, F-Comfort
F-COMFORT
Ball valve with lever handle from the F-COMFORT collection is a robust ball valve for water installations, designed for reliable shut-off and control in domestic systems. The nut–male connection with G3/4 thread and DN 20 passage fits standard plumbing layouts and supports precise flow management.
The brass body with CW617N-4MS alloy and reduced lead and nickel content is suitable for contact with water, while the Nickel Free design keeps all wetted surfaces free from nickel. A brass ball with PTFE seals and a stem sealed with PTFE work stably at operating pressures up to 20 bar and temperatures up to 100°C, with a Kvs of 10.94 m³/h for efficient water flow.
The valve is engineered with Advanced Body Technology for long-term durability, and the lever handle offers quick, intuitive operation even in tight spaces. Interchangeable marking bands for hot/cold water or supply/return lines, together with informative tags under the handle, support clear identification during installation and later service.
This premium plumbing valve, awarded the Gold Medal at the Installation 2020 fair, is supplied in retail-ready packaging with a barcode and is an excellent choice wherever dependable water control, easy installation, and professional system labelling are expected.
- Additional features:
- CW617N-4MS brass - reduced lead and nickel content
- Maximum operating temperature [°C]:
- 100
- Nominal pressure [bar]:
- 20
- Maximum operating pressure [bar]:
- 25
- Barcode:
- bar code packaging for retail sale
- Connection type:
- screw in/screw out
- Ball valve ball material :
- brass
- Type of holder:
- lever
- Gland:
- yes
- NICKEL FREE:
- yes
- For multi-layer pipes:
- no
- Drain nozzle:
- no
- Suction strainer:
- no
- Air vent:
- no
- Full bore:
- no
- Rosette included:
- no
- Built-in filter:
- no
- Ball sealing material :
- PTFE
- Material of stem seal:
- PTFE
- Body material/assembly material:
- brass
- Media:
- water
