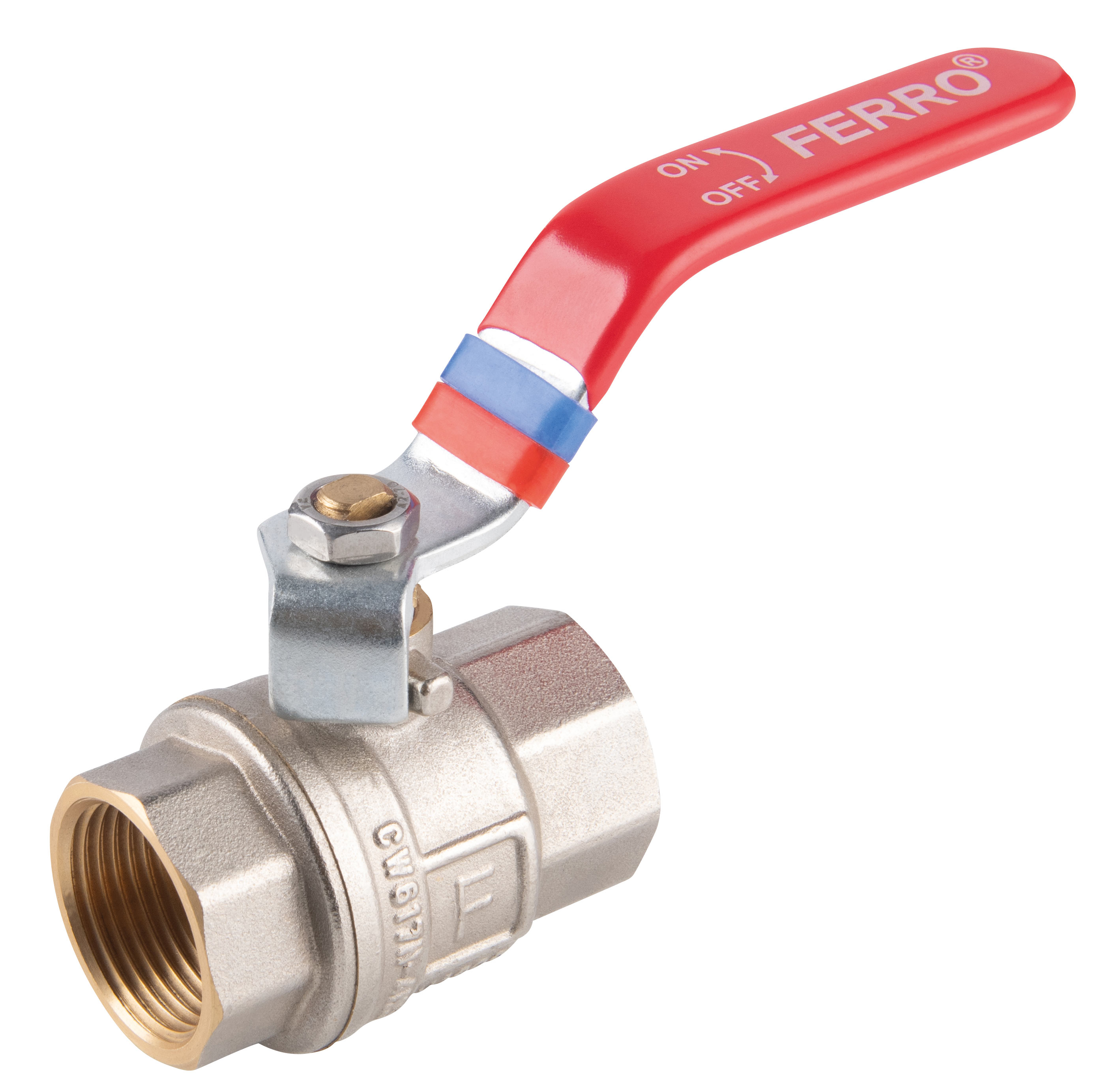

Ball valve, lever handle, 3/4" F-F, F-Power
F-POWER
The nut-to-nut ball valve with lever from the F-POWER collection is a robust component for demanding water, glycol and compressed air installations. The full-bore design supports high flow rates, and the compact 129 x 74 x 37 mm body fits well in both residential and technical rooms.
The valve reaches a flow coefficient of 15.6 m³/h and operates at pressures up to 30 bar and temperatures from -30 to 120°C, so it performs reliably in both heating and cooling systems. The DN20, 3/4" connections match common pipework, while the flow class A supports efficient operation of the installation.
The body and ball are made of CW617N-4MS brass with reduced lead and nickel content, resistant to corrosion and mechanical wear. Nickel-free internal surfaces suit sensitive applications, and PTFE seals on the ball and stem enhance tightness and smooth operation. The nut-to-nut connection and lever handle simplify installation and daily use.
Innovative identification bands for hot/cold or supply/return lines and informative tags under the handle help organize complex systems, while Advanced Body Technology and multi-stage quality control underline the premium character of this F-POWER valve, distinguished with the Quality International 2021 Gold Emblem.
- Additional features:
- CW617N-4MS brass - reduced lead and nickel content
- Maximum operating temperature [°C]:
- 120
- Width [mm]:
- 129
- Nominal pressure [bar]:
- 30
- Maximum operating pressure [bar]:
- 30
- Minimum operating temperature [°C]:
- -30
- Barcode:
- bar code packaging for retail sale
- Type of holder:
- lever
- Gland:
- yes
- NICKEL FREE:
- yes
- Full bore:
- yes
- Connection type:
- screw out-screw out
- For multi-layer pipes:
- no
- Drain nozzle:
- no
- Suction strainer:
- no
- Air vent:
- no
- Ball sealing material :
- PTFE
- Material of stem seal:
- PTFE
- Media:
-
- 50% glycol
- compressed air
- water
- Body material/assembly material:
- brass
