Ball valve, butterfly handle, 1/2" M-F , F-Power
F-POWER

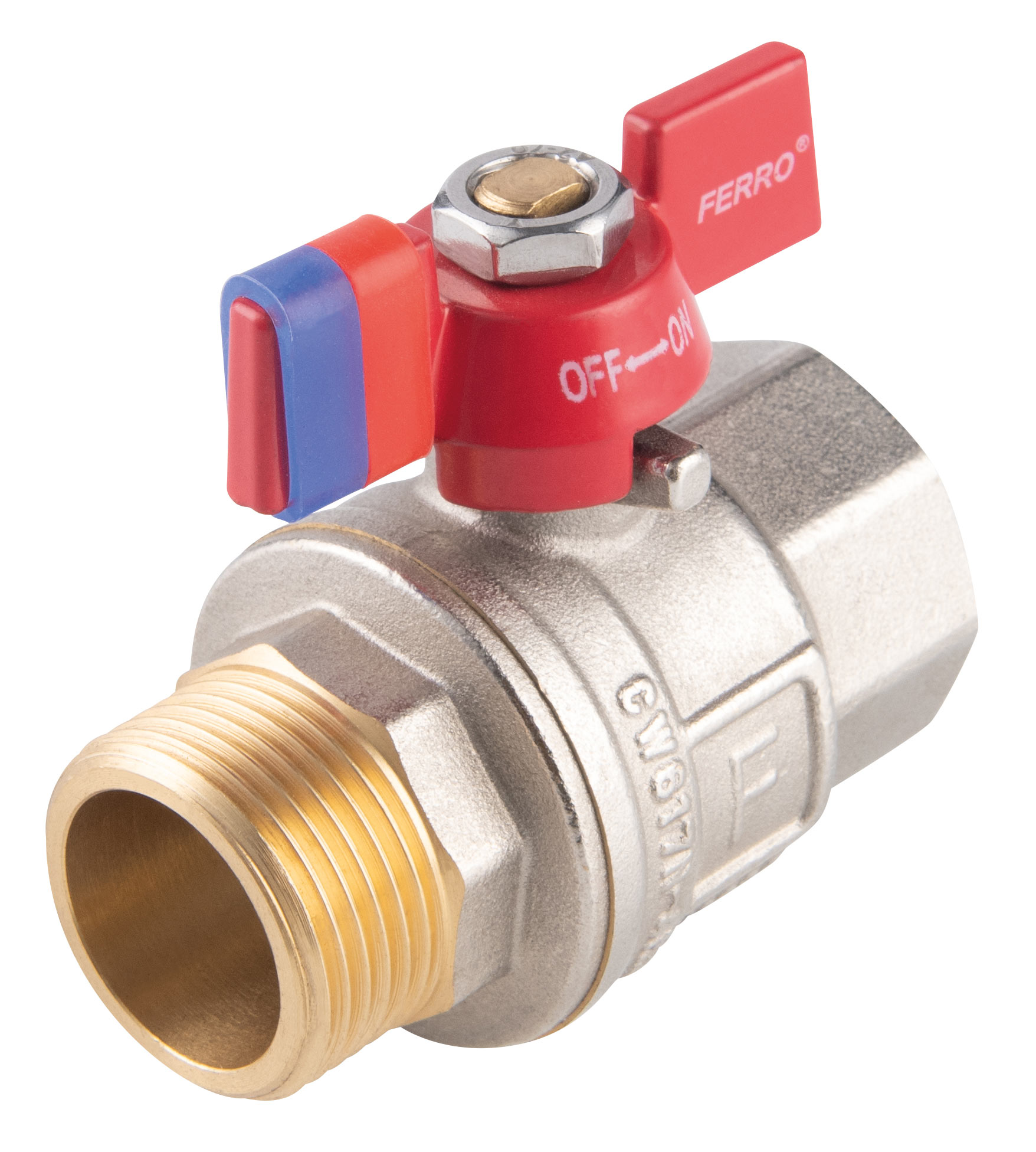

The nut–nipple ball valve with butterfly handle from the F-POWER collection is a robust component for professional water, glycol and compressed air installations. With a full-bore DN 15 passage and a flow coefficient Kvs of 7.29 m³/h, it supports efficient medium transfer in both domestic and technical systems.
The durable body made of CW617N-4MS brass with reduced lead and nickel content suits demanding applications, while the brass ball with PTFE seals maintains smooth operation under working pressure up to 25 bar and temperatures from -30°C to 120°C. Nickel-free internal surfaces support safer contact with the medium, and the integrated gland enhances tightness over long-term use.

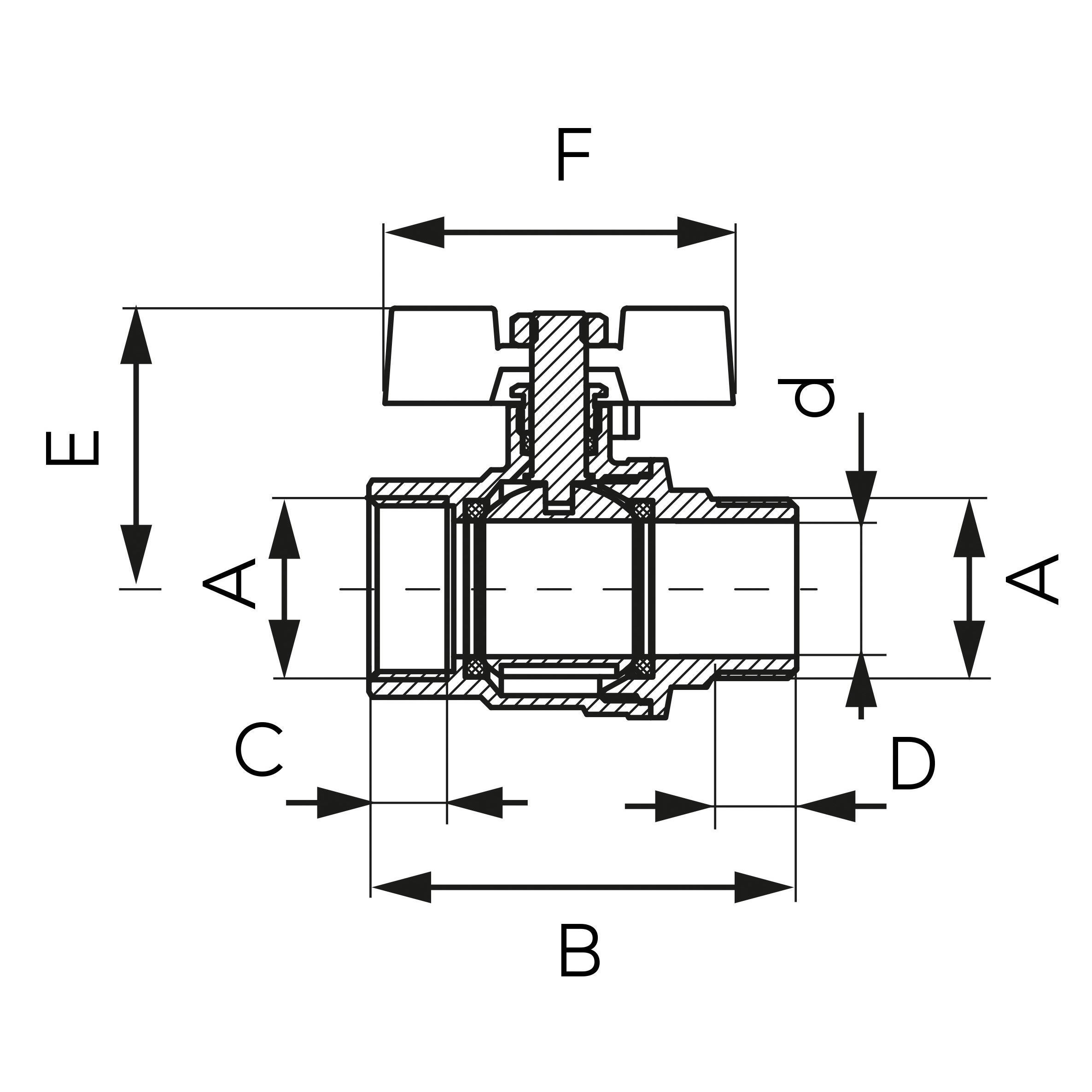

The nut–nipple connection G1/2 simplifies installation in standard pipework, and compact dimensions of 59 x 54 x 31 mm fit confined spaces in plant rooms or behind fixtures. Interchangeable identification bands for hot/cold water or supply/return, together with tag-style labels under the handle, help keep complex installations clearly organized.
Developed with Advanced Body Technology and subjected to multi-stage quality control, this F-POWER ball valve, distinguished with the Quality International 2021 Gold Emblem, is a reliable choice wherever durable, premium-grade installation fittings are required.
- Additional features:
- CW617N-4MS brass - reduced lead and nickel content
- Maximum operating temperature [°C]:
- 120
- Maximum operating pressure [bar]:
- 25
- Nominal pressure [bar]:
- 30
- Minimum operating temperature [°C]:
- -30
- Width [mm]:
- 59
- Barcode:
- bar code packaging for retail sale
- Connection type:
- screw in/screw out
- Ball valve ball material :
- brass
- Type of holder:
- butterfly
- Gland:
- yes
- NICKEL FREE:
- yes
- Full bore:
- yes
- For multi-layer pipes:
- no
- Drain nozzle:
- no
- Suction strainer:
- no
- Air vent:
- no
- Ball sealing material :
- PTFE
- Material of stem seal:
- PTFE
- Media:
-
- 50% glycol
- compressed air
- water
- Body material/assembly material:
- brass
