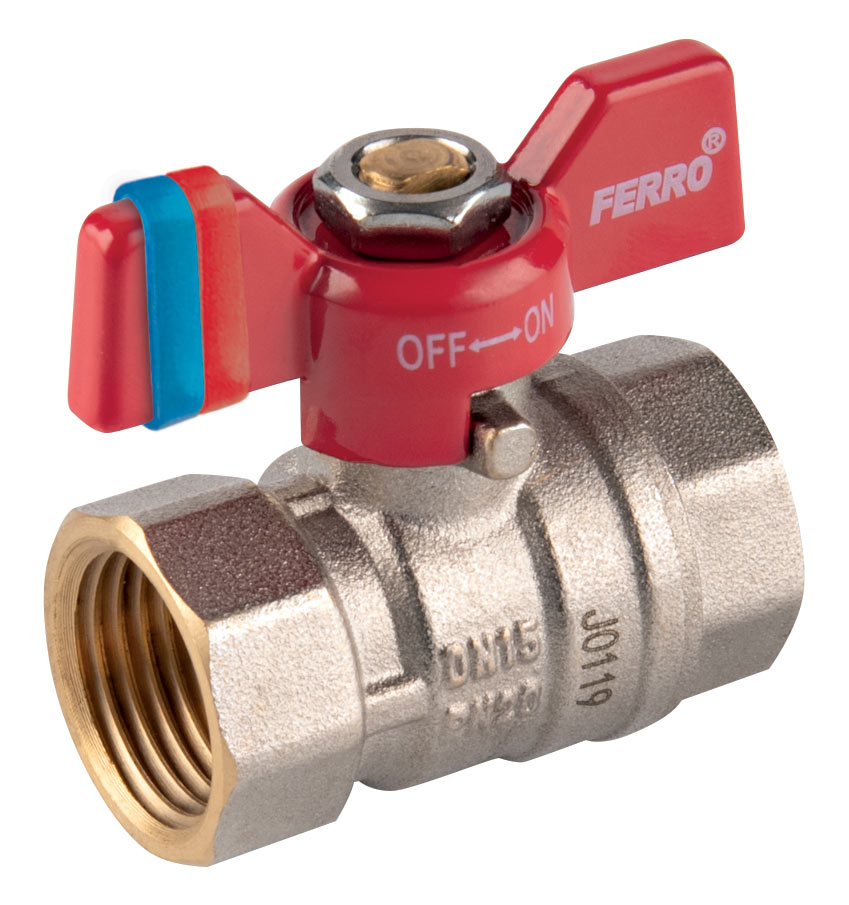

Ball valve, butterfly handle, 1/2" F-F, F-Comfort
F-COMFORT
The nut-to-nut ball valve with butterfly handle from the F-COMFORT collection is a precise component for water installations, designed for reliable shut-off and control in domestic systems. Compact dimensions with DN 15 and 1/2" connections fit standard plumbing layouts and support neat, organized pipe runs.
The brass body with a flow coefficient of 5.34 m³/h supports efficient water flow in everyday use, while the integrated gland enables stable operation and convenient regulation. The valve works at pressures up to 20 bar and temperatures up to 100°C, so it performs well both in cold and hot water lines in residential installations.
The durable body is made of CW617N-4MS brass with reduced lead and nickel content, suitable for contact with water, and the brass ball with PTFE seals maintains smooth movement over time. Nickel free internal surfaces reduce the risk of nickel release, and PTFE stem seals help maintain tightness without frequent maintenance. The nut-to-nut connection simplifies assembly and disassembly during service.
Innovative identification bands for hot/cold or supply/return lines and informative hanging tags under the handle support clear labelling of the installation, thanks to which service work becomes faster and less error-prone. Designed with Advanced Body Technology and awarded the Gold Medal at the 2020 Installation Fair, this ball valve is a premium choice for installers seeking durable, user-friendly plumbing fittings.
- Additional features:
- CW617N-4MS brass - reduced lead and nickel content
- Maximum operating temperature [°C]:
- 100
- Nominal pressure [bar]:
- 20
- Maximum operating pressure [bar]:
- 20
- Barcode:
- bar code packaging for retail sale
- Ball valve ball material :
- brass
- Type of holder:
- butterfly
- Gland:
- yes
- NICKEL FREE:
- yes
- Connection type:
- screw out-screw out
- For multi-layer pipes:
- no
- Drain nozzle:
- no
- Suction strainer:
- no
- Air vent:
- no
- Full bore:
- no
- Rosette included:
- no
- Built-in filter:
- no
- Ball sealing material :
- PTFE
- Material of stem seal:
- PTFE
- Body material/assembly material:
- brass
- Media:
- water
