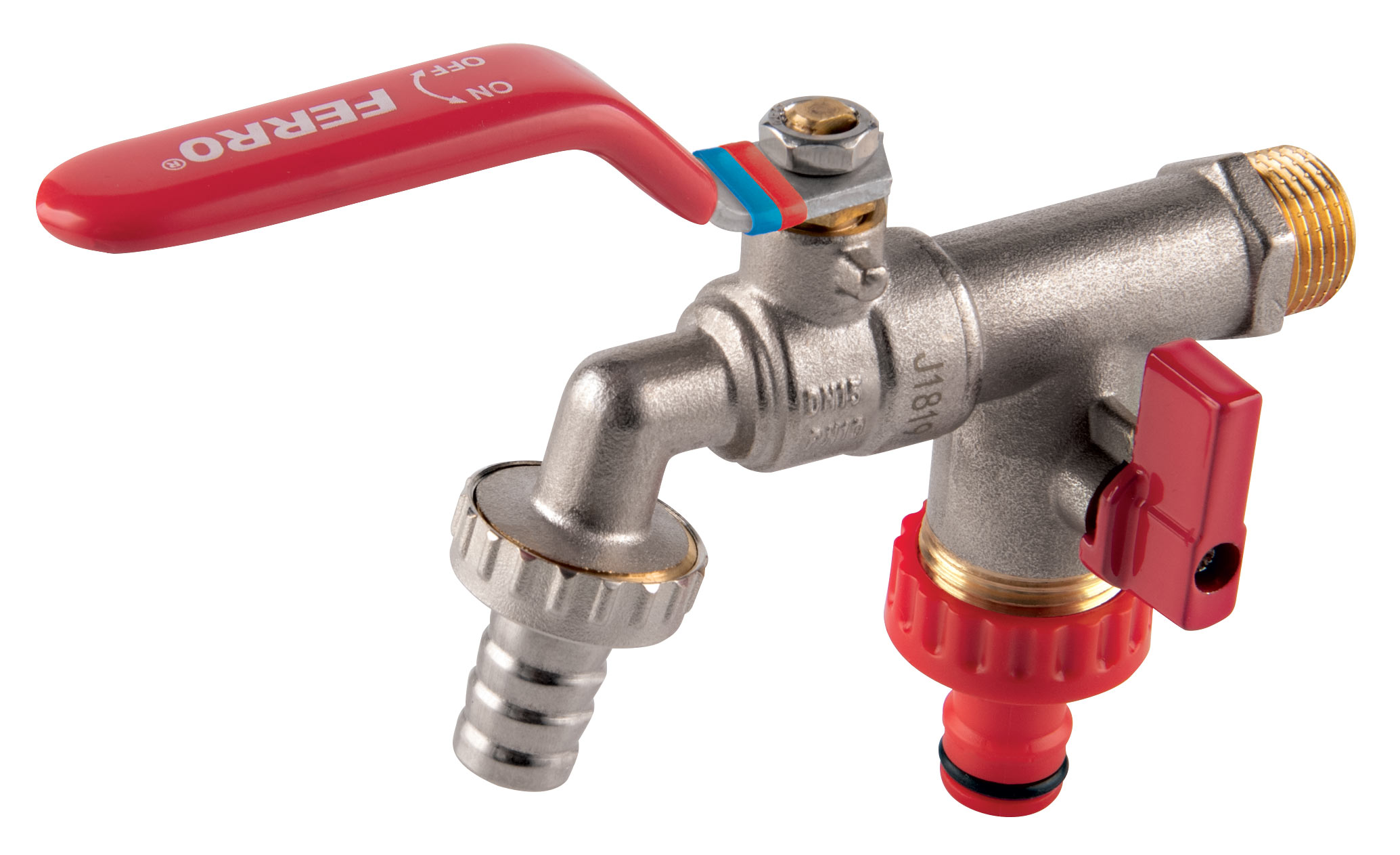

Ball bibcock with two outlets lever handle 1/2" M, F-Comfort
F-COMFORT

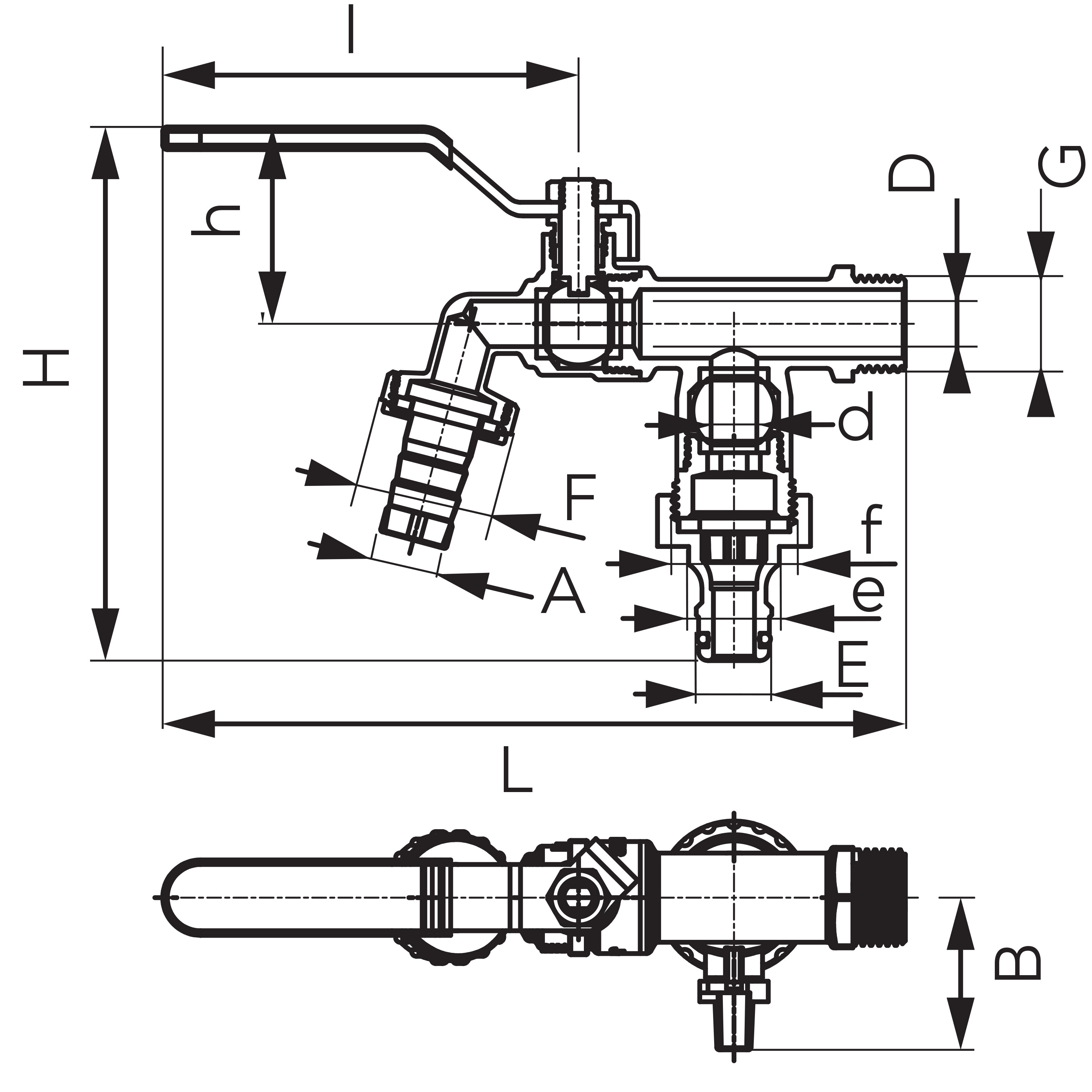

The double-connection draw-off ball valve from the F-COMFORT collection is a practical element for water installations, designed for convenient connection and shut-off in domestic systems. Compact dimensions of 117 x 48 x 161.5 mm make it suitable for tight spaces, while the lever handle offers quick and intuitive operation.
The valve operates safely at a nominal pressure of 10 bar and a working temperature up to 65°C, so it fits typical cold and hot water supply lines. Two threaded connections G1/2 and G3/4 support standard plumbing fittings, and the built-in gland enhances tightness during everyday use. The product has been developed using Advanced Body Technology and distinguished with the Gold Medal of the Installation 2020 trade fair.
The durable body made of CW617N-4MS brass with reduced lead and nickel content is tailored to drinking water systems and resists corrosion in long-term service. Nickel free construction means all media-contact surfaces are not nickel-plated, an advantage for users sensitive to metals. PTFE seals on the ball and stem stabilize operation and help maintain smooth flow control over time.
Interchangeable marking bands for hot/cold or supply/return lines and informative tags under the handle support clear identification during installation and maintenance, thanks to which the ball valve becomes a reliable and user-friendly choice for premium water installations.
- Additional features:
- CW617N-4MS brass - reduced lead and nickel content
- Nominal pressure [bar]:
- 10
- Maximum operating pressure [bar]:
- 10
- Width [mm]:
- 48
- Maximum operating temperature [°C]:
- 65
- Barcode:
- bar code packaging for retail sale
- Connection type:
- screw in
- Ball valve ball material :
- brass
- Type of holder:
- lever
- Gland:
- yes
- NICKEL FREE:
- yes
- For multi-layer pipes:
- no
- Drain nozzle:
- no
- Suction strainer:
- no
- Air vent:
- no
- Full bore:
- no
- Rosette included:
- no
- Built-in filter:
- no
- Ball sealing material :
- PTFE
- Material of stem seal:
- PTFE
- Body material/assembly material:
- brass
- Media:
- water
