Ball bibcock with quick coupling, lever handle 3/4" M
F-COMFORT

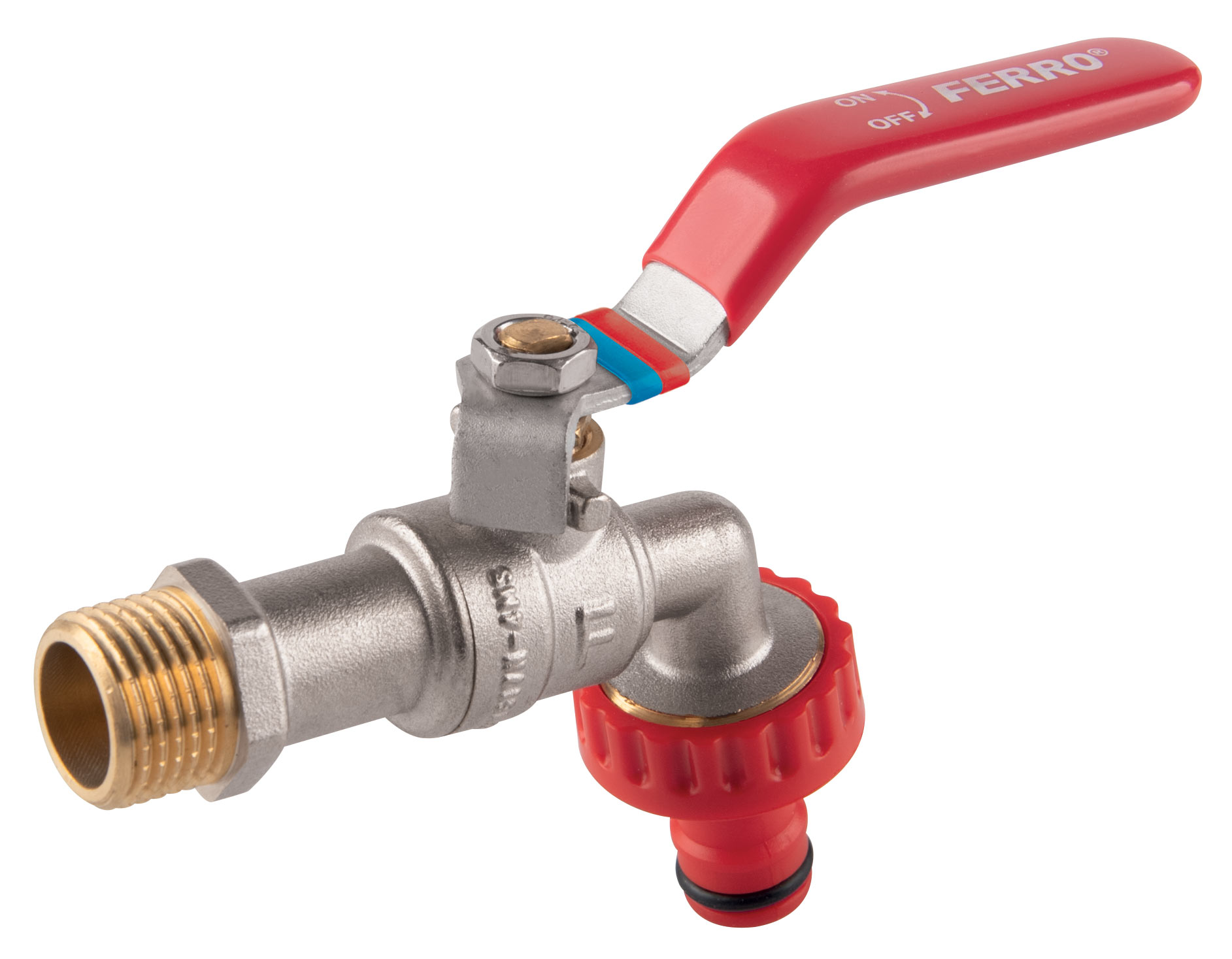

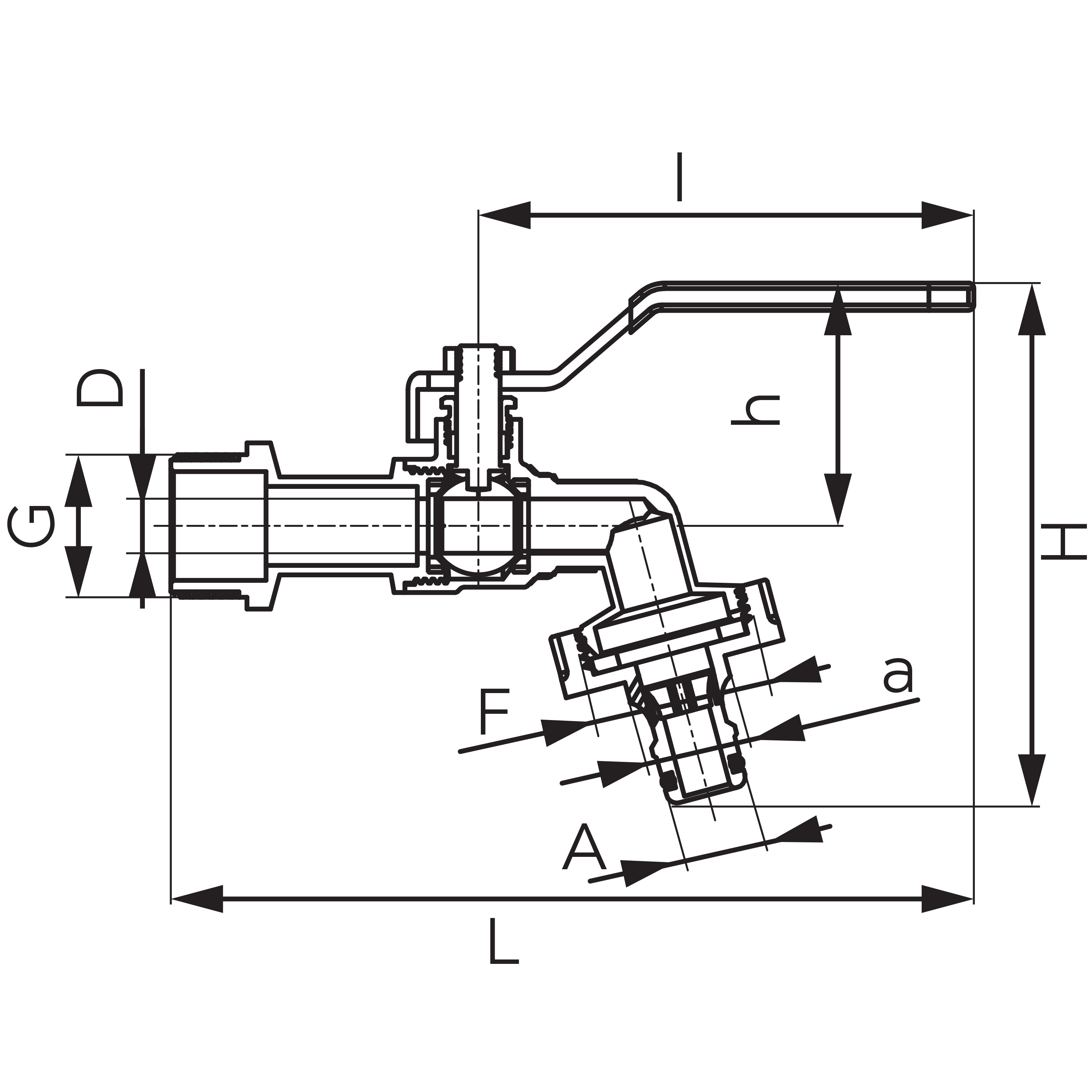

The outdoor ball bibcock with quick plastic connector from the F-COMFORT collection is designed for reliable water draw-off in domestic and garden installations. Compact dimensions with a total length of 146.5 mm and a height of 97 mm fit well in tight spaces, while the G1 x G3/4 threaded connection integrates with standard water systems.
The valve operates safely at up to 10 bar and a working temperature of 65°C, so it performs well in typical cold and moderately warm water applications. A Kvs value of 2.5 m³/h supports efficient water flow, useful for everyday outdoor water supply tasks.
The durable body and ball made of CW617N-4MS brass with reduced lead and nickel content suit drinking water installations, and PTFE seals on both ball and stem enhance resistance to wear. Nickel free internal surfaces protect the medium, while the lever handle offers precise, comfortable operation. The screwed connection simplifies installation in existing pipework.
Advanced Body Technology, practical identification bands for hot/cold or supply/return, and informative hang tags under the handle streamline selection and service, while the product’s Gold Medal at the 2020 Installation Fair confirms its quality for demanding installation projects.
- Additional features:
- CW617N-4MS brass - reduced lead and nickel content
- Nominal pressure [bar]:
- 10
- Maximum operating temperature [°C]:
- 65
- Barcode:
- bar code packaging for retail sale
- Connection type:
- screw in
- Ball valve ball material :
- brass
- Type of holder:
- lever
- Gland:
- yes
- NICKEL FREE:
- yes
- For multi-layer pipes:
- no
- Drain nozzle:
- no
- Suction strainer:
- no
- Air vent:
- no
- Full bore:
- no
- Rosette included:
- no
- Built-in filter:
- no
- Ball sealing material :
- PTFE
- Material of stem seal:
- PTFE
- Body material/assembly material:
- brass
- Media:
- water
