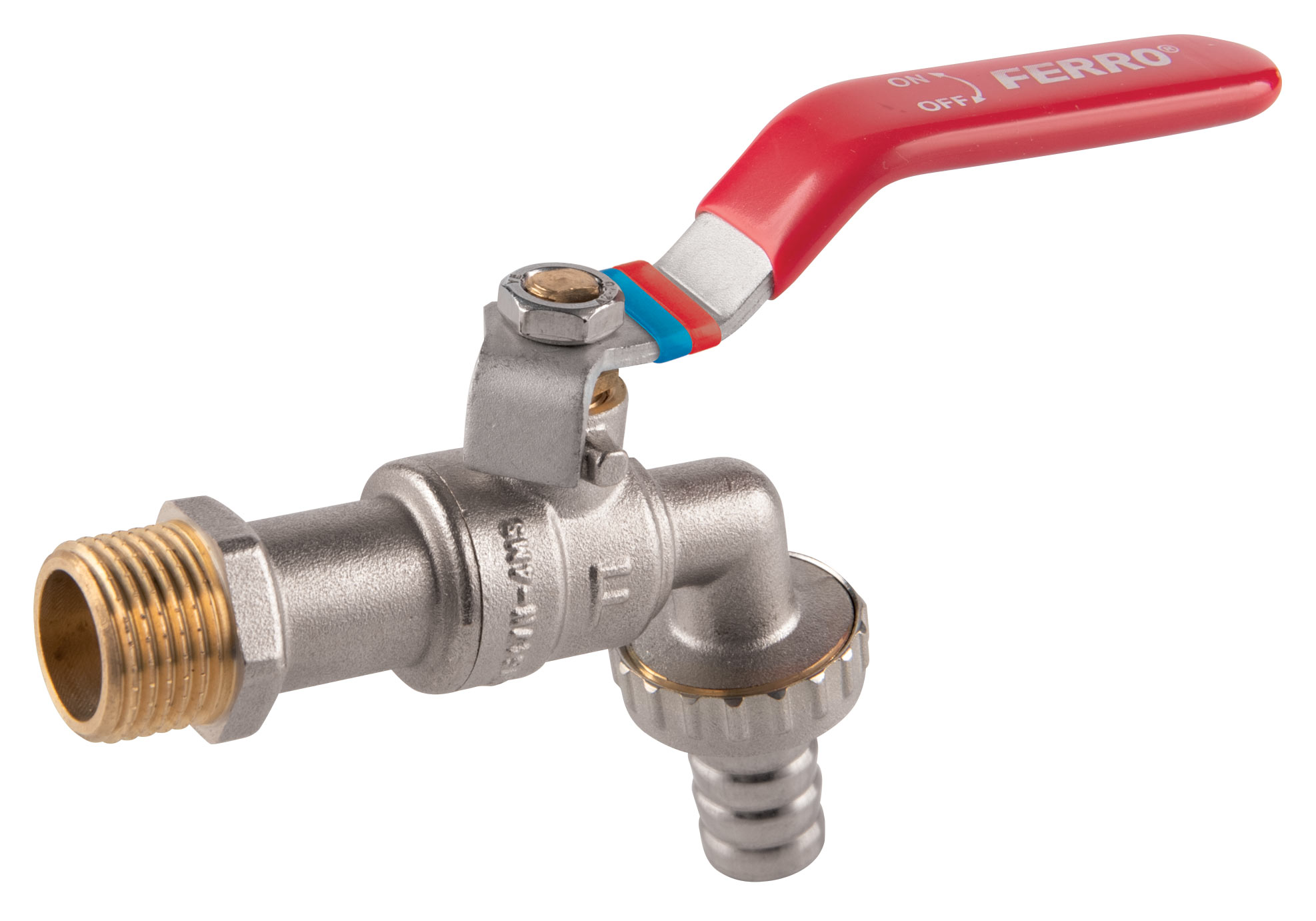

Ball bibcock with metal hose tip, lever handle 1" M
F-COMFORT
The draw-off ball valve with metal connector from the F-COMFORT collection is a robust component for water installations, designed for reliable shut-off and convenient operation in domestic systems. Compact dimensions and a practical lever handle support intuitive use in everyday applications.
The brass body made of CW617N-4MS with reduced lead and nickel content is suitable for contact with water and resists corrosion during long-term service. Nickel free internal surfaces protect the medium from contact with nickel. The valve works with water at pressures up to 10 bar and temperatures up to 100°C, while a Kvs of 8.16 m³/h supports efficient flow control in typical household water supply lines.
The ball and seals made of brass and PTFE form a durable, low-friction shut-off system, and the packed gland design helps maintain tightness over time. The threaded connection with 1" inlet and G1/2 outlet fits standard plumbing fittings, so integration with existing pipework proceeds smoothly. Advanced Body Technology enhances internal geometry and flow characteristics, valued by professional installers.
Interchangeable marking bands for hot/cold or supply/return lines and informative hang tags under the handle simplify identification during installation and service, while barcode-labelled packaging supports retail sales. Awarded the Gold Medal at the 2020 Installation Fair, this draw-off ball valve is a dependable choice wherever consistent performance and professional-grade fittings are required.
- Additional features:
- CW617N-4MS brass - reduced lead and nickel content
- Nominal pressure [bar]:
- 10
- Maximum operating temperature [°C]:
- 100
- Barcode:
- bar code packaging for retail sale
- Connection type:
- screw in
- Ball valve ball material :
- brass
- Type of holder:
- lever
- Gland:
- yes
- NICKEL FREE:
- yes
- For multi-layer pipes:
- no
- Drain nozzle:
- no
- Suction strainer:
- no
- Air vent:
- no
- Full bore:
- no
- Rosette included:
- no
- Built-in filter:
- no
- Ball sealing material :
- PTFE
- Material of stem seal:
- PTFE
- Body material/assembly material:
- brass
- Media:
- water
