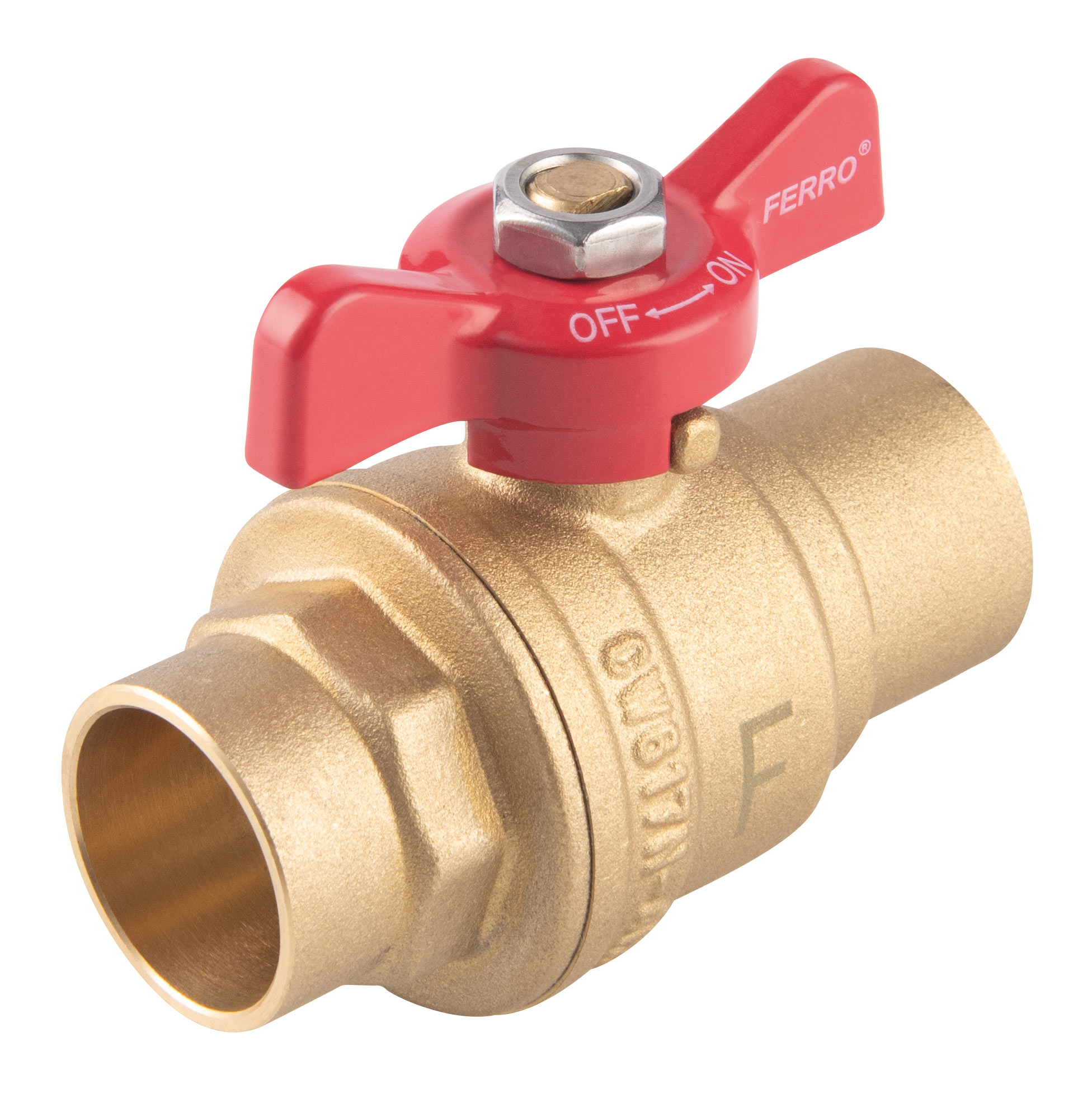

F-Power - ball valve for soldering

F-Power - ball valve for soldering

F-Power - ball valve for soldering

Code: KFPL

Download PDF file with card product

Available while stock lasts
warranty: 10 years
application: water, glycol 50%, compressed air
with gland
full bore
handle: butterfly
body and ball material: brass
material of ball and stem seals: PTFE
nominal pressure: 16 bar (PN16)
maximum working temperature: 120°C
NICKEL FREE - inner surfaces are not nickel-plated
CW617N-4MS brass - reduced lead and nickel content

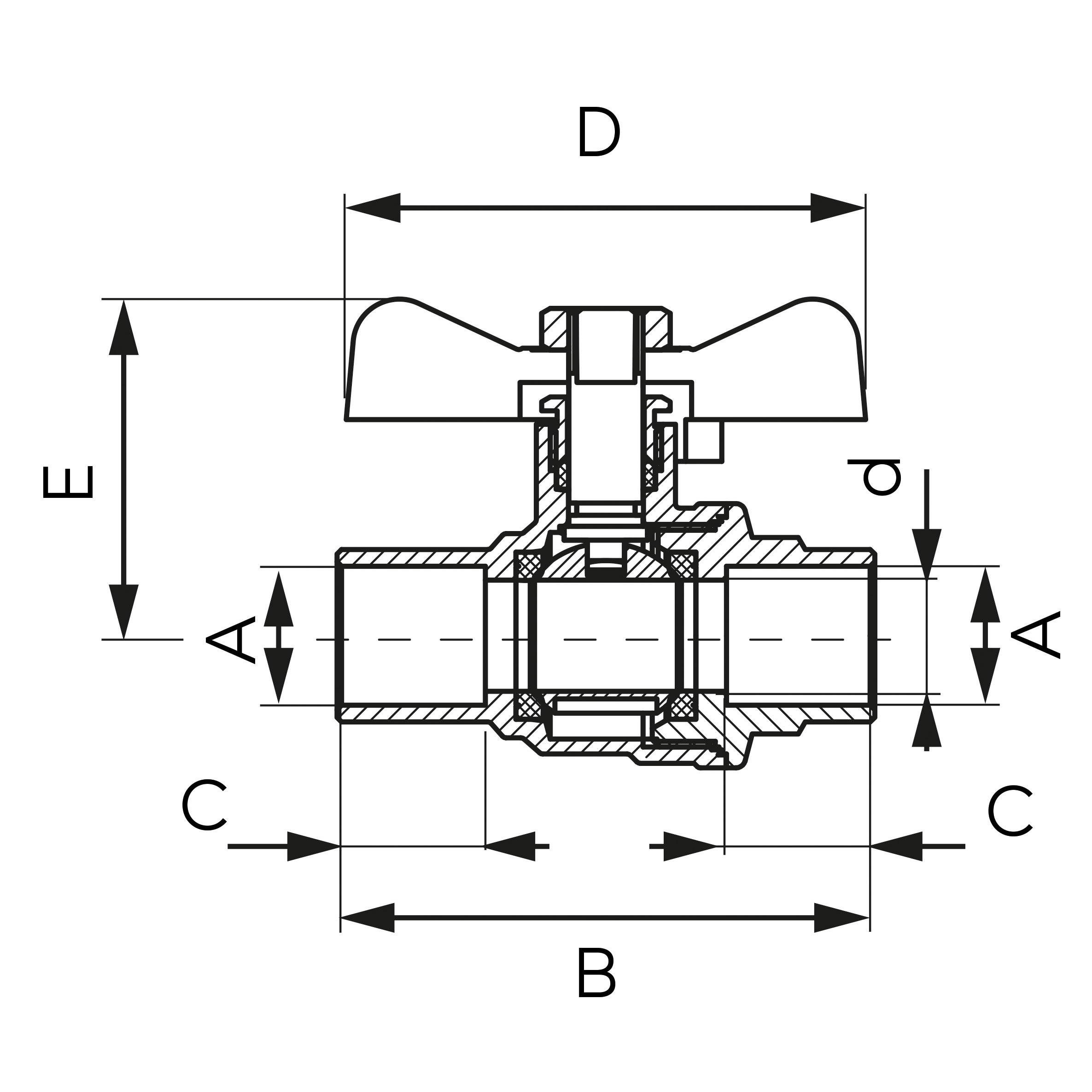

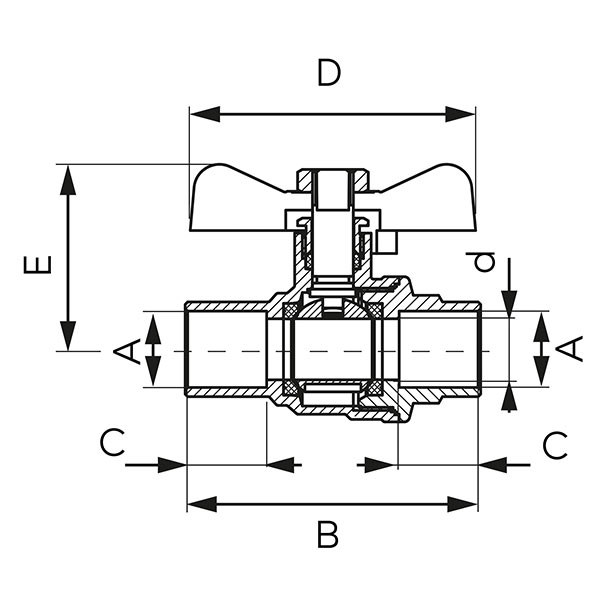

Code	DN	A	d [mm]	B [mm]	C [mm]	D [mm]	E [mm]	Kvs [m3/h]	Individ. pack.	Collect. pack.
KFPL11	10	12	10	52	14	56	33	3,87	20	200
KFPL21	15	15	12	58	16	56	36	5,24	15	150
KFPL31	15	18	15	60	16	56	38	6,83	16	96
KFPL41	20	22	20	71	18	56	42	12,64	12	60
