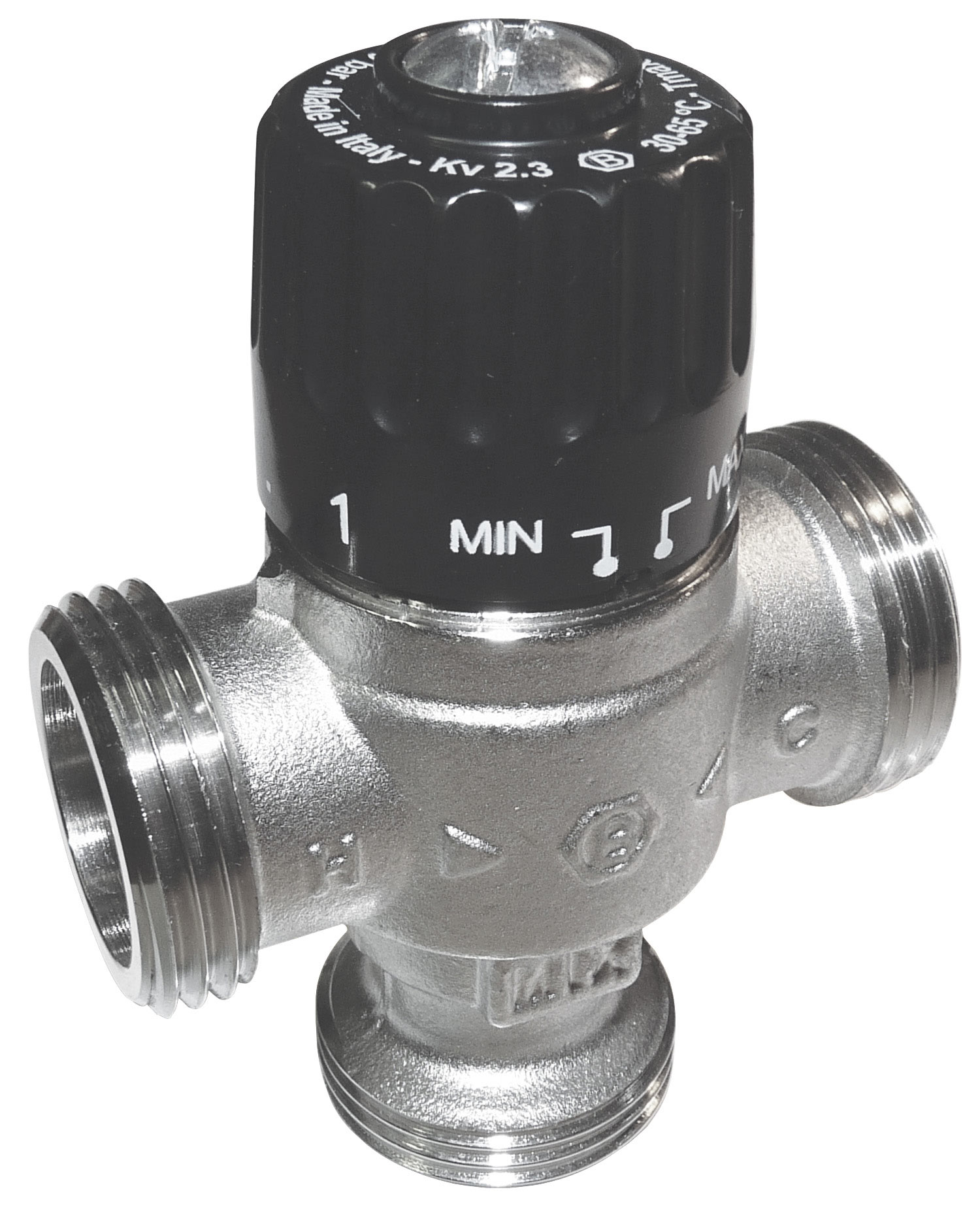

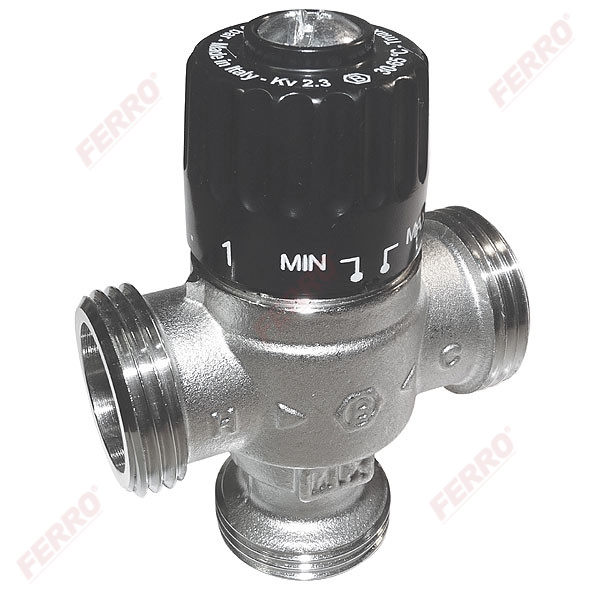

Thermostatic mixing valve

Individual packaging: 1
with a barcode for retail sale

Collective packaginig: 1

Download PDF file with card product

• Kv = 2.3 m³/h
• equipped with scalding protection
• regulation range: 30°C - 65°C
• max. working temperature: 90°C
• max. static pressure: 1.0 MPa (10 bar)
• accuracy of adjustment: ± 2°C
