DHW circulation pump 25-40-130

Application area:: only for drinking water
Capacity [m³/h]:: 0,2-3,5
Maximum operating pressure [bar]:: 10
Connection spacing [mm]:: 130
Temperature of liquid [°C]:: +2 - +110
Ambient temperature [°C]:: +2 - +40
Model:: 25-40 130
Power consumption [W]:: 35/45/65
Maximimum lifting height [m]:: 3,8
Voltage:: 50-60 Hz, ~230V
Installation:: with shaft axis in horizontal position and terminal box positioned freely, but not underneath the pump
Barcode:: bar code packaging for retail sale
Connection:: G1 1/2
Insulation class:: H
Safety class:: IP 44
Connection type:: 6/4"
Media:: water

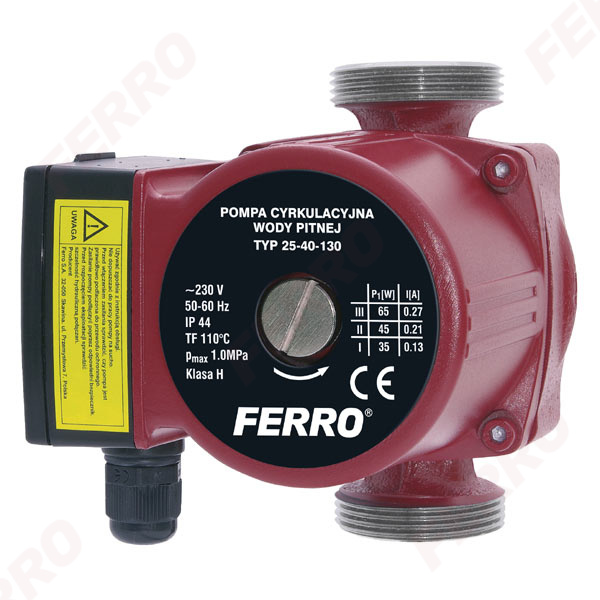

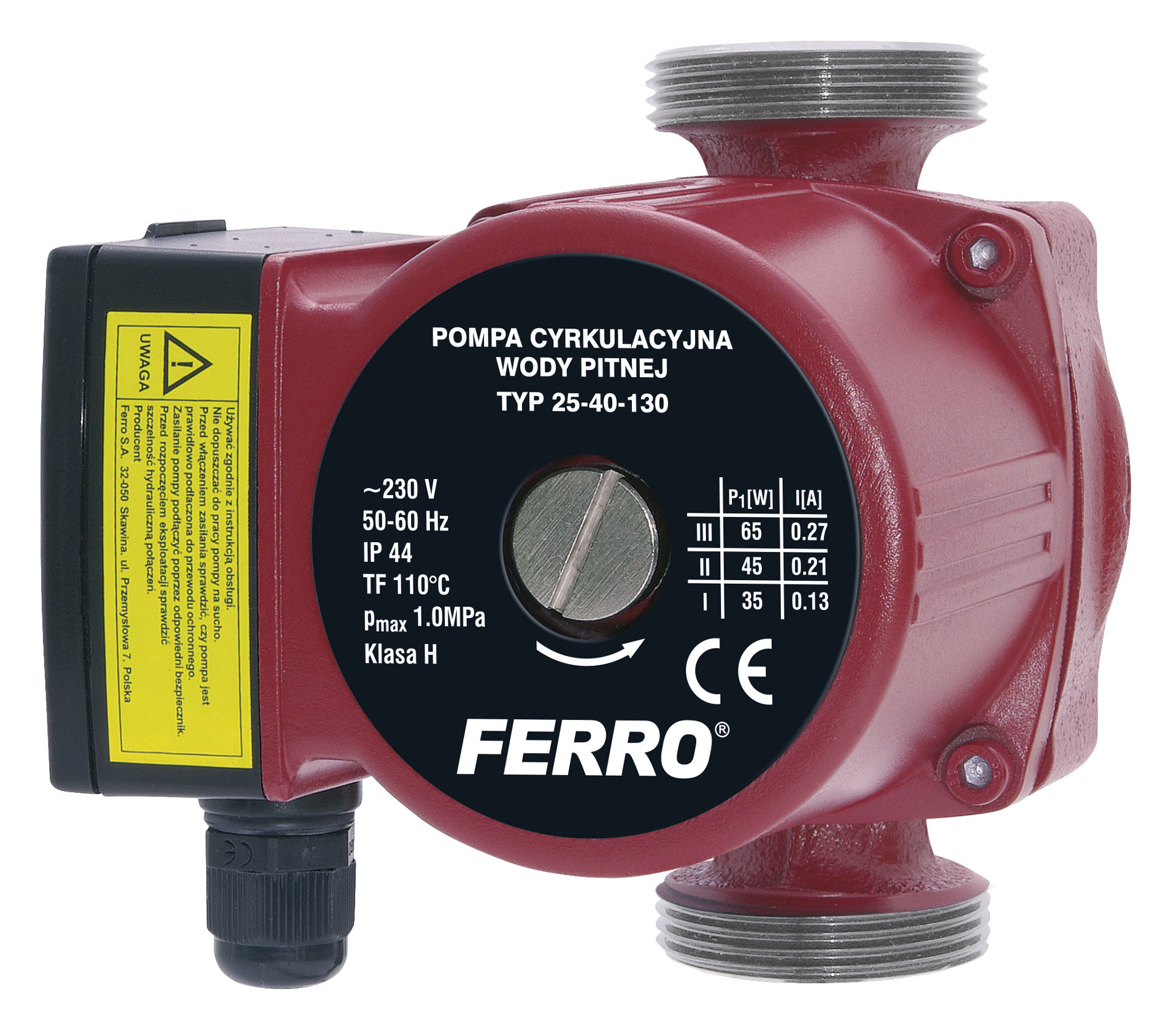

Product Photos

ferro_0203w_pp_01.jpg Download File

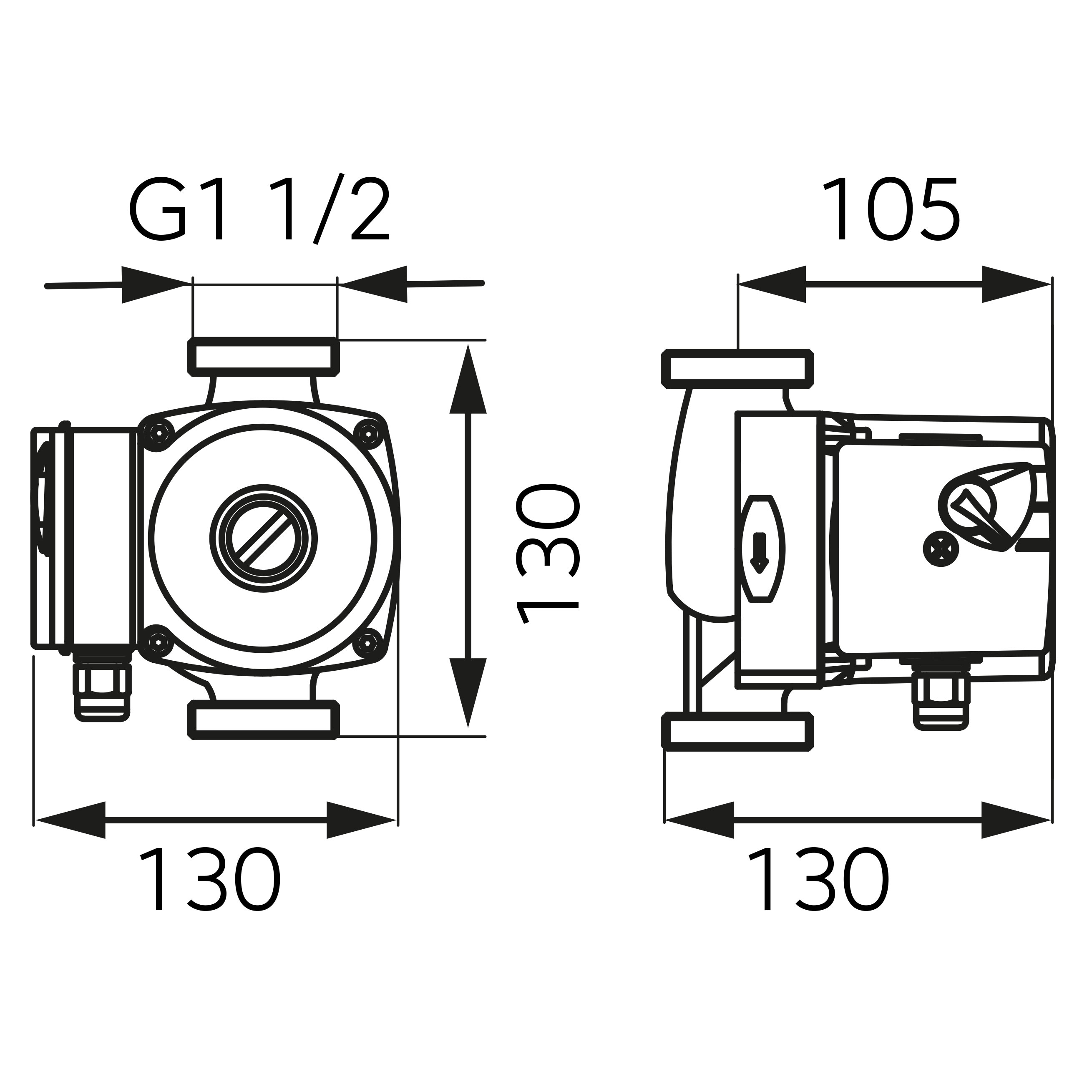

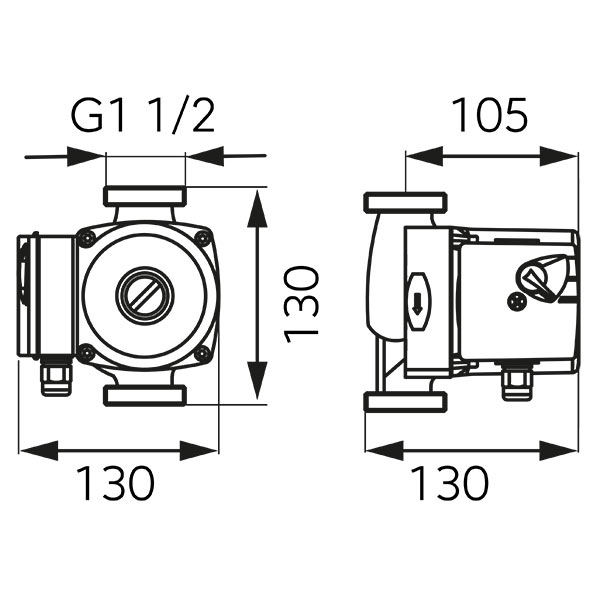

Technical Drawings

ferro_0203w_dim_01.jpg Download File

Declarations

dz_0006-2.pdf Download File

Certificates and Attests

pzh_b-bk-60110-0705-2026.pdf Download File

Warranty

ferro_circulators_all_26-05-19-07-50.pdf Download File

Assembly Instructions

ferro_manual_gpd_pumps.pdf Download File

Leaflets and catalogues

2026_en_plumbing_offer_catalog_web.pdf Download File
