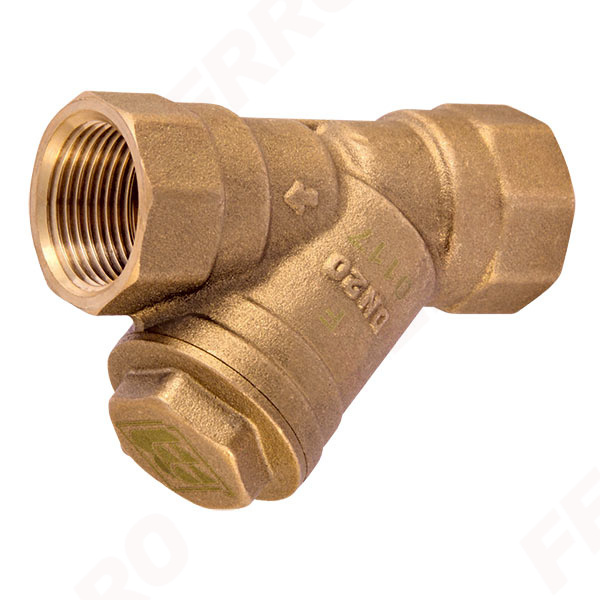

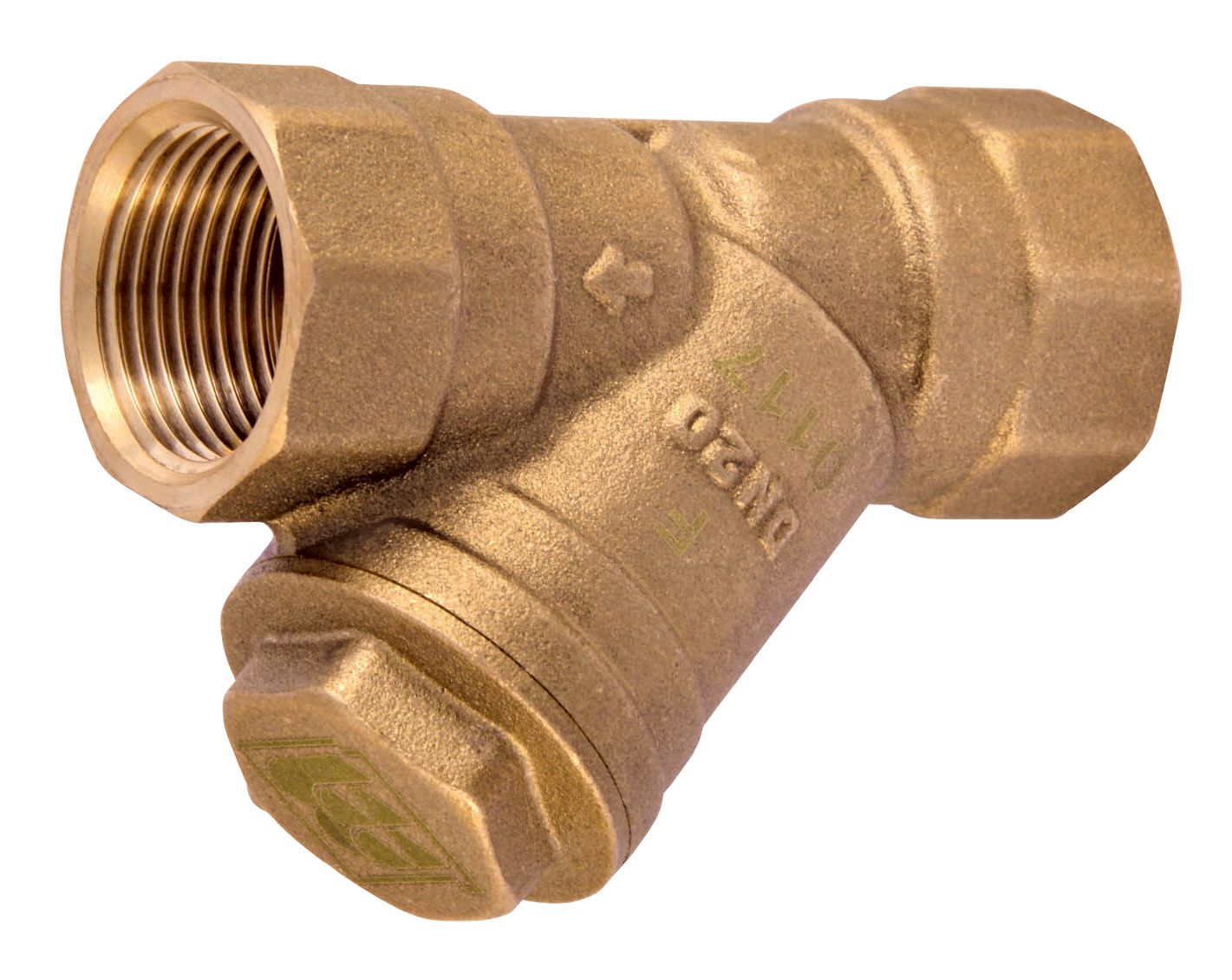

Mesh gas filter - type G41

Mesh gas filter - type G41

Mesh gas filter - type G41

Code: F

Download PDF file with card product

female - female
body and plug material: high quality CW617N brass
plug sealing: NBR
filter cartridge: AISI 304 stainless steel
filter cartridge hole diameter: 0.2 ± 0.02 mm
max. working pressure: MOP 5 (0.5 MPa)
working temperature: T2 (-20°C to 60°C)

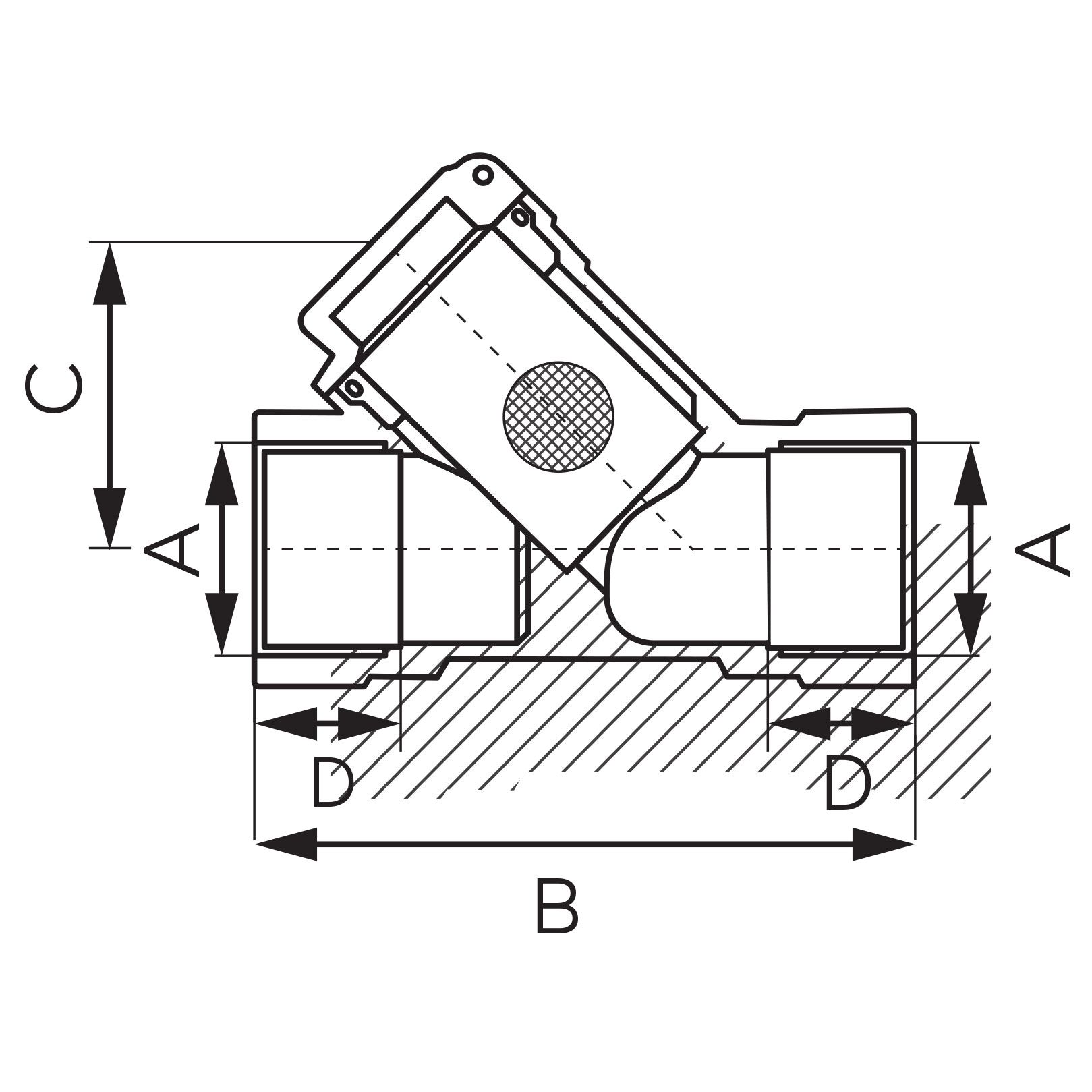

Code	Size of connectors	DN	A	B [mm]	C [mm]	D [mm]	Individ. pack.	Collect. pack.
F2G	1/2”	15	Rp 1/2	67	33,6±1	min. 15,0	12	108
F3G	3/4"	20	Rp 3/4	80	37,5±1	min. 16,3	8	72
F6G	1”	25	Rp 1	85	45,6±1	min. 19,1	6	54
F4G	5/4”	32	Rp 5/4	98	54,8±1	min. 21,4	2	18
F5G	6/4”	40	Rp 6/4	116	58,7±1	min. 21,4	2	18
F7G	2”	50	Rp 2	136	70,7±1	min. 25,7	2	12
